Permobil F3 Corpus - Page 75

F3 Corpus
Getting to know your wheelchair
3.5.1.3 Jack sockets

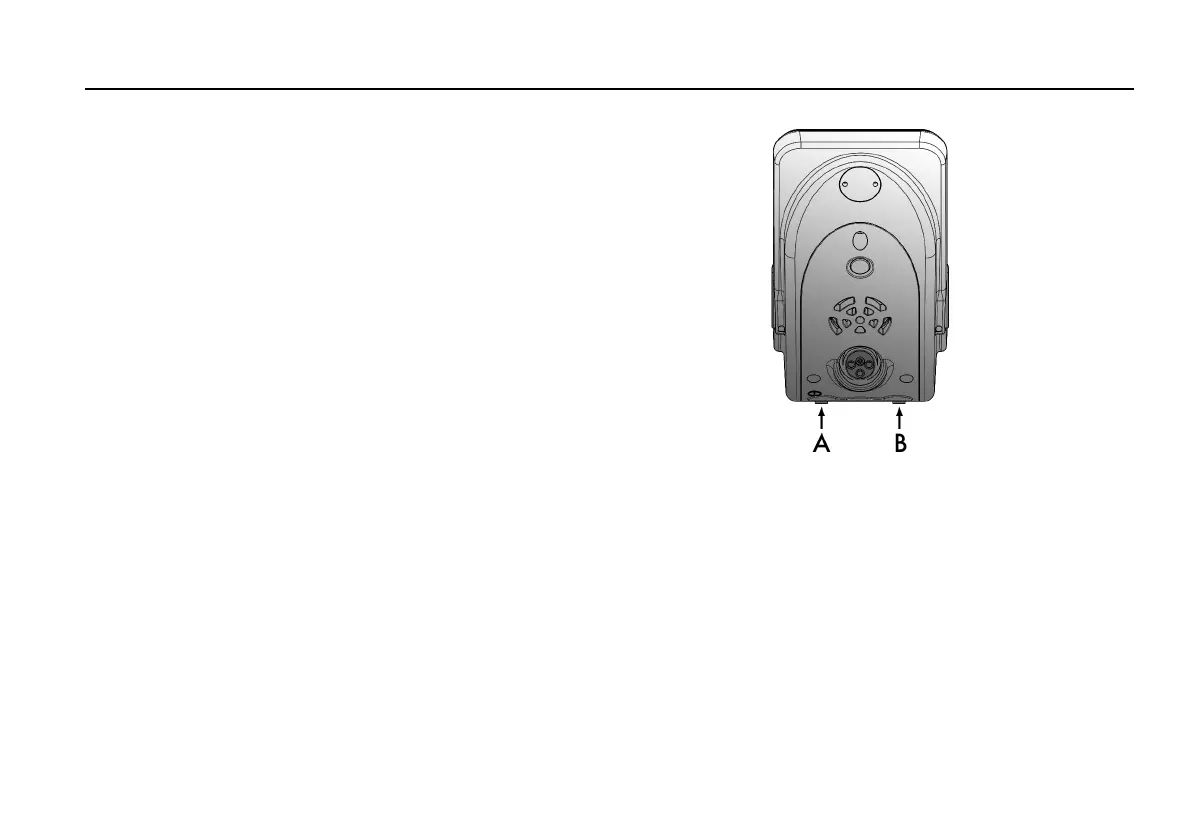

Figure 40. Jack sockets
The external On/Off switch jack (A) allows the user to turn the
control system on or off using an external device such as a buddy
button.
The external profile switch jack (B) allows the user to select profiles
using an external device, such as a buddy button. To change the
profile while driving, simply press the button.
3.5.1.4 Display
The status of the control system can be understood by observing the
display. The control system is on when the display is backlit.
75
