PART 4: CONTROLS AND DISPLAYS
PB1319 (CAT. NO. 5296 ) —13— 22-01691 (R02/02)

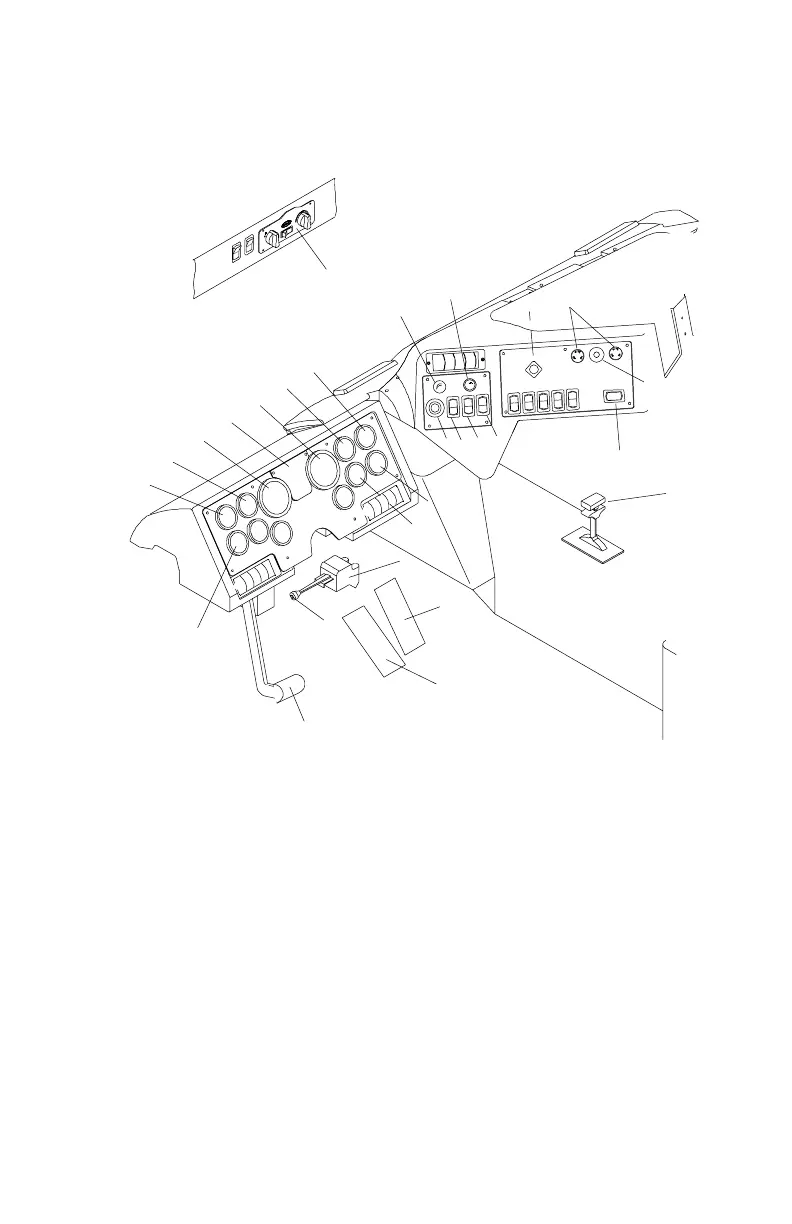

Typical Instruments & Controls: Left-Hand Drive Station
LEFT SIDE
1. Turn Signal/Hazard Flasher 15. Panel Light Knob
2. Accelerator Pedal 16. Speedometer w/ Message
3. Brake Pedal Center (SMC)
4. High Beam Switch 17. Primary Air Pressure
5. Clutch Pedal 18. Fuel
6. Ignition Key Switch 19. Transmission Oil Temperature
7. Clearance Lamps Switch 20. Secondary Air Pressure
8. SMC Select/Reset Switch 21. Gearshift or Shift Selector
9. Headlight Switch 22. Heater Control Panel
10. Voltmeter 23. Cigar Lighter
11. Engine Oil Pressure 24. Interaxle Differential Lock
12. Engine Coolant Temperature 25. Parking Brake Valve
13. Tachometer 26. Windshield Wiper Valves
14. LED Warning Light Bar 27. Windshield Washer Switch
24
1
2
3
4
5
6
8
9
10
11
12
13
14
16
17
18
15
19
20
21
22
26
27
25
23
7
