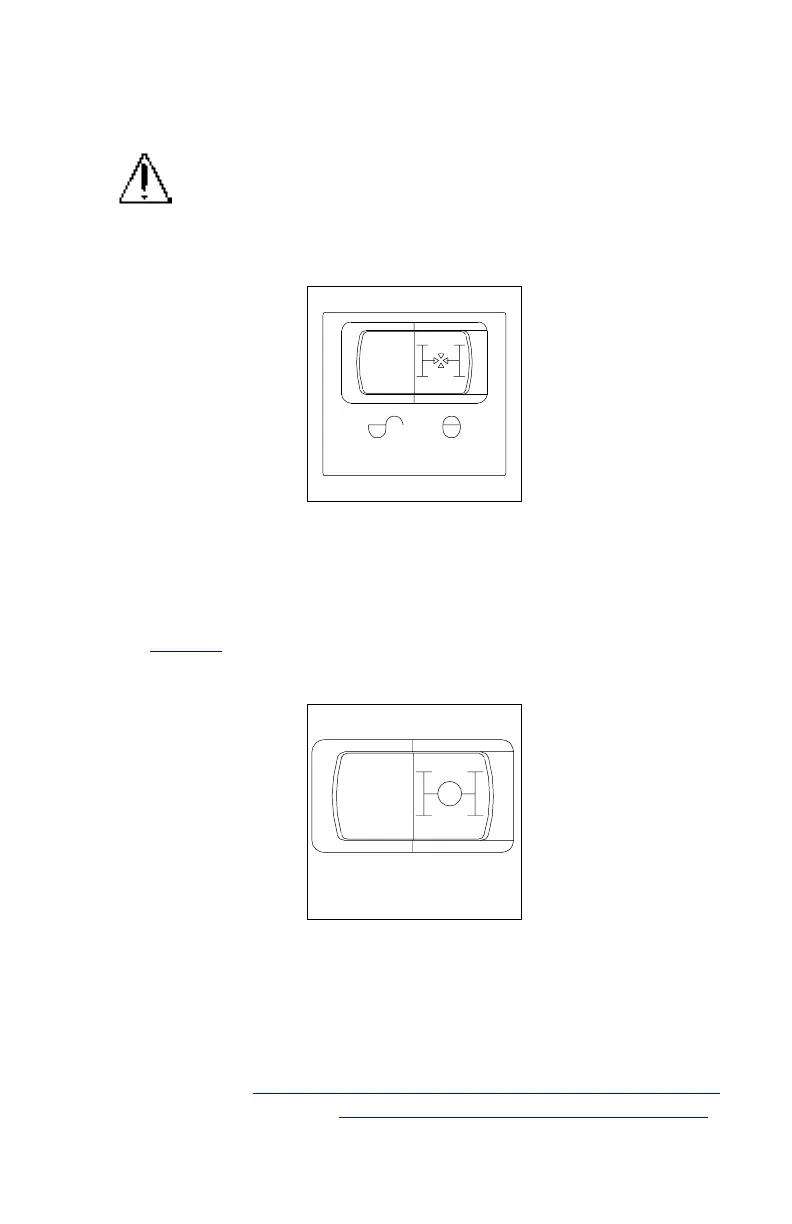

Interaxle Differential Lock Switch
The interaxle differential allows differential action between the for-
ward rear and the rear rear driving axles. The interaxle differential
lock switch allows the operator to LOCK or UNLOCK the differential.
There is a guard over this switch to prevent you from accidentally acti-
vating the lock.
See page 70
for more information on using your interaxle differential.
Two-Speed Rear Axle (Range) Switch
If your vehicle is equipped with a two-speed rear axle, you can select
the axle range by the dash-mounted switch shown above. The low
range provides maximum torque for operating off-highway. The high
range is a faster ratio for highway speeds. There is a guard over this
switch to prevent you from accidentally changing speeds.
For information on how to operate your two-speed rear axle properly
and safely, see PART 7: STARTING & OPERATING THE VEHICLE
or check the Index, under Two-Speed Rear Axle (Range) Switch 29.
WARNING! Placing the differential lock in the “LOCK”
position while your wheels are spinning could cause
loss of control or axle damage. You could be hurt.
Switch to “LOCK” only when your wheels are not spin-
ning.
SHIFT AT ANY SPEED EXCEPT
IF A WHEEL IS SPINNING
