Peterbilt 320 - Page 86

PART 7: STARTING & OPERATING THE VEHICLE
PB1319 (CAT. NO. 5296 ) —84— 22-01691 (R02/02)

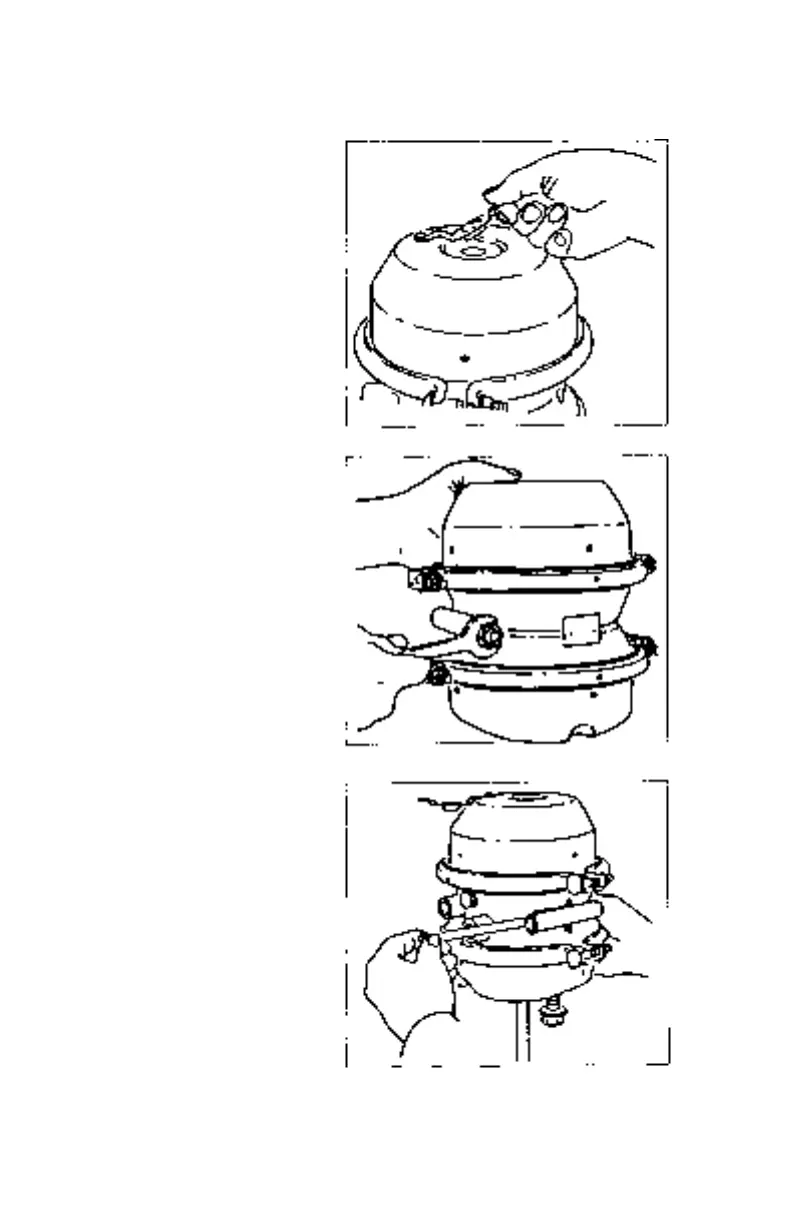

To release spring brakes manually:
1. Remove the cap from
the spring chamber.
2. Remove the release
stud assembly from the
side pocket: remove
the release nut and
washer from the
release stud.
3. Slide out the release
stud.
02936
