Mounting and commissioning the mac
hine
8 - 4
8
.01.05

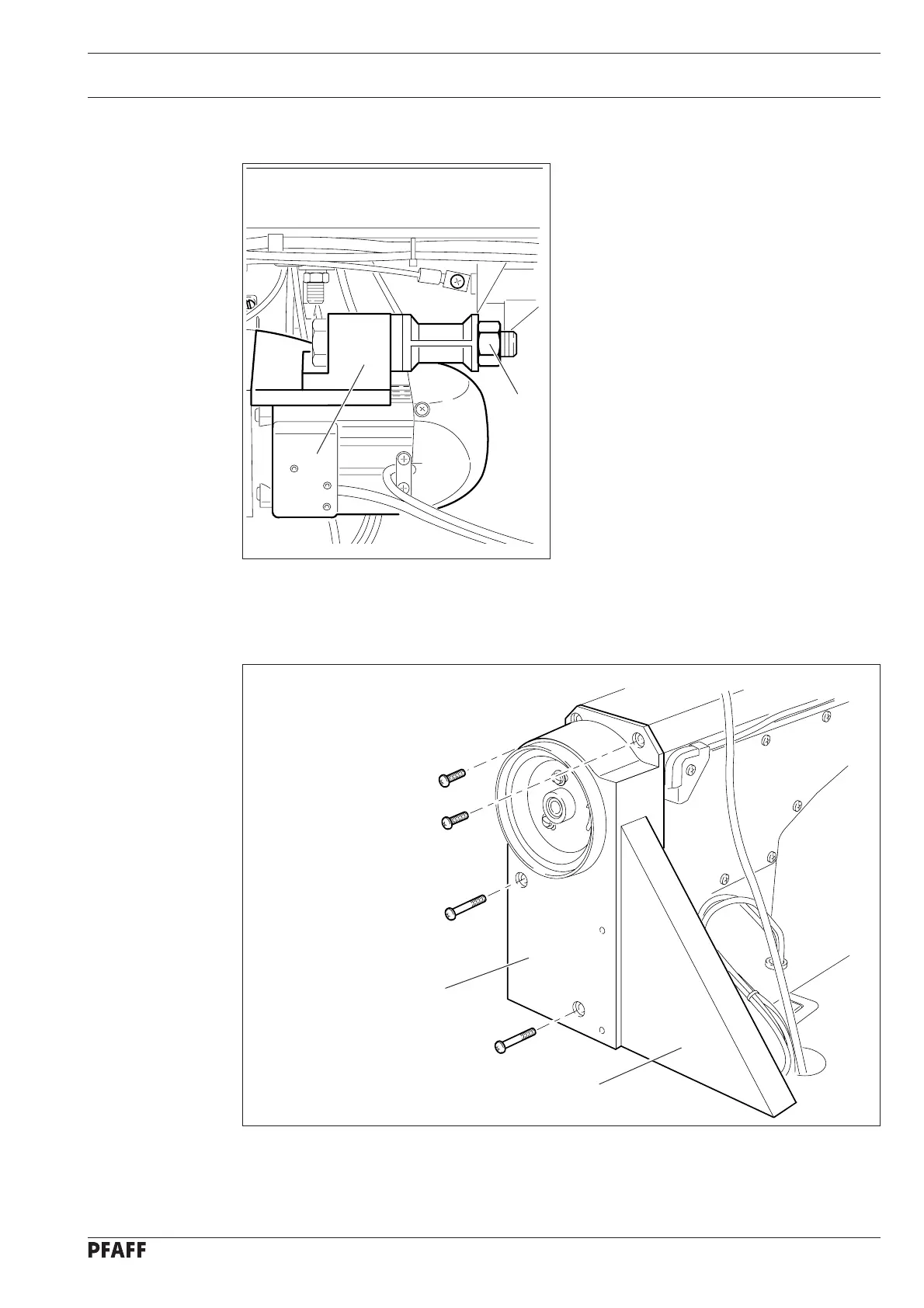

Tightening the V-belt
●
Loosen nut
1
and tighten the V-belt by
turning motor mounting
2
.
●
Tighten nuts
1
.
Fig. 8 - 06
2
1
8
.01.06
Mounting the top V-belt guard
Fig. 8 - 07
●
Fasten part
1
of the V-belt guard to part
2
of the V-belt guard with 4 screws.
●
Attach part
2
together with part
1
of the V-belt guard to the machine housing with 4
screws.
