Mounting and commissioning the mac
hine
8 - 5
8
.01.07

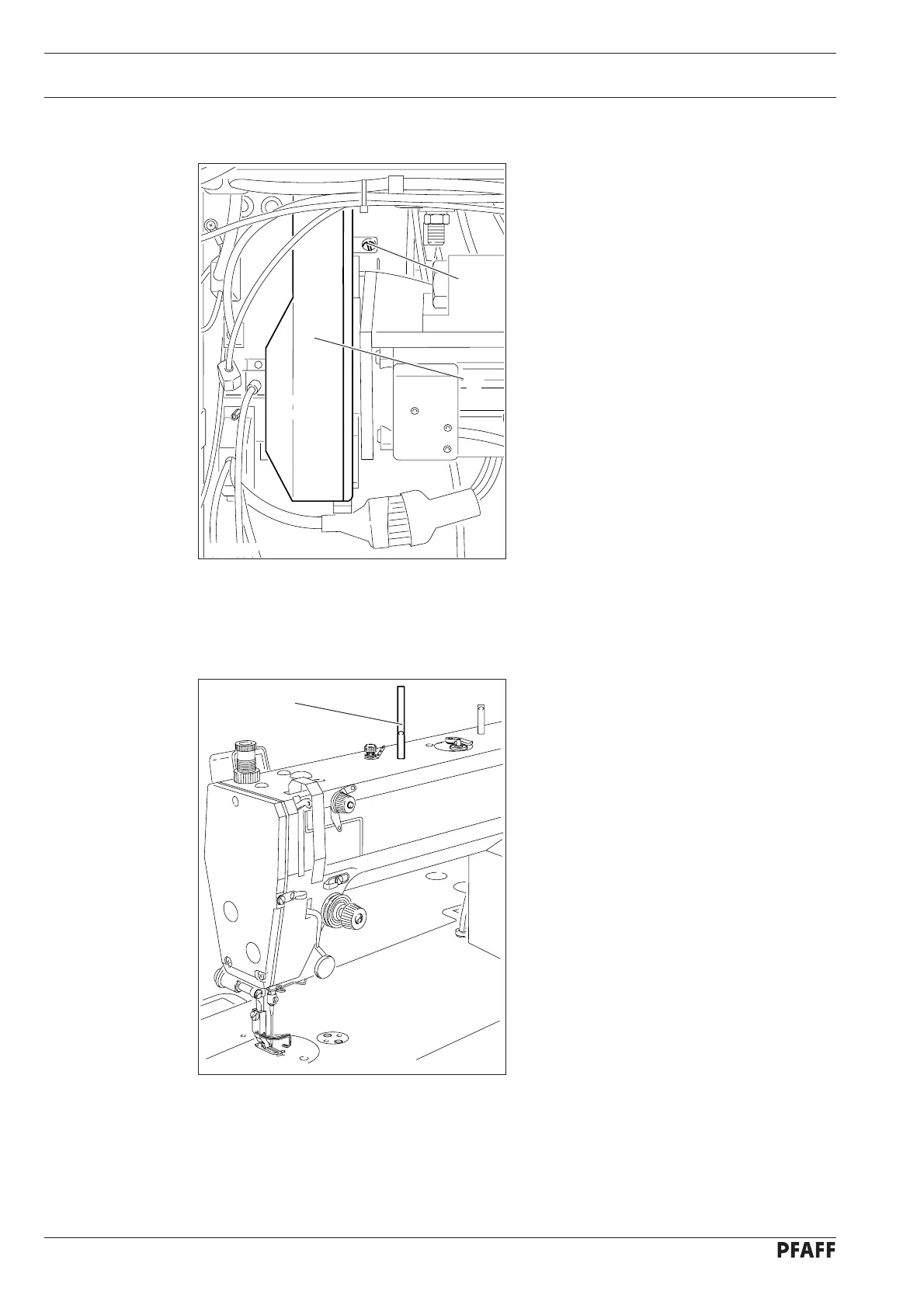

Mounting the bottom V-belt guard
●
Align V-belt guard
1
so that the motor
pulley and V-belt are run freely.
●
Tighten screw
2
.
8
.01.08
Fitting the thread guide
●
Fit the tapered thread guide pin
1
into the
corresponding hole in the machine
housing.
79-009
1
76-057
Fig. 8 - 09
1
2
Fig. 8 - 08
23
25
Table of Contents
Instruction Manual
1
Table of Contents
3
Contents
4
Safety
5
Directives
5
General Notes on Safety
5
Safety Symbols
6
Important Points for the User
6
Operating and Specialist Personnel
7
Operating Personnel
7
Danger
8
Proper Use
9
Specifications
10
Pfaff 1163
10
Models and Subclasses
10
Disposal of Machine
11
Transport, Packaging and Storage
12
Transport to the Customer's Premises
12
Transport Within the Customer's Premises
12
Disposal of the Packaging
12
Storage
12
Explanation of the Symbols
13
Controls
14
On/Off Switch
14
Pedal
14
Lever for Raising the Presser Foot
15
Knee Lever
15
Stitch Length Adjustment Wheel
16
Reverse Stitch Key
16
Key on Machine Head
17
Switch for Thread Wiper -909/93
17
Control Panel
18
Screen Displays
18
Function Keys
18
Mounting and Commissioning the Machine
20
Mounting
20
Adjusting the Table-Top Height
20
Fitting the Oil Pan
21
Mounting the Sewing Head
22
Mounting the Balance Wheel
22
Tightening the V-Belt
23
Mounting the Top V-Belt Guard
23
Mounting the Bottom V-Belt Guard
24
Fitting the Thread Guide
24
Mounting the Spool Holder
25
Connecting the Plug-In Connections and Earth Cables
26
Commissioning
27
Switching the Machine On/Off
27
Basic Setting of the Machine Drive Unit
27
Table Top Cutout
29
Preparation
30
Inserting the Needle
30
Winding the Bobbin Thread / Adjusting the Preliminary Thread Tension
31
Removing/Inserting the Bobbin Case
32
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
32
Threading the Needle Thread / Adjusting the Needle Thread Tension
33
Entering the Start and End Backtacks
34
Sewing
35
Darning Program
36
Counted Seam
36
Error Messages
37
Care and Maintenance
38
Cleaning the Machine
38
Checking the Oil Level / Filling in Oil
39
Adjusting the Lubrication
40
Lubricating the Needle Head Parts
40
Hook Lubrication
40
Wearing Parts
41
Postfach
44
