Adjustment
11 - 26
●

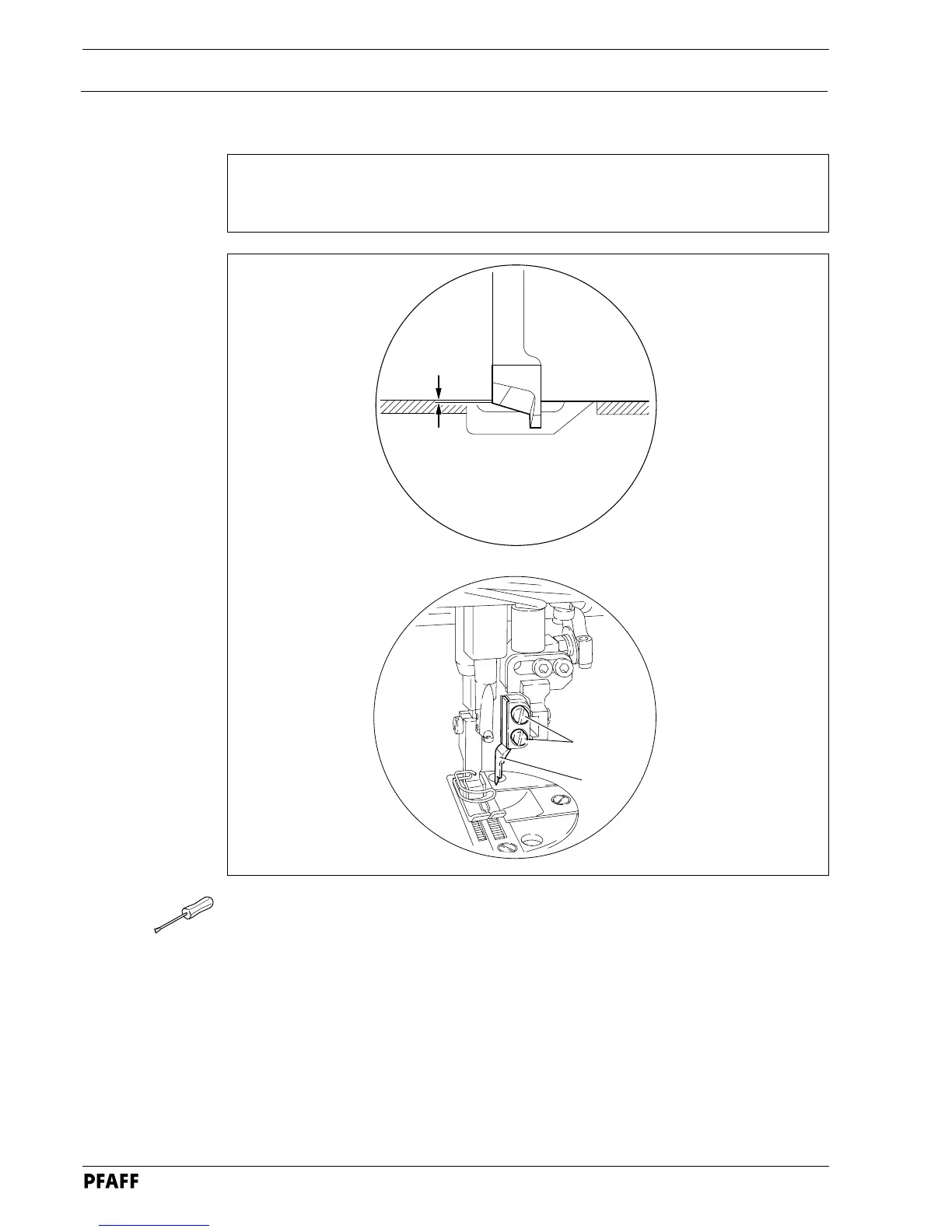

Switch on the edge trimmer and bring the knife to the bottom of its stroke.
●
Adjust knife
1
(screws
2
) according to the
requirement.
11
.06.03
Knife height
Requirement
When the knife is at the bottom of its stroke, the front edge of the knife blade should be
approx.
0.5 mm
below the top edge of the stationary knife.
0.5 mm
1
2
Fig. 11 - 25
57
59
