Pfaff 1243 - Mounting Sewing Head on Stand

Set-up and Initial Commissioning
20
1
2
3
0

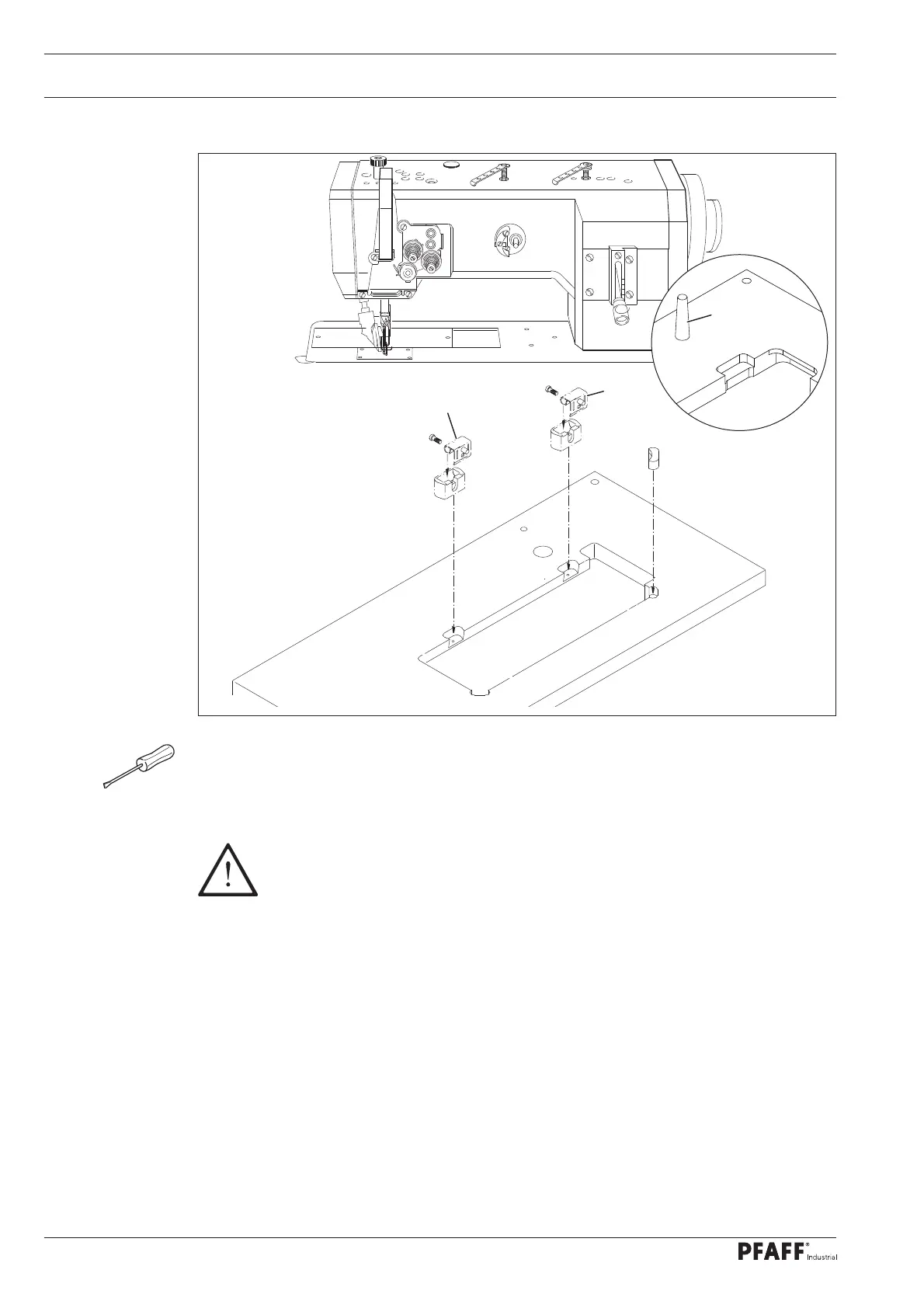

Fig. 8 - 02
8.01.02 Inserting the sewing machine into the stand
 The hinge 1 is screwed to the sewing head base plate.
 Insert the sewing machine into the table top.
 Insert the sewing head support 2 into the table top hole.
1
Do not operate the machine without the support 2! Risk of damage due to the
top-heavy sewing head! Machine can tip over backwards when moving it!
1
2
