Pfaff 1425 - Fitting the tilt lock; Tensioning the v-belt

8 - 2
Installation and commissioning
58.008

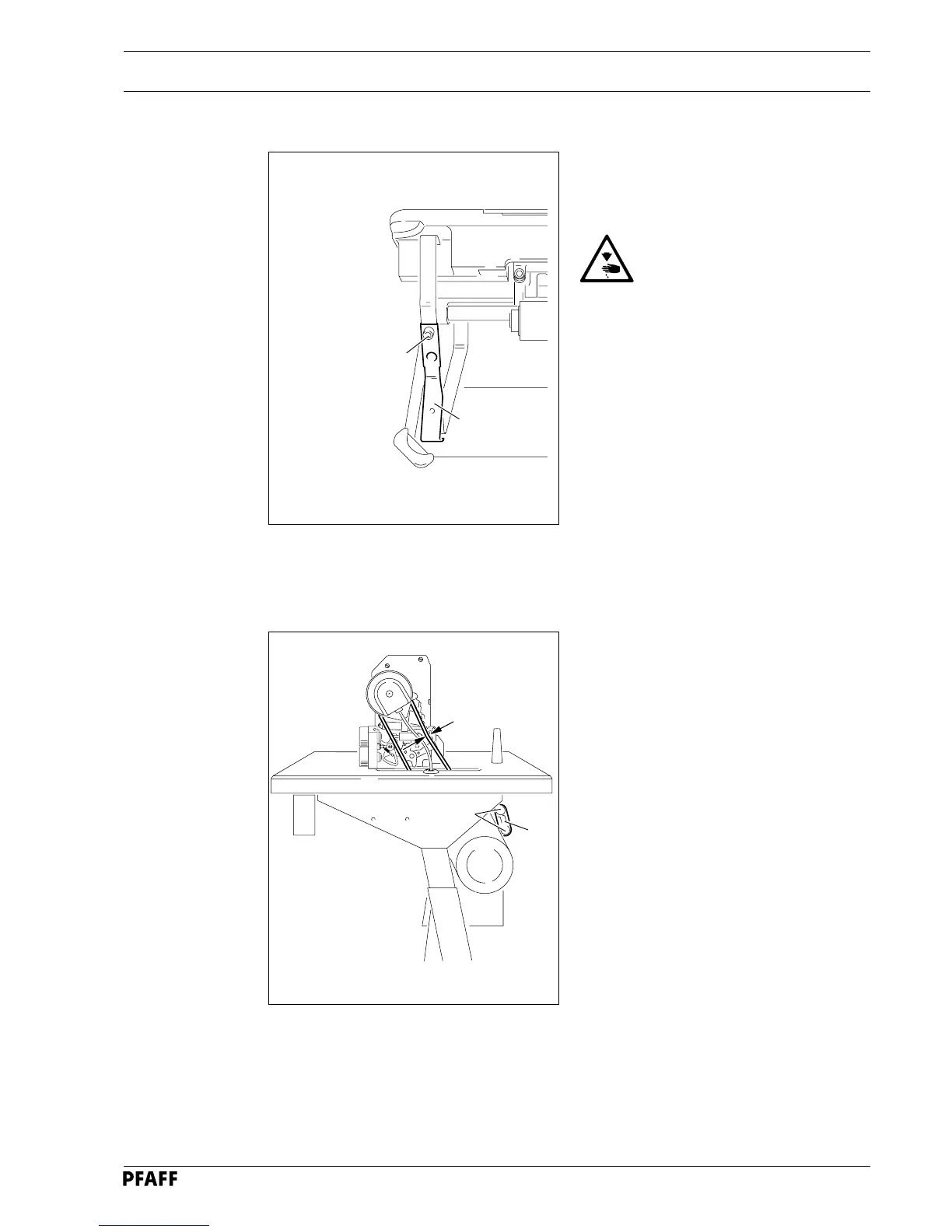

Fig. 8 - 02
Fig. 8 - 03
2 cm
1
2
1
2
8.01.03 Tensioning the v-belt
8
.01.02 Fitting the tilt lock
● Screw on tilt lock 1, provided in the ac-
cessories, using screw 2.
Do not operate the machine
without tilt lock 1!
Danger of crushing between
sewing head and table top!
● Loosen nut 1.
● Set tension of v-belt by moving motor
bracket 2.
● Tighten nuts 1.
