Pfaff 260 User Manual

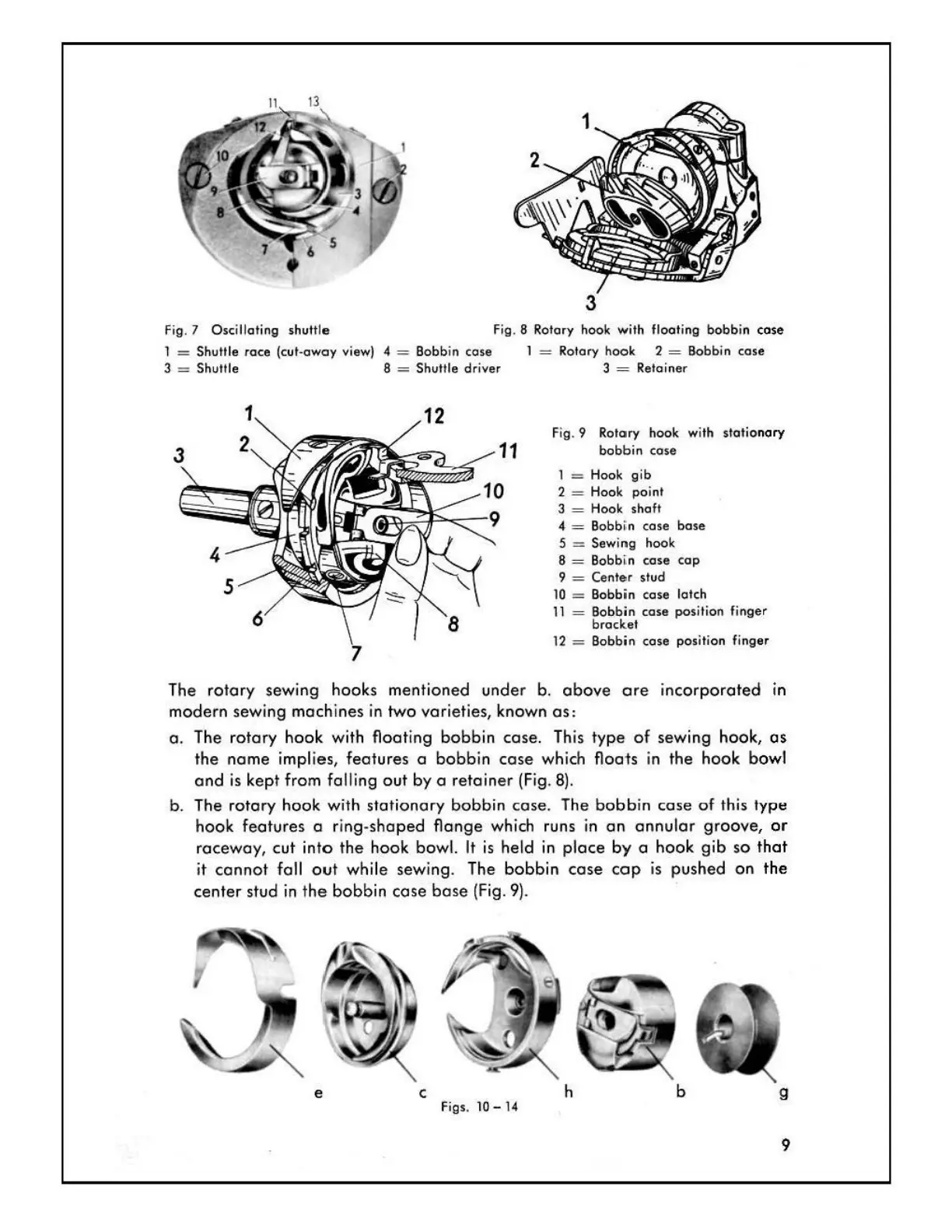

fig . 7 Oscillating shuttle Fig. 8 Rotary hook with floating bobbin case
1 = Shuttle race (cut -away view) 4 = Bobbin case 1 = R otary hook 2 = Bobbin case
3 = Shuttle 8 = Shuttle driver 3 = Retainer
Fig. 9 Rotary hook with
stationary
11 bobbin case
1 = Hook gib
2 = Hook point
3 = Hook shaft
4 = Bobb<n case bose
5 = Sewing hook
8
= Bobbtn case cop
9 = Center stud
10 = Bobbin case latch
11 = Bobbin case position fi nger
brocket
12 = Bobbin case position finger
The rotary sewing hooks mentioned under b. above are incorporat ed in
modern sewing machines in two varieties, known as:
a. The rotary hook with floating bobbin case. Th is type of sewing hook, as
the name
implies, features a bobbin case which floats in the hook bowl
and is kept from falling out by a retainer (Fig. 8).
b. The rotary hook with stationary bobbin case. The bobbin case of this type
hook features a ring-shaped flange which runs in an annular groove, or
raceway, cut into the hook bowl. It is held in place by a hook gib so that
it
cannot fall out while sewing. The bobbin case cap is pushed on the
center stud in the bobbin case base (Fig. 9) .
e
c h b
g
f i gs . 10- 14
9

Pfaff 260 Specifications

General

Type	Mechanical
Needle Position	Adjustable
Free Arm	Yes
Reverse Stitch	Yes
Presser Foot	Snap-on
Operation	Manual
Buttonhole	4-step
Bobbin	Class 15
Speed Control	Foot pedal
Stitch Functions	Zigzag
Needle Positions	Variable
