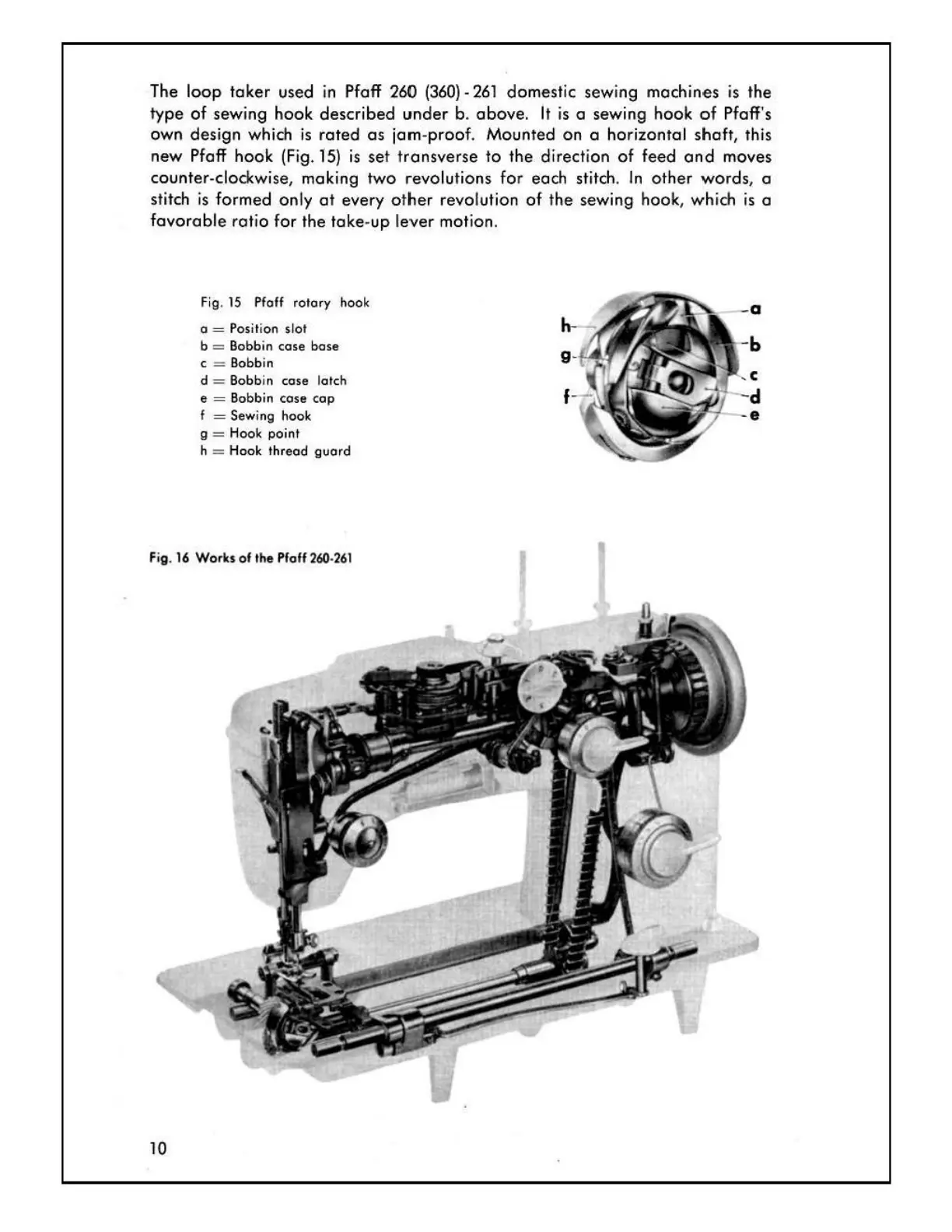

The loop taker used in Pfaff 260 (360)- 261 domestic sewing machines is the
type
of sewing hook described under b. above. It is a sewing hook of Pfaff's
own design which
is rated as jam-proof. Mounted on a horizontal shaft, this
new Pfaff hook (Fig.
15) is set transverse to the direction of feed and moves
counter-clockwise, making two revolutions for each stitch. In other words, a
stitch
is formed only at every other revolution of the sewing hook, which is a
favorable ratio for the take-up lever motion.
Fig . 15 Pfaff rotary hook
a
= Position slot
b = Bobbin case bose
c = Bobb in
d = Bobbin case latch
e = Bobbin case cop
f =Sewing hook
g = Hook point
h = Hook thread
guard
Fig. 16 Works of the Pfaff 260 · 261
10

Pfaff 260 Specifications

General

Type	Mechanical
Needle Position	Adjustable
Free Arm	Yes
Reverse Stitch	Yes
Presser Foot	Snap-on
Operation	Manual
Buttonhole	4-step
Bobbin	Class 15
Speed Control	Foot pedal
Stitch Functions	Zigzag
Needle Positions	Variable
