Controls
7 - 7
7.11 Edge trimmer -726/05 for 491
5
4

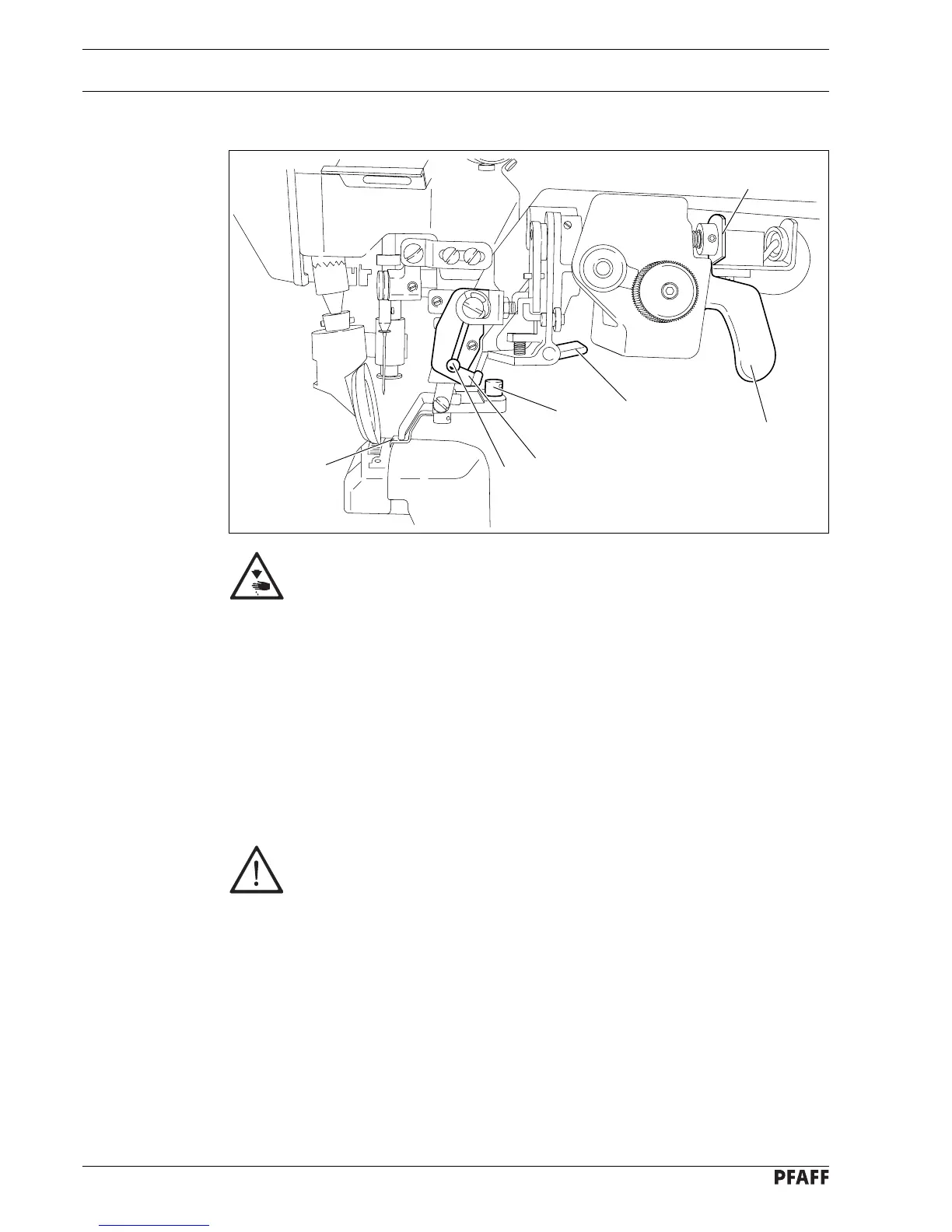

Fig. 7 - 11
Keep your hands away from the moving knife! Danger of injury!
Switch on knife drive:
● By turning lever 1 the knife is moved into its operating position.
Switch off knife drive:
● By pressing lever 2 or key 3 the knife is put out of operation.
Switch on edge guide:
● After lever 4 has been pressed, the edge guide moves into its starting position.
Switch off edge guide:
● By raising lever 5, the edge guide is put out of operation.
Changing the knife:
The following work may only be carried out by technical staff or by persons who
have been properly instructed.
● Switch off the machine.
● Loosen screw 6 and remove knife 7.
● Insert new knife and push it close to needle plate insert.
● Tighten screw 6.
● Adjust the knife according to Chapter 11.06.01 Position of the knife to the needle plate
and Chapter 11.06.02 Knife crosswise to sewing direction.
1
2
3
6
7
