Adjustment
11 - 31
11.
04.27

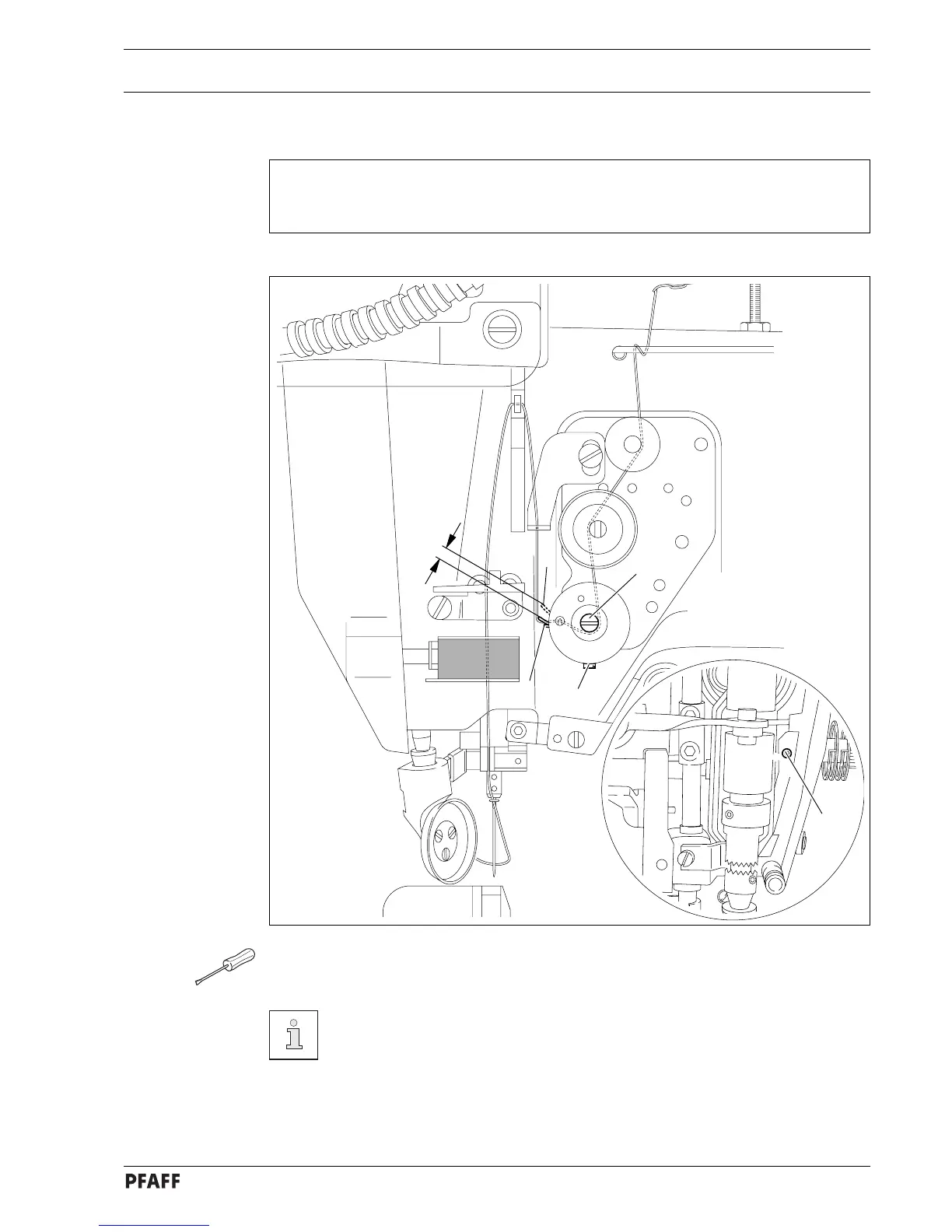

Thread check spring
Requirement
1.
The movement of thread check spring
5
must be completed when the needle point
enters the material ( spring stroke approx.
7 mm
).
7 mm
1
Fig. 11 - 27
●
Position rest
1
(screw
2
) according to
requirement 1
.
●
To adjust the spring tension, turn screw
3
(screw
4
).
For technical sewing reasons it may be necessary to deviate from the indicated
spring stroke or spring tension.
3
5
4
2
68
70
