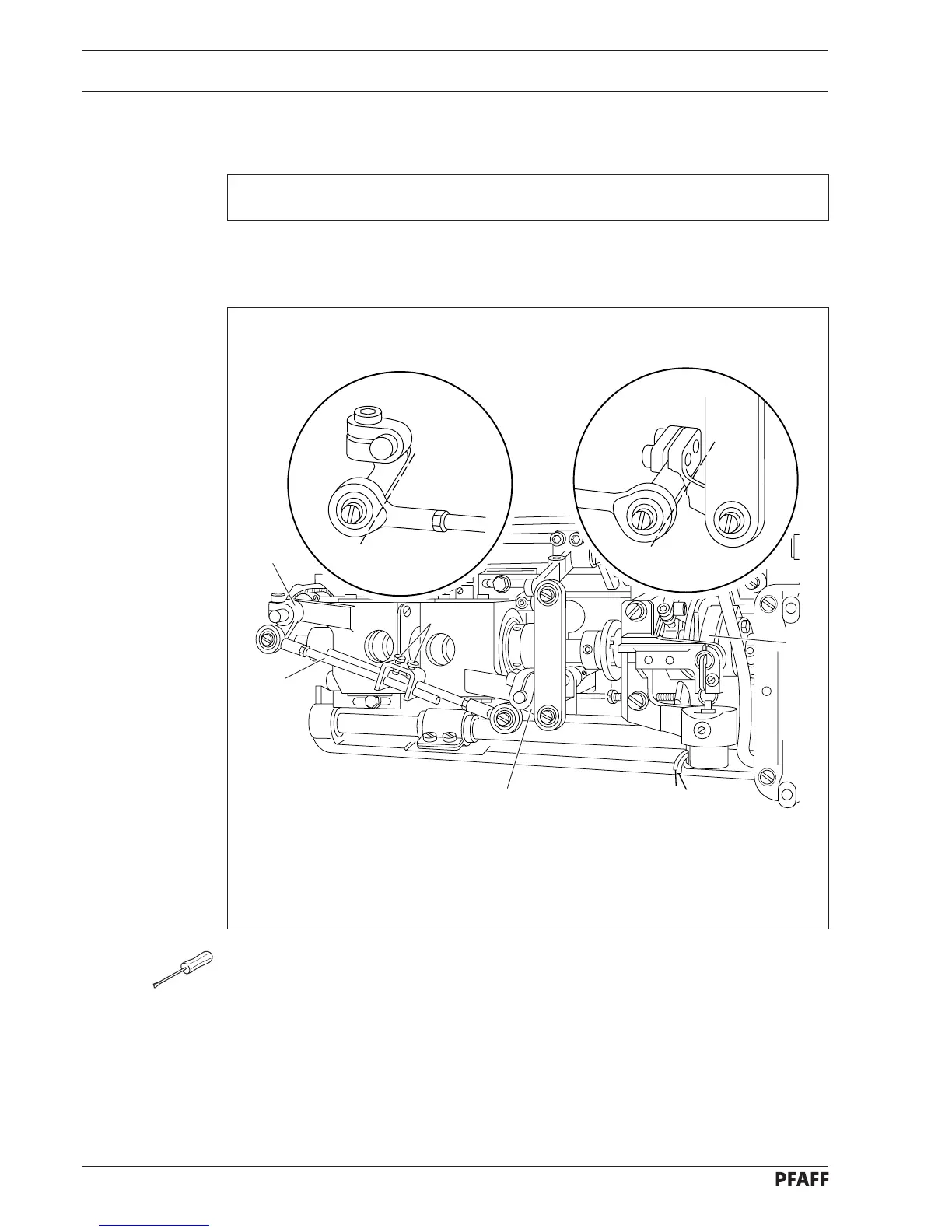

11 Catcher connecting rod (two-needle machines)
Requirement
The left bell-crank lever 4 must be parallel to the right bell-crank lever 5.
● Make sure control cam 1 is in starting position and loosen screws 2.
● Adjust catcher connecting rod 3 according to the requirement.
● In this position, tighten screws 2.
4
3
1
2
5
