10
Adjustment

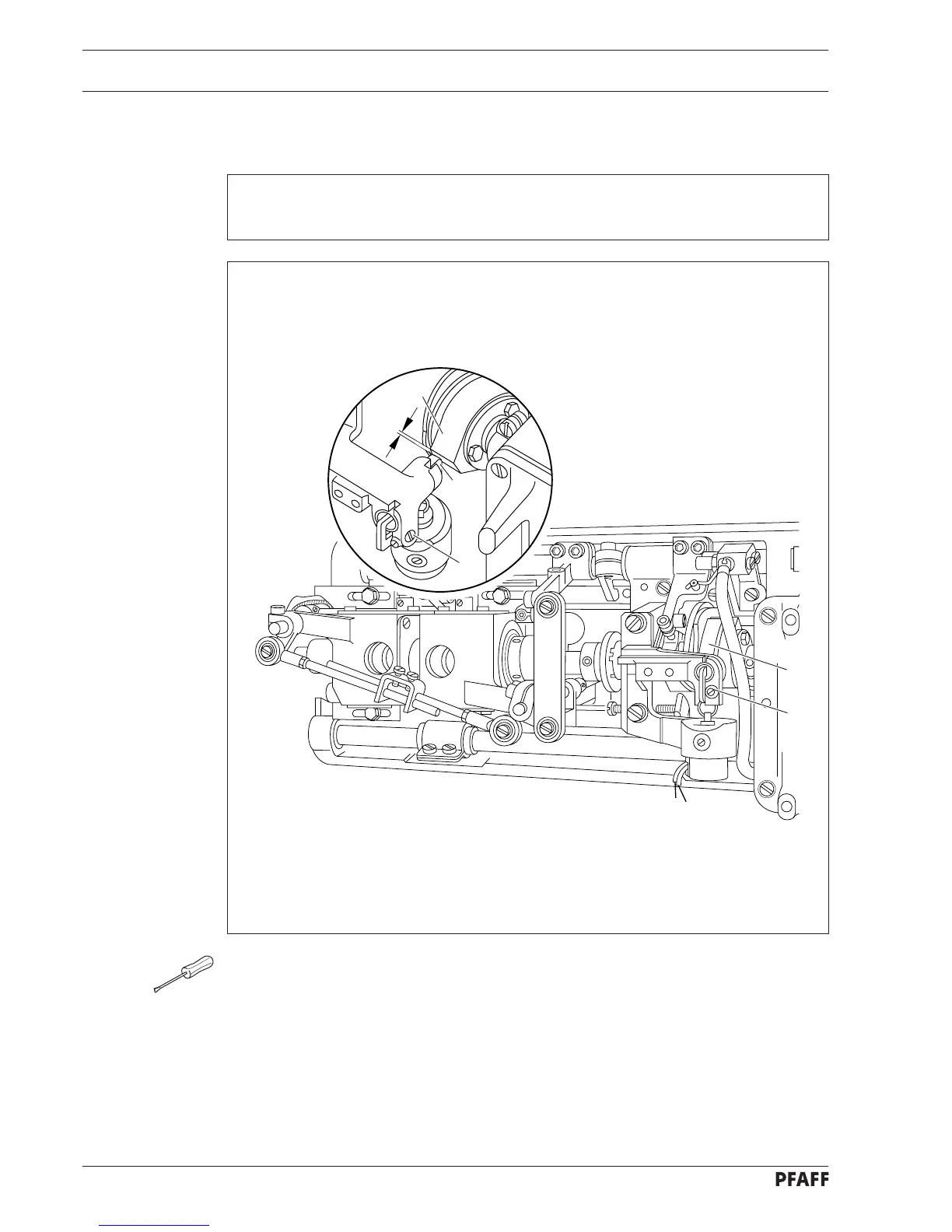

5 Engaging lever pin
Requirement
When the trimming mechanism is at rest there must be a clearance of 0.1 mm between
the highest point of cam track 1 and control pin 2.
● Make sure control cam 1 is in its starting position. Then turn balance wheel until highest
point of cam track 1 is aligned with control pin 2.
● Loosen screw 3.
● Turn eccentric stud 4 according to the requirement.
● In this position, tighten screw 3.
● Check this adjustment according to the requirement.
4
1
0.1 mm
1
3
2
