Adjustment
4 Solenoid bracket

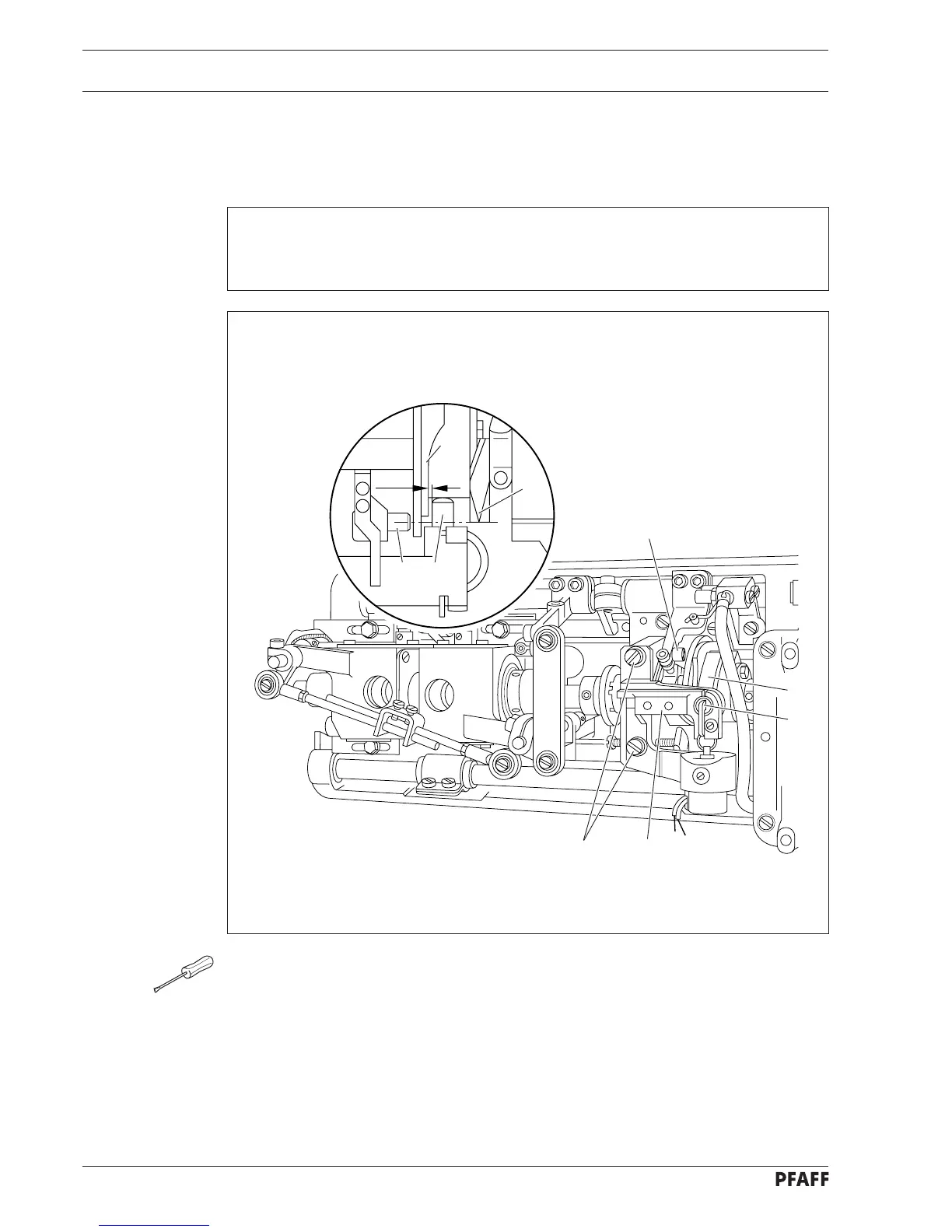

4.01 Solenoid bracket on -900/56
● Turn balance wheel until tip of trip 1 is aligned with control pin 2.
● Operate engaging lever 3.
● Loosen both screws 4.
● Adjust position of solenoid bracket 5 according to the requirement
● In this position, tighten screws 4.
● Check this adjustment according to the requirement.
● Turn balance wheel opposite feeding direction until control pin 6 is retained.
2
7
3
54
7
1
6
Requirement
When the tip of trip 1 is aligned with control pin 2 and the engaging lever has been
operated, there must be a clearance of roughly 0.5 mm between the left inside of control
cam 7 and control pin 6.
0.5 mm
