Introduction

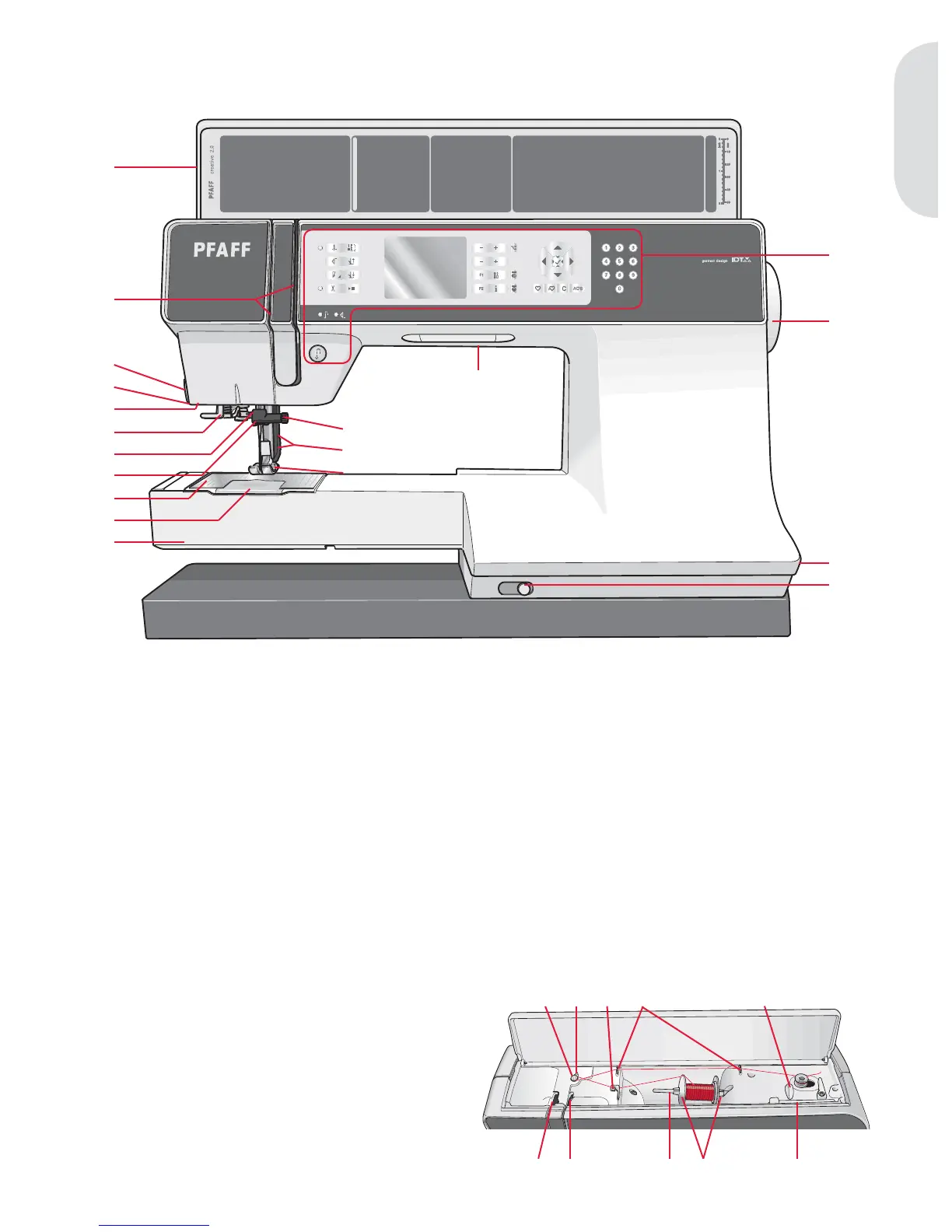

Front side
1. Lid with stitch overview and button ruler
2. Threading slots
3. Thread cutter
4. Sensormatic buttonhole foot socket
5. Light bulbs
6. Built-in needle threader
7. Needle bar
8. Needle thread guide
9. Stitch plate
10. Bobbin cover
11. Free arm
12. Presser foot
13. Presser foot bar and presser foot holder
14. Needle screw
15. Buttons and graphic display
16. Handwheel
17. Main switch, connectors for power cord and
foot control
18. Slide for lowering the feed dogs
Top parts
19. Pre-tension disk for threading and bobbin
winding
20. Bobbin winder thread guide
21. Thread guide
22. Bobbin thread guides
23. Bobbin thread cutter
24. Bobbin winder lever and bobbin spindle
25. Auxiliary spool pin
26. Spool caps
27. Spool pin
28. Thread tension disk
29. Take-up lever
Introduction
Machine overview
1:5
