19
Setting the seam width
Set the seam width as follows:
1. Switch the main switch to OFF and pull out the lead cord/plug.
2. Open the looper cover and the swivel plate.
3. Move the upper blade to its lower position (see Page 24).
4. Adjust the setting knob until the lower blade is in the desired position.

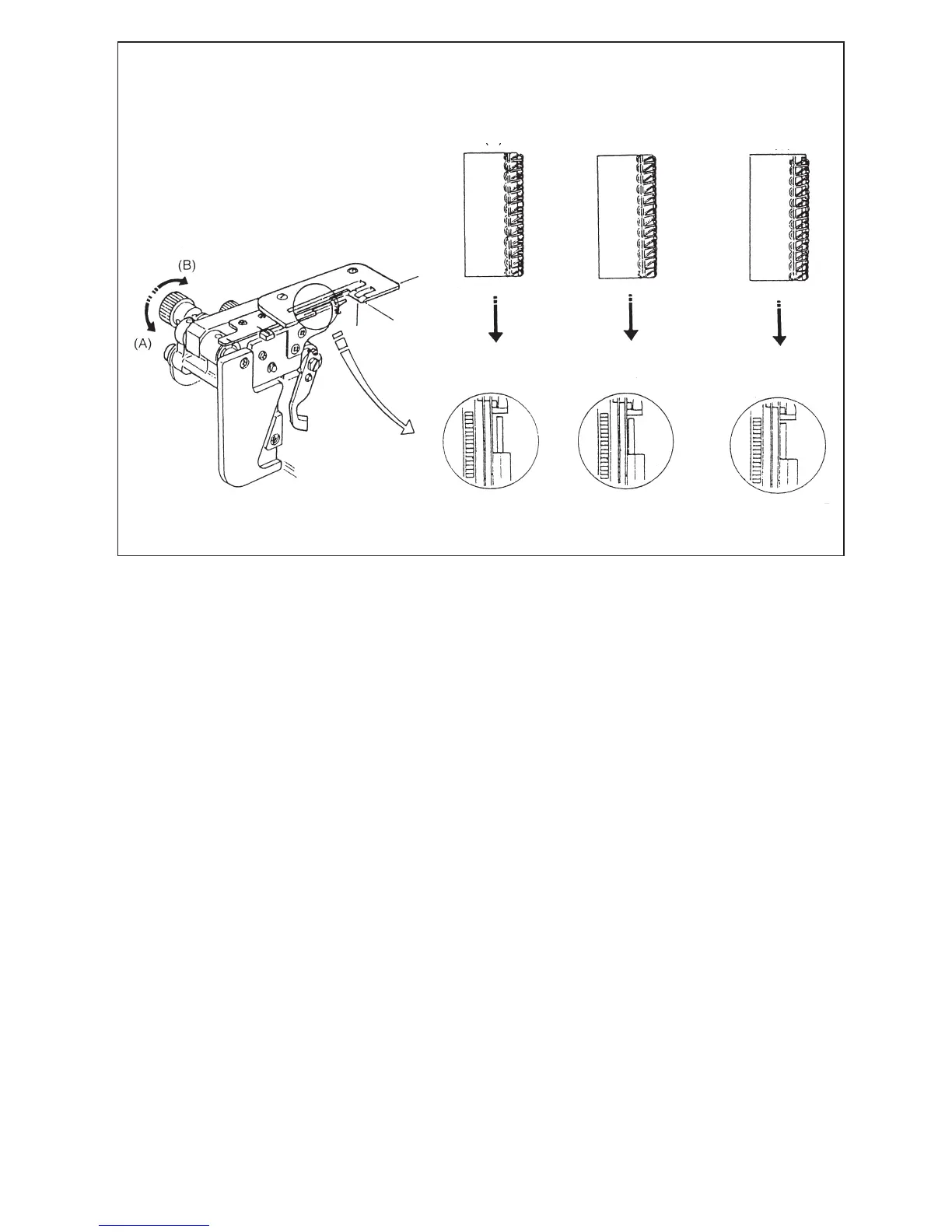

(A) The seam width is too small - there are extra loops.
Turn the setting knob clockwise. The lower blade moves to the right.
(B) The seam width is too large - the edge is rolling up.
Turn the setting knob counterclockwise. The lower blade moves to the left.
5. Move the upper blade to its upper position.
6. Close the looper cover and the swivel plate.
Setting the seam width for rolled hems (Programs 05, 06)
Turn the setting knob counterclockwise to an extremely narrow setting.
(A)
the right seam
width
(B)
