Pfaff Sewing Machine - Page 14

14
A
B
C
Operate your sewing machine

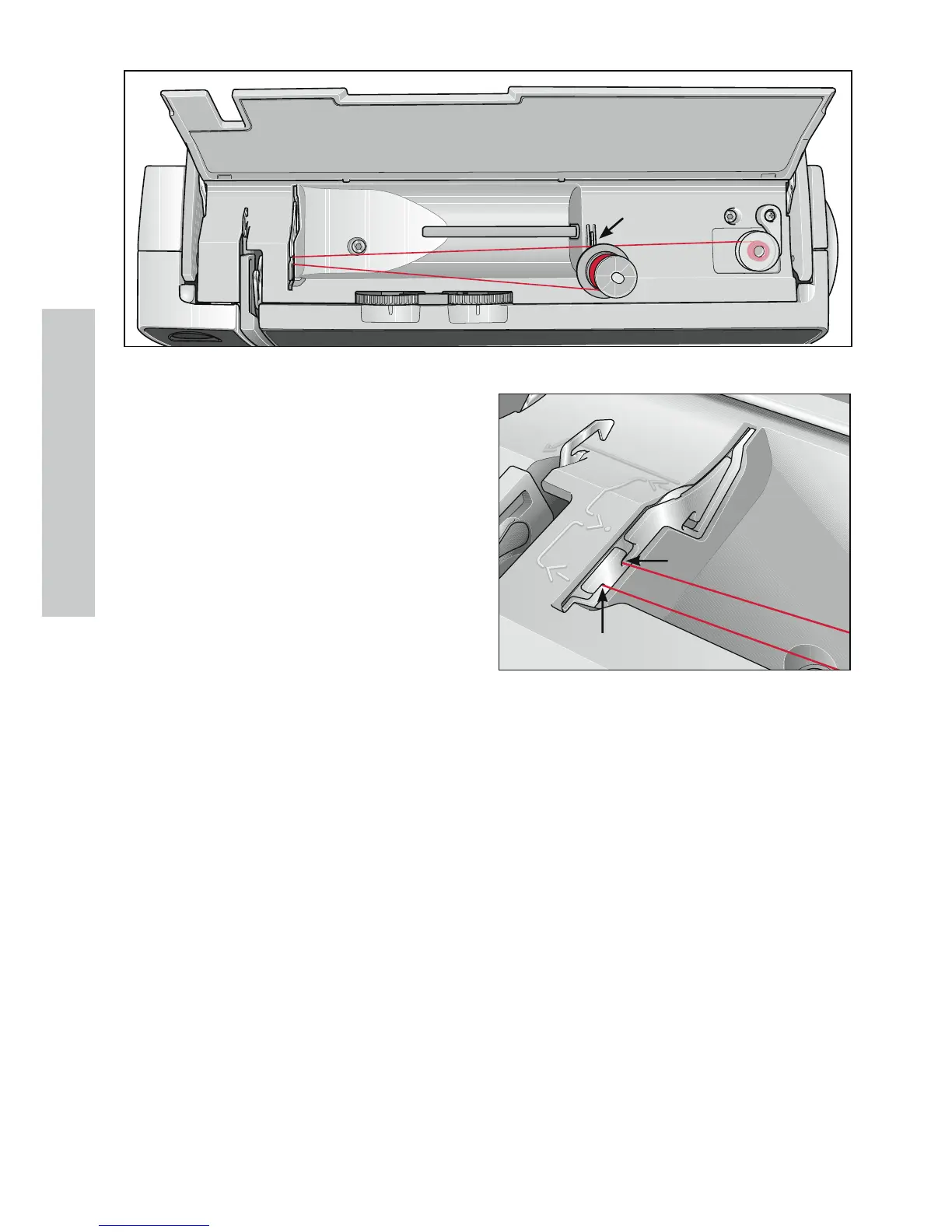

Winding the bobbin from the
second spool pin
Pushthesecondspoolpin(8)intoitshole.
Slideonaspoolcapandplacethethread
spool on the spool pin.
Threading
PlacethethreadintoguideAandpull
it through opening B to the right under
hook C. Wind the thread clockwise a few
times around the bobbin.
Winding
Switchonthemainswitch(1).Holdthe
endofthreadrmlyandpressthethe
foot control. The winding action will stop
automatically as soon as the bobbin is full.
Cut the thread, push the bobbin to the left
andremoveit.
Don’t forget:
Turnthehandwheelreleasedisk(3)
backagain.Thenturnthehandwheel(4)
towards you until it snaps into place.
TIP: If the machine is already threaded, you
can easily wind thread from the second spool
pin without having to unthread the machine.
