Cooling unit electrical connection
Item
Designation
Item
Designation
1
Connecting plug
2
Cage terminal - max. 3.5 x 3.0 mm
3
Screwdriver (slotted)
4
Cable - 0.5 – 2.5mm²
Requirement
- All general requirements for safe and reliable operation are assured; see Mains supply connection
- The cooling unit is de-energized.
Procedure
 Connect the cable (4) with the connecting plug (1)/(accessory kit) as specified in the electrical circuit diagram;
see Electrical connection.
 For electrical connection, insert the screwdriver (3) into the cage terminal (2) and connect the cables (4) to the
cooling unit with the connecting plug (1).
 Insert the screwdriver firmly into the cage terminal (2). Never twist the screwdriver; otherwise the cage terminal
(2) will be damaged.
 Before switching on, ensure that the mains voltage matches the upstream fuse; see Electrical connection.
 The cooling unit is connected electrically.
1
3
2
4

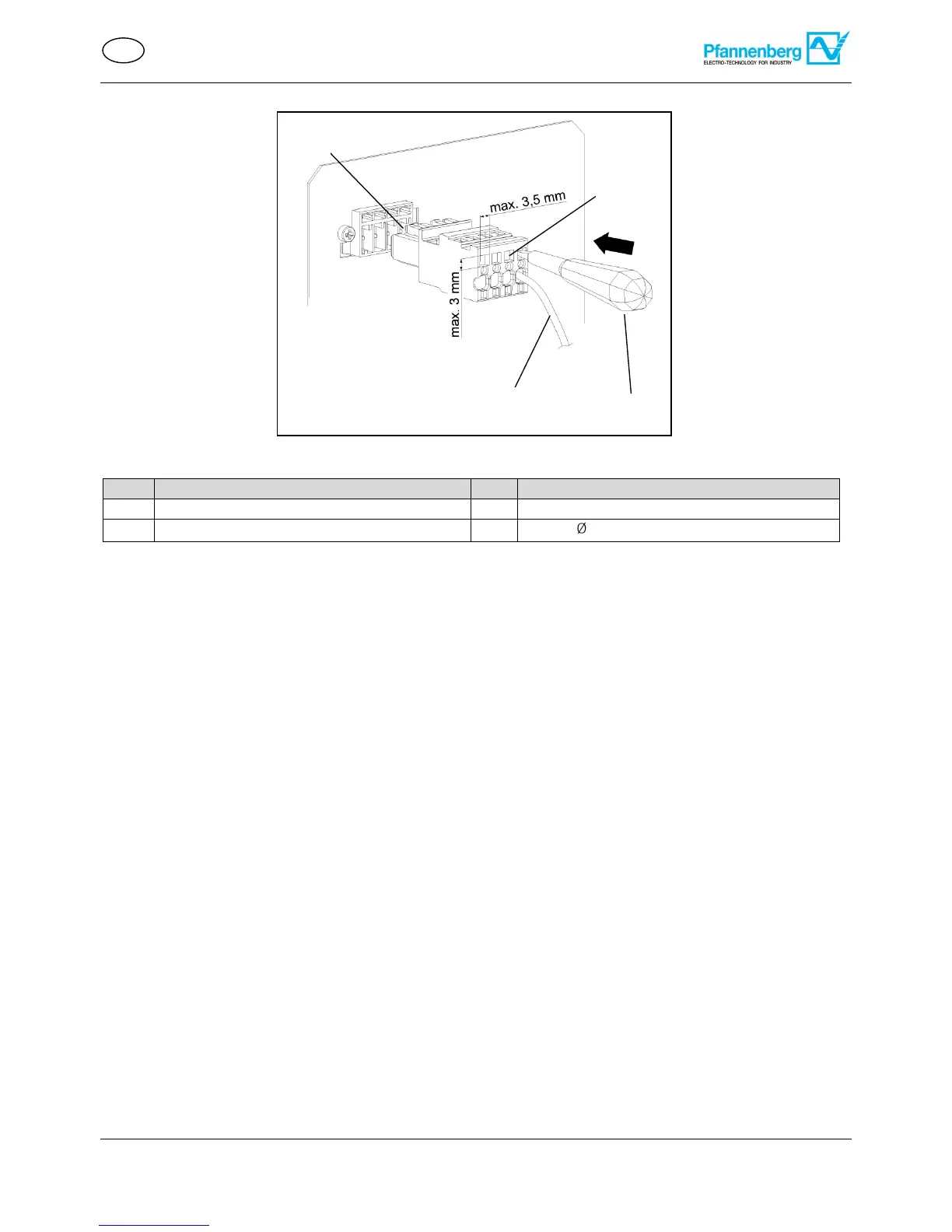

Figure 15 - Cooling unit plug connection
1
2
3
4
