System Overview
7

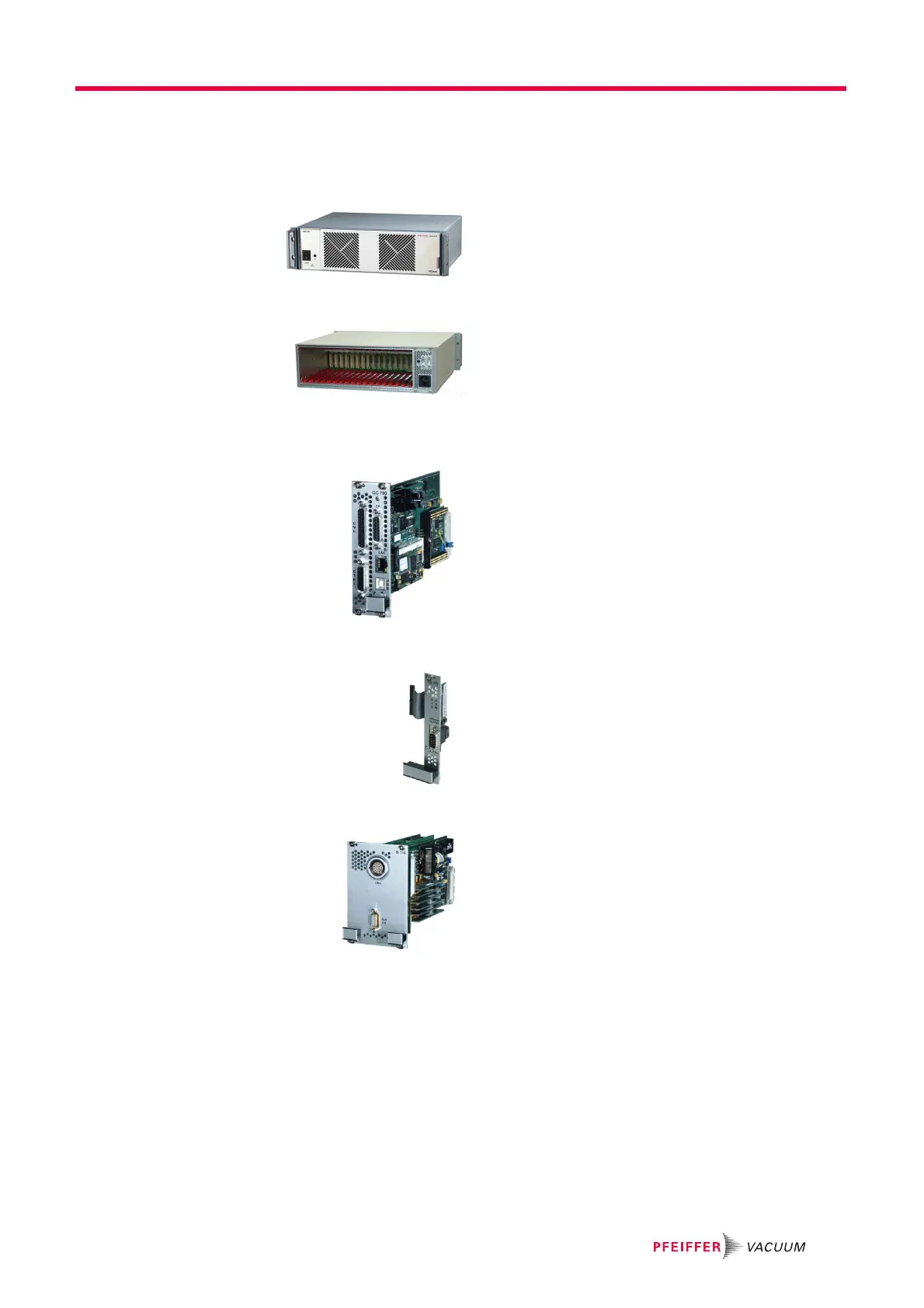

2.1 QMG 700 Quadrupole Mass Spectrometer,
Components and Modules
Controller QMS 700
SC 700
QC 700
FB 711
(QC 700 option)
IS 716
Controller
Comprises the system chassis SC 700 and the modules
described below.
System Chassis
Comprises the power supply, the internal bus plane and
the system ventilation. It houses the modules described
below.
Quadrupole Controller
Comprises:
 QMG 700 system controller and LAN/USB PC
interface
 Control circuits for the RF generator
 Measuring signal processing
 Interface for the CP 400
Field Bus
Enables the integration of the QMG 700 in a CANopen
network.
Ion Source Supply
Supplies all necessary operating voltages for the ion
source.
 Programmable potentials, short-circuit-proof
 Polarity reversible for positive and negative ions
 Normal mode / degas mode
 Suitable for all ion source types of the QMA 4x0
