Pfeuffer HOH-EXPRESS HE 50 - 5.3 Filling and Crushing the Measurement Cell

Operation
14 | 26 Operating instructions HE 50 | Revision 7
Filling the measurement cell and crushing
1 2
4
3
4
5
6
Item
Designation
Item
Designation
1
Ratchet
4
Stop pin
2
Measurement cell top part
5
Spindle
3
Milling disk
6
Measurement cell bottom part
 Fill the measurement cup with the product so it is level with the rim.
 Insert the supplied ratchet into the top part of the measurement cell until it engages.
 Screw the measurement cell top part on anticlockwise and put it down.
 Remove the plastic disk (protection against contact for the milling disks).
 Empty the content of the measurement cup evenly into the bottom part of the
measurement cell.
 Put the top part on.
 Change over the ratchet and turn the measurement cell clockwise as far as the stop.
Tip: Tip the measurement cell to the side if the milling disk touches
the product. Screw in the measurement cell with short movements
of the ratchet.

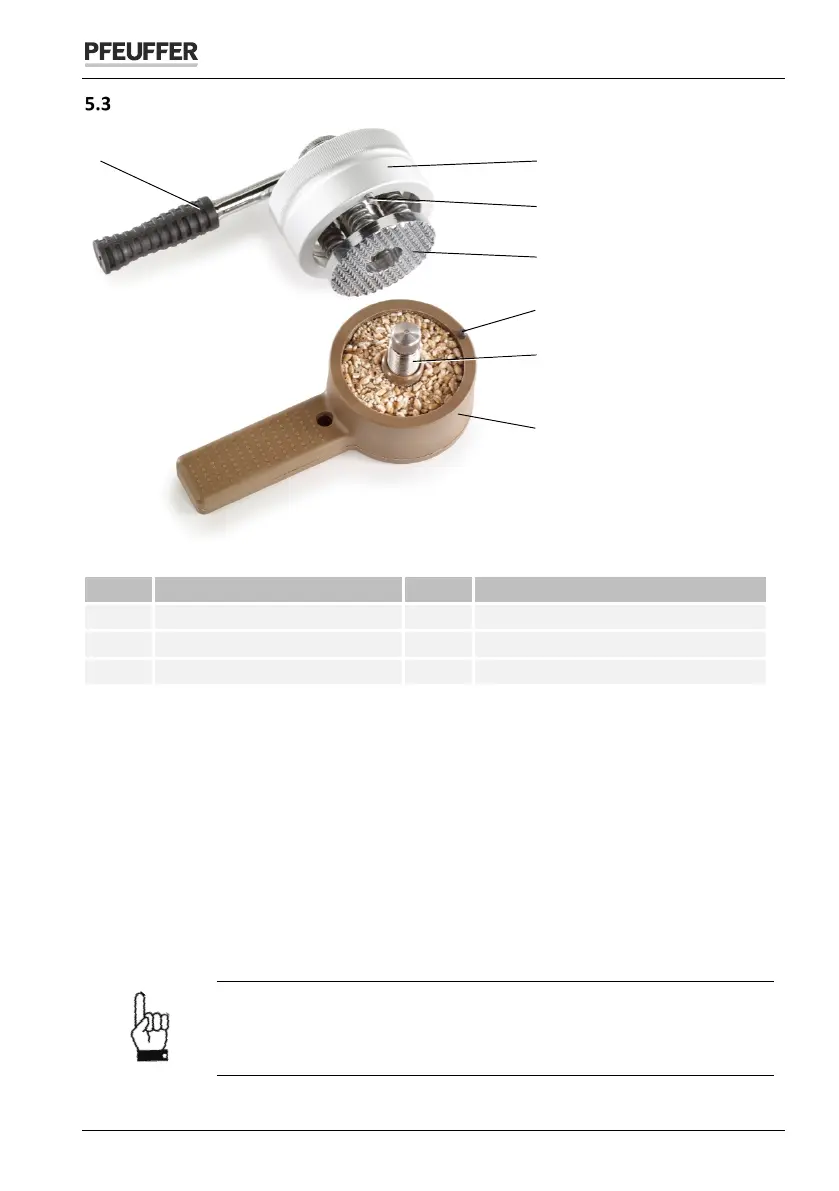

Figure
3: Filling the measurement cell
