1. General
1.1 Scope of delivery
Check the scope of delivery for completeness. Contact the manufacturer immediately if
parts are missing.
ATTENTION!
Operate the product only with the parts listed in the scope of delivery.

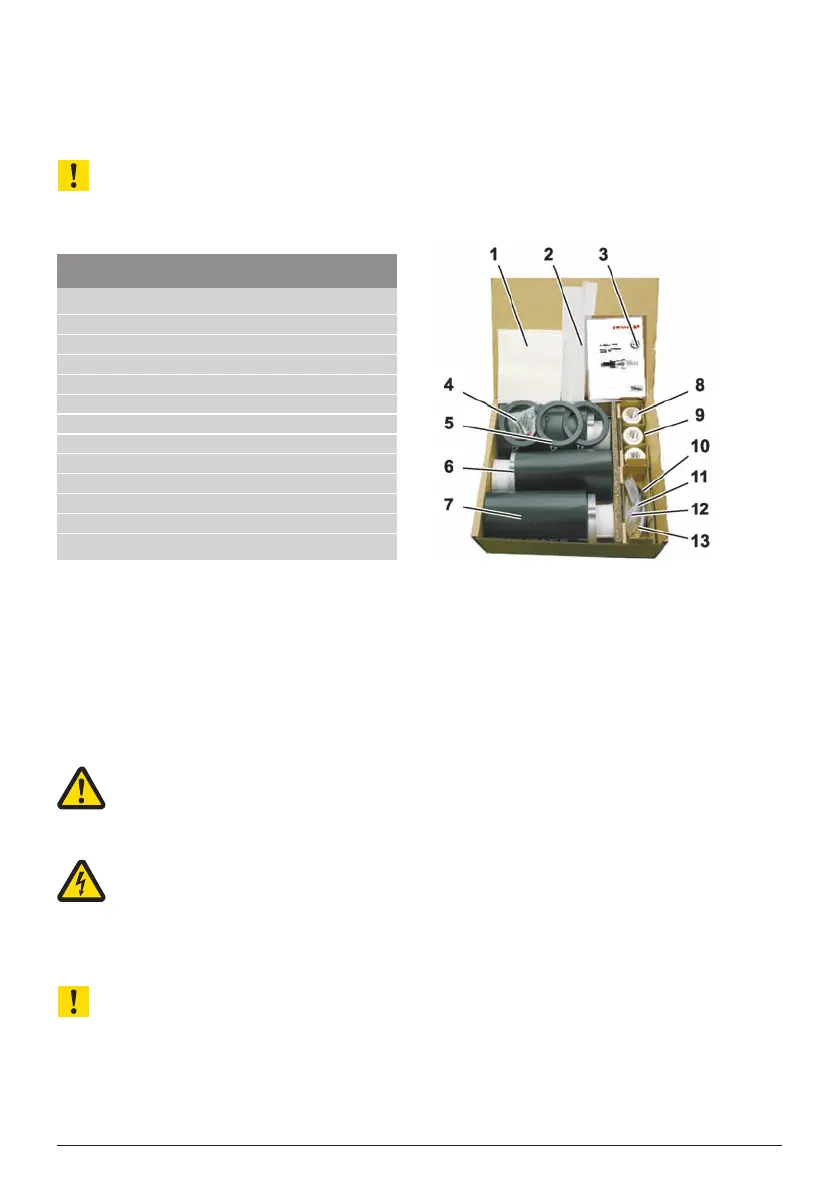

Packing unit
Pos. Name Qty.
1 Cleaning cloth 3
2 Sealing tape*) 3
3 Installation instructions 1
4 Bolts M8x45 9
5 Sealing*) 3
6 Bell flange 3
7 Shrink tubing*) 3
8 Tension cone 3
9 Contact ring 3
10 Tape measure 1
11 Special PFISTERER grease 4
12 Emery cloth**) 1
13 Semi-conducting tape 3
4 General PFISTERER CONNEX cable connector Size 3 and 3/S
1.2 Explanation of symbols
Important safety relevant notes in these installation instructions are marked by symbols.
These notes specified for work safety must be absolutely observed and followed.
Exercise special care in these cases to avoid accidents, personal injury and property
damage.
WARNING! Danger of injury or life!
This symbol identifies notes whose non-observance can lead to impaired
health, injuries, permanent bodily harm or death.
WARNING! Danger of electrical current!
This symbol alerts to dangerous situations through electrical current.
Non-observance of the safety note presents danger of serious injuries or death.
The work activities to be performed may only be carried out by a trained
professional electrician.
ATTENTION! Danger of property damage!
This symbol identifies notes whose non-compliance may lead to damages,
malfunction and/or failure of the product.
☞
NOTE!
This symbol points out tips and information to be observed for efficient and trouble-free
handling of the product.
*) If included in scope of delivery (design-specific).
**)
ATTENTION! Only for roughening the outer jacket!
