63
Chapter 8: Phantom Remote Control Unit

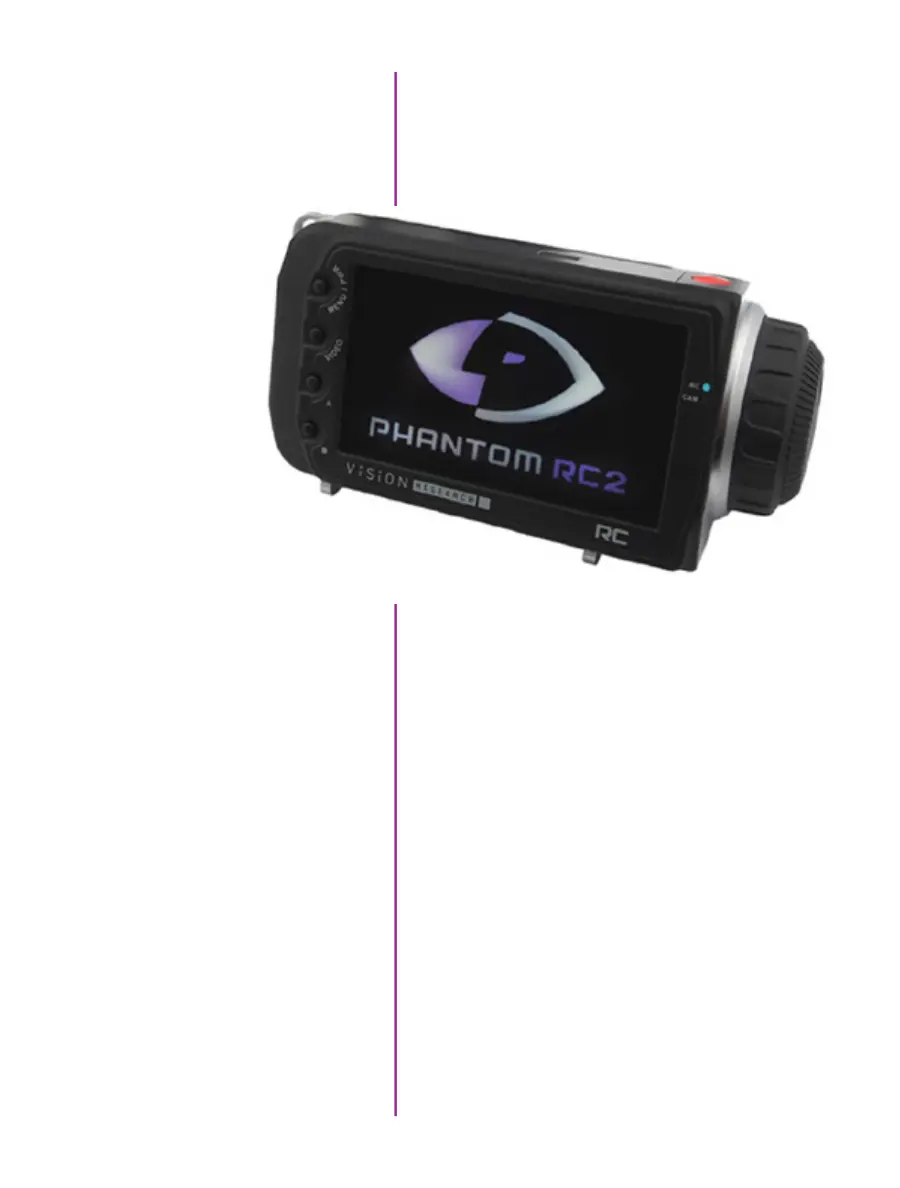

The Phantom Remote Control Unit (RCU) is a small,
lightweight, hand-held controller which allows you to
adjust most settings on your camera as well as view and
save recorded cines to the CineMag. The RCU is available
in both wired and wireless versions. Both versions will
connect with an included 5 meter cable direct to the back
of the camera. Alternatively, the wireless model includes
a Bluetooth dongle that allows for operation from up to
100 meters.
The 5" active TFT display is easy to use – even outdoors.
The display can act as an HD-SDI video monitor, a
fullfeatured touch-screen controller, or both. An SDI
cable connection is required to view the HD-SDI output
of the camera on the RCU screen. Video is not transmitted
via Bluetooth.
Phantom Remote
Control Unit
8
