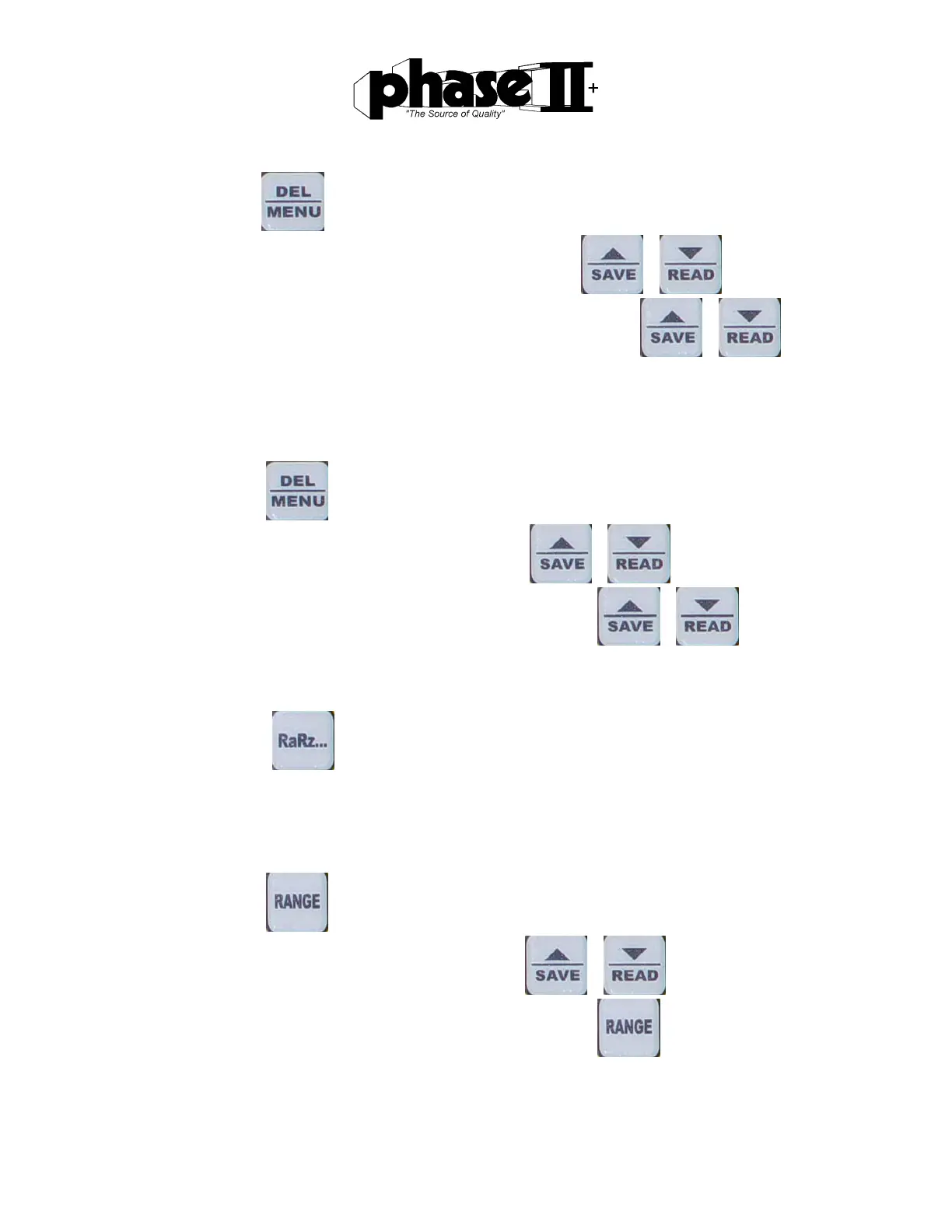

c) Setting the Filter Profile: (Most typical applications should be set for RC Filter)
Press the
button and hold for approx. 3 seconds until “Filt” appears on the
display. To toggle between the filter, press either the
or buttons.
Once selection is made, Press any other button EXCEPT the
or to
save selection.
d) Selecting Inch (μin) or Metric (μm) readout:
Press the button and hold it until “Unit” appears on the display. To toggle
between the measuring units, press either the
or buttons. Once
selection is made, Press any other button EXCEPT the
or to save
selection.
e) Selection of Roughness Scale: Ra, Rz, Rq(Rms), Rt
Press the
button to toggle through the 4 available roughness scales
f) Selecting Range (Evaluation Length) readout: 1-5
This parameter is the part of the traversing length from where the values of the surface
parameters are determined (1L, 2L, 3L, 4L, 5L)
Press the button and hold it until “1L” appears on the display. To change
from 1-5 evaluation lengths, press either the
or buttons. Once
selection is made, Press any other button EXCEPT the
to save selection.
