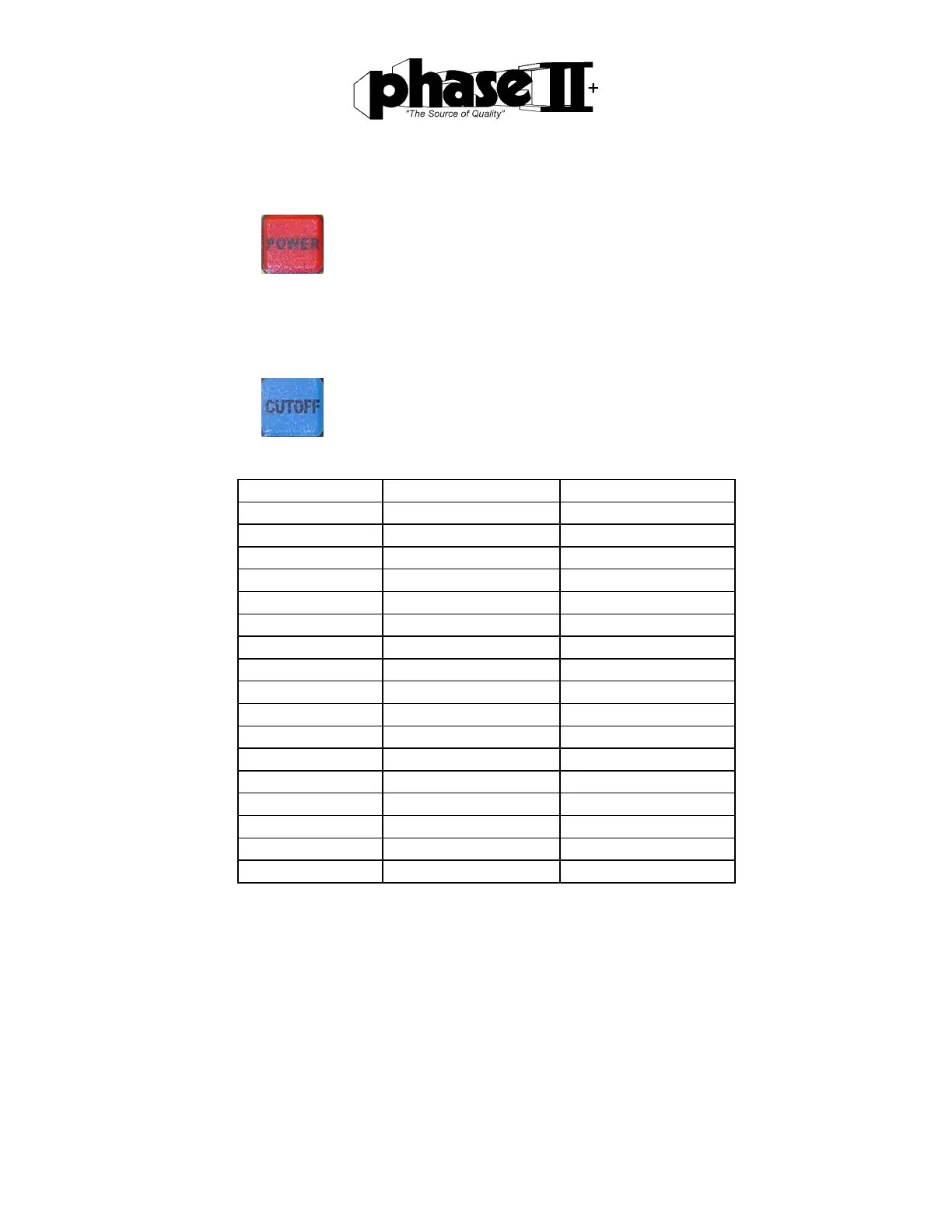

System Set-Up Procedure:
a) On / Off
Press the Button to power the unit on. This instrument will save all parameters
that were set from the last performed test. Assuming that the parameters are correct for
the current application, you can begin testing at your convenience.
b) Setting the Cut-Off Length:
Press the button to toggle between the 3 available Cut-Off lengths:
(0.8mm, .25mm, 2.52mm)
(most common applications should be set for 2.5mm)
Ra
(µ
m
)
Rz
(µ
m
)
SAMPLING LENGTH/mm
>5 - 10 20 - 40 2.5mm
>2.5 - 5 >10 - 20 2.5
>1.25 - 2.5 >6.3 - 0 0.8
>0.63 - 1.25 >3.2 - 6.3 0.8
>0.32 - 0.63 >1.6 - 3.2 0.8
>0.25 - 0.32 >1.25 - 1.6 0.25
>0.20 - 0.25 >1.0 - 1.25 0.25
>0.16 - 0.20 >0.8 - 1.0 0.25
>0.125 - 0.16 >0.63 - 0.8 0.25
>0.1 - 0.125 >0.5 - 0.63 0.25
>0.08 - 0.1 >0.4 - 0.5 0.25
>0.063 - 0.08 >0.32 - 0.4 0.25
>0.05 - 0.063 >0.25 - 0.32 0.25
>0.04 - 0.05 >0.2 - 0.25 0.25
>0.032 - 0.04 >0.16 - 0.2 0.25
>0.025 - 0.032 >0.125 - 0.16 0.25
>0.02 - 0.025 >0.1 - 0.125 0.25
