14 | Page
V4.1

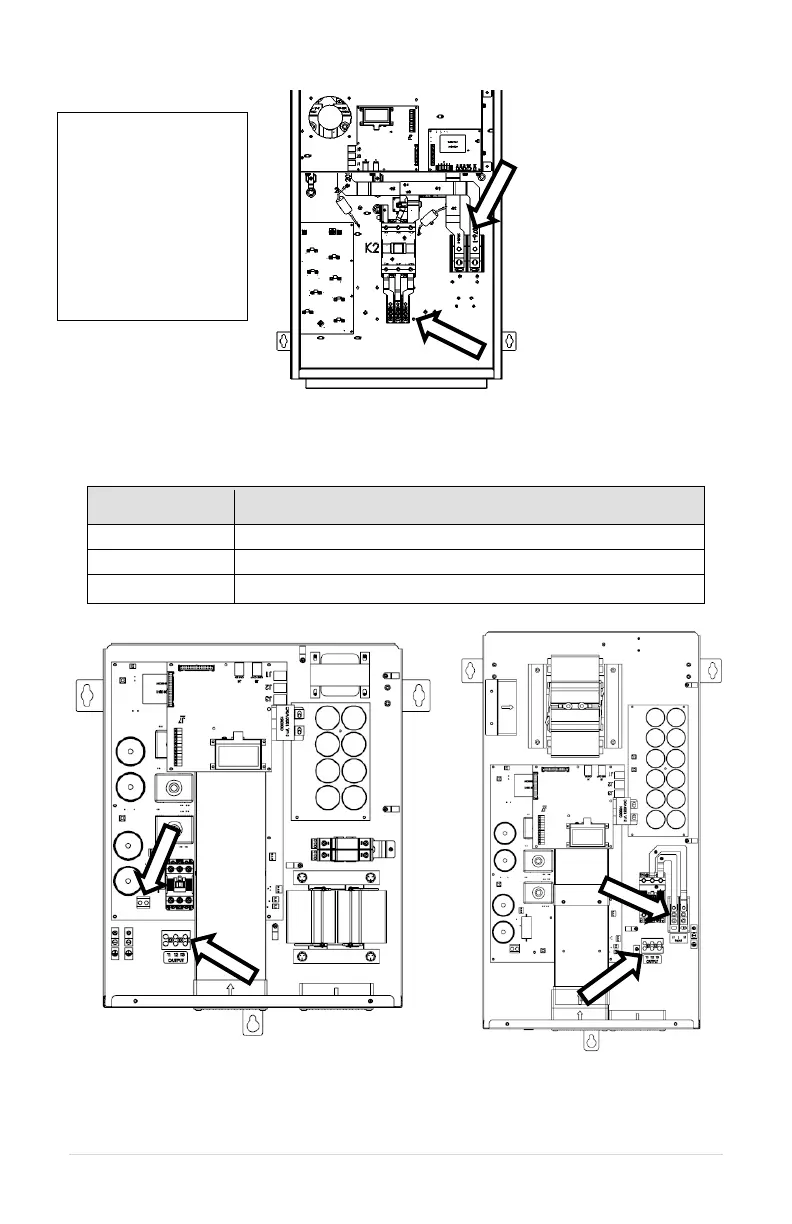

Figure 8 – PT Large Frame Field Wiring Terminals
Table 26 – Power Terminal Descriptions
Terminal Name Description
L1, L2
Single phase input power terminals
T1, T2, T3
3 Phase output power terminals, T3 is the “manufactured” leg.
GND
Earth ground
Figure 9 – PTE Field Wiring Terminals: PTE007,
PTE007QT, PTE010, PTE010QT, PTE207,
PTE407, PTE407QT PTE410, PTE415QT,
PTE420QT
Figure 10 – PTE Field Wiring
Terminals: PTE015, PTE020,
PTE210, PTE215, PTE220
Small Frame Models:
PT407, PT410, PT415,
PT420
Medium Frame Models:
PT007, PT010, PT020,
PT430
Large Frame Models:
PT030, PT040, PT050,
PT060, PT075, PT440,
PT450, PT460, PT475,
PT4100, PT4150, PT4175
