For 460V PTE models (PTE4XX), disconnect wires from JL2. You may need to remove the
baffle covering the heatsink to access JL2. Next, use a multi-meter to measure between L1
and L2, then measure between L2 and JL3B. If either capacitance measured is below the
50% Capacitance value in Table 32, contact Phase Technologies for replacement. Be
sure to reconnect wires to JL2 before powering unit on again.

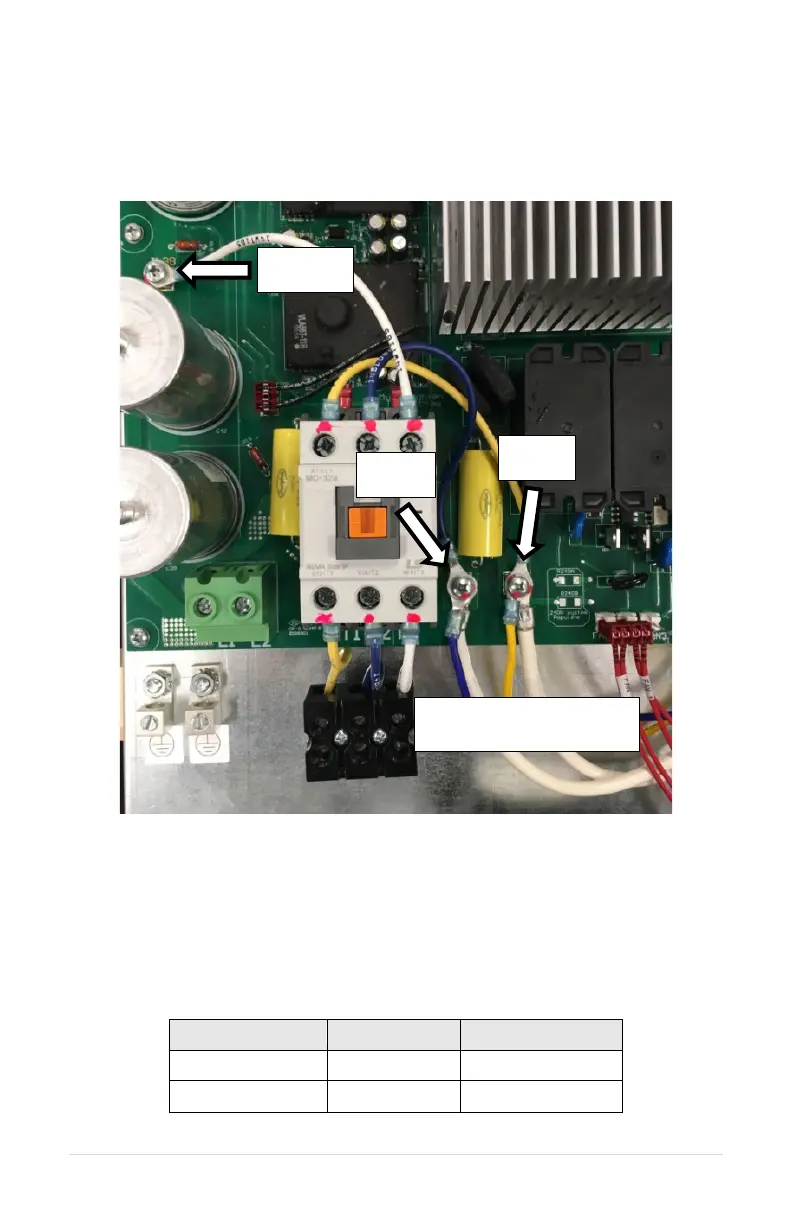

Figure 31 – Measuring PTE4XX Filter Capacitors
Fuses
There are several replaceable fuses in the converter. Each fuse is assigned a designator,
indicated by its label. Contact the Phase Technologies Service Department for replacement
fuses.
Table 33 – Fuse Information
Disconnect wires from JL2
before measuring.
