30 | Page
V4.1
Table 32 – PT Nominal Filter Capacitor Values in MicroFarads (uF)
Converter Model
Nominal
Capacitance
50%
Capacitance
PT407, PT410, PT415, PT420
10 uF
5 uF
PT007, PT430
10 uF
5 uF
PT010, PT020
20 uF
10 uF
PTE007, PTE007QT, PTE010, PTE010QT,
PTE015, PTE020, PTE407, PTE407QT
PTE410, PTE410QT, PTE415QT, PTE420QT
20 uF 10 uF
PTE207QT, PTE210QT, PTE215QT,
PTE220QT
20 uF
10 uF
PT030, PT040, PT440, PT450, PT460, PT475
40 uF
20 uF
PT050, PT060, PT075, PT4100, PT4150,
PT4175
80 uF 40 uF
For 230V and voltage doubling PTE models (PTE0XX and PTE2XX), disconnect wires
from JL2 and use a multi-meter to measure between JL1 and JL2, then measure between
JL2 and JL3B. If either capacitance measured is below the 50% Capacitance value in
Table 32, contact Phase Technologies for replacement.

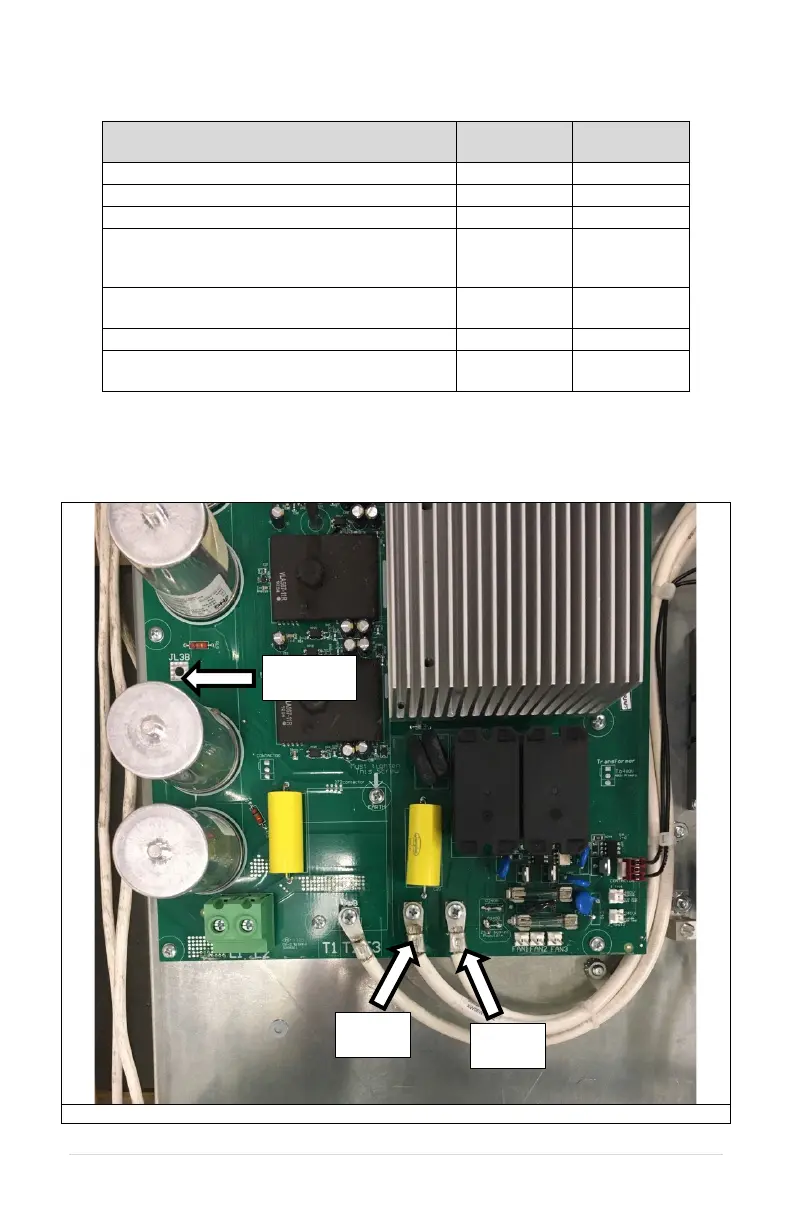

Figure 30 – Measuring PTE0XX Filter Capacitors
JL1
JL2
JL3B
