Notice
Please add the following NOTICE to the Service Manuals listed below.
1. Effective Models and Production
MDF-C8V1-xx
S/N: 16100284~
* where 'xx' denotes all model variants, except PC model.
2.
Change description
(1) Change cooling circuit from SANYO compressor to HITACHI compressor.
Important :
(1)
This change is NOT compatible with unit before change,
because unit base is different between SANYO comp. and HITACHI comp.
SANYO comp. is used for current parts list.
HITACHI comp. is used for new parts list, will be issued.
(2)
Model code of function code F17 in service mode should be set by specified compressor.
Table Function code F17
(Note : Product of Model code 007 is still not exist in the market, as of issue date.)
(a) SANYO comp. (b) HITACHI comp.

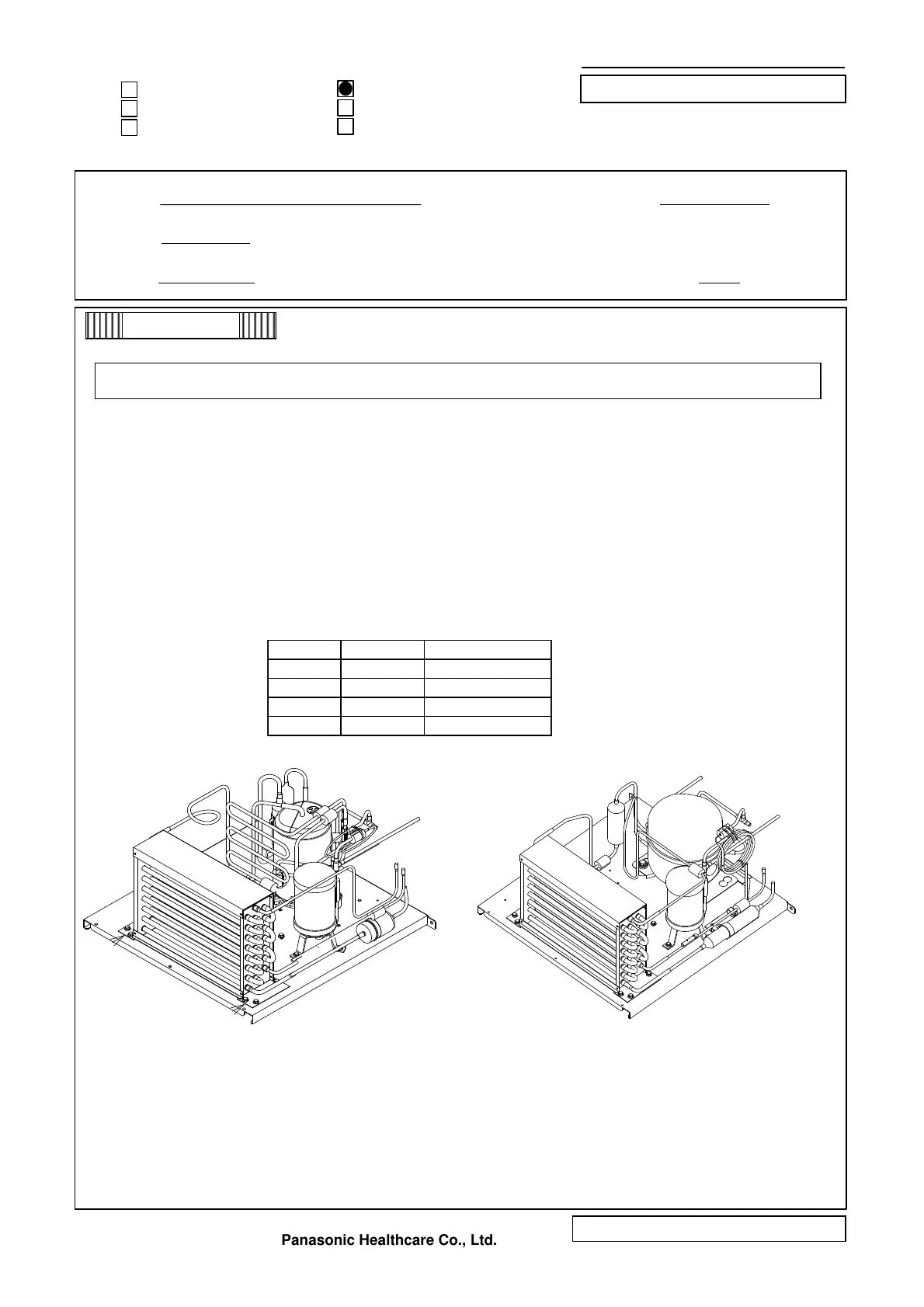

Fig. Image of part of cooling circuit
(2) Service manual
P. 5
The "Cooling unit parts" is added the contents to the sheet "Page 2 of 27".
P. 6 The "Cooling circuits" is added the contents to the sheet "Page 3 of 27".
P. 8 The "Electrical Parts" is added the contents to the sheet "Page 4 of 27".
P. 10 The "Wiring Diagram" is added the contents to the sheet "Page 5 of 27".
P. 25 The "Test data" is added the contents to the sheet "Page 6 of 27".
Panasonic Healthcare Co., Ltd.
CORRECTION
SERVICE
PRODUCT IMPROVEMENT
PRODUCTION CHANGE
ADD INFORMATION
FOR RoHS
FILE NO.
Category: Ultra Low Temperature Freezer Date: Jan. 31, 2017
Model: MDF-C8V1
Ref No: SM9910171 Issued No. E418
REFERENCE NO. SM9910171-09
NOTICE
Because of parts discontinuance, below parts have been changed.
Model code Compressor Destination
001 SANYO All model, except PC
003 SANYO PC model
005 HITACHI All model, except PC
007 HITACHI PC model
