Philips 14PV360 - Page 44

TEXT CBA PARTS LOCATION GUIDE
Ref No. Position Ref No. Position Ref No. Position Ref No. Position
C901 A-2 C923 A-2 D911 B-1 R914 B-2
C902 A-3 C924 B-1 D912 B-1 R915 A-2
C904 A-3 C925 B-2 R916 B-1
C905 A-3 C926 B-2 IC901 B-2 R917 B-1
C906 B-3 C927 A-2 IC902 A-2 R919 B-1
C908 B-3 C928 B-2 R920 B-2
C909 C-3 C929 B-3 Q901 B-2 R921 B-1
C910 C-3 C930 B-2 Q903 B-2 R922 A-2
C911 B-3 Q904 A-1 R923 A-2
C912 B-1 CN901 A-1 R930 A-1
C914 B-2 CN902 C-1 R901 A-3 R931 B-1
C915 B-2 R902 A-2 R932 C-2
C916 B-2 D901 C-2 R903 C-2 R933 C-2
C917 B-2 D902 C-2 R904 B-1 R934 C-2
C918 B-2 D903 C-2 R905 C-2 R936 B-2
C919 B-2 D904 C-2 R906 C-2 R937 B-2
C920 B-2 D908 C-2 R907 C-2 R940 B-2
C921 A-1 D909 B-2 R908 C-2
C922
A-2
D910
B-1
R913
C-2
X901
B-2
RESISTORSCAPACITORS DIODES
ICS
TRANSISTORS
CAPACITORS
RESISTORS
CONNECTORS
DIODES
CRYSTAL OSCILLATOR

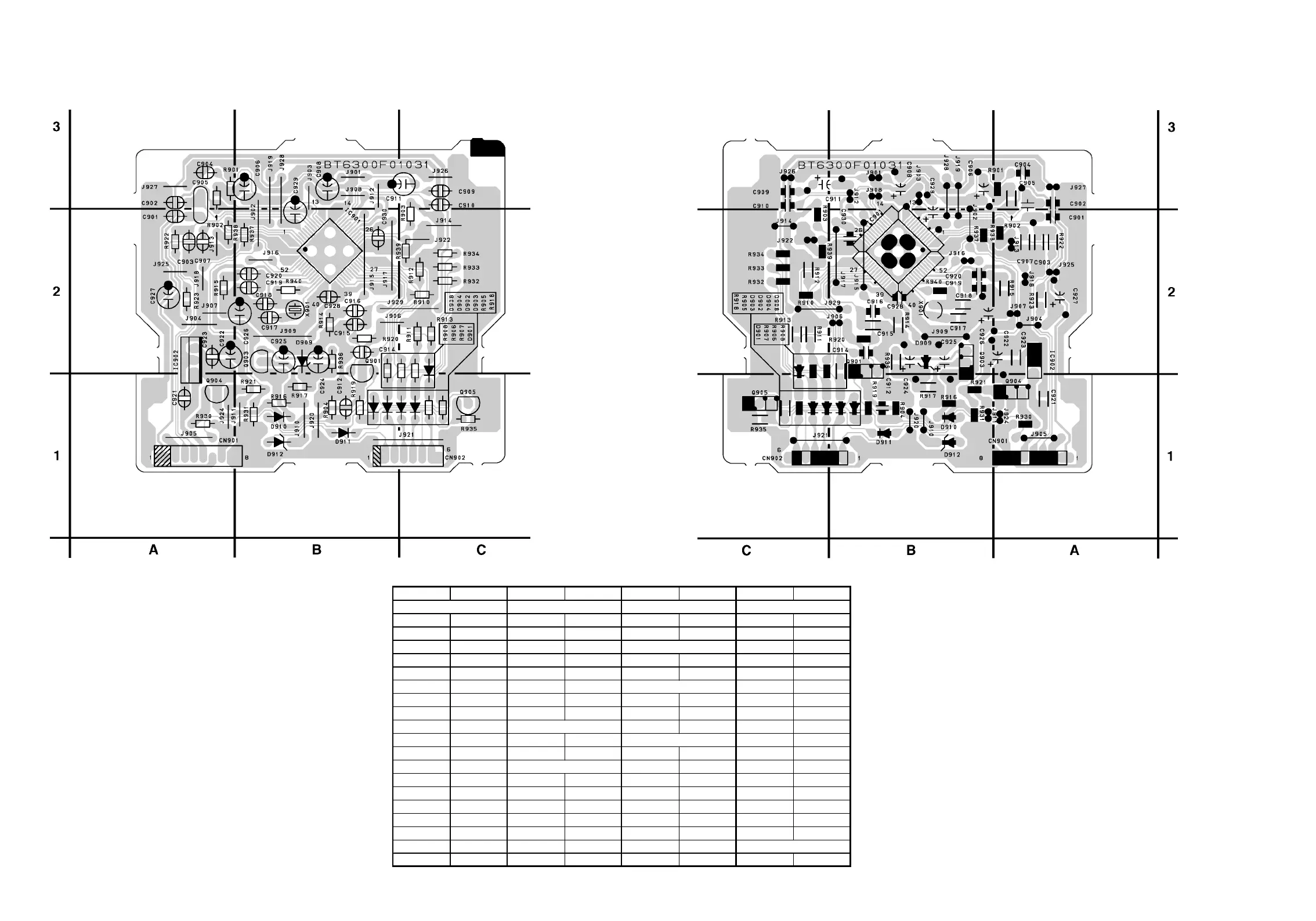

Text CBA Top View
Text CBA Bottom View
1-8-39 1-8-40
BT6300F01031
