Philips 14PV360 - Page 45

Q503
Collector
WF16
Q502
Collector
WF15
Q501
Collector
WF14

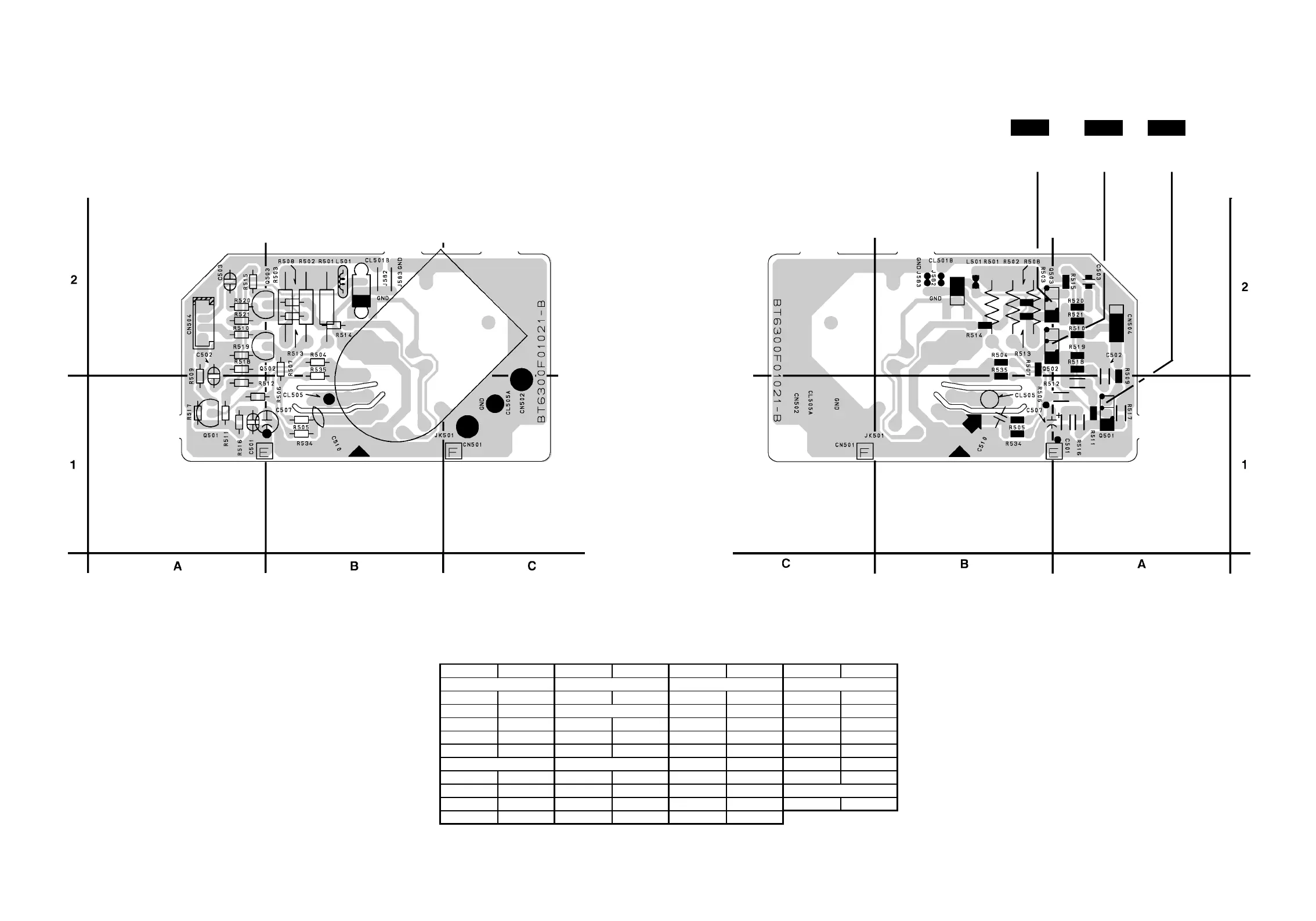

CRT CBA Top View
1-8-41 1-8-42 BT6300F01021-B
CRT CBA Bottom View
Ref No. Position Ref No. Position Ref No. Position Ref No. Position
C501 A-1 L501 B-2 R505 B-1 R515 A-2
C502 A-2 R506 B-1 R516 A-1
C503 A-2 Q501 A-1 R507 B-2 R517 A-1
C507 B-1 Q502 A-2 R508 B-2 R518 A-2
C510 B-1 Q503 B-2 R509 A-1 R519 A-2
R510 A-2 R520 A-2
CN501 C-1 R501 B-2 R511 A-1 R521 A-2
CN504 A-2 R502 B-2 R512 A-1 MISCELLANEOUS
CL501B
B-2
R503
B-2
R513
B-2
JK501
B-1
CL505A
C-1
R504
B-2
R514
B-2
RESISTORS
RESISTORS RESISTORSCAPACITORS
CONNECTORS
COIL
TRANSISTORS
