Philips 150S6FB/27 - Mechanical Instructions

13

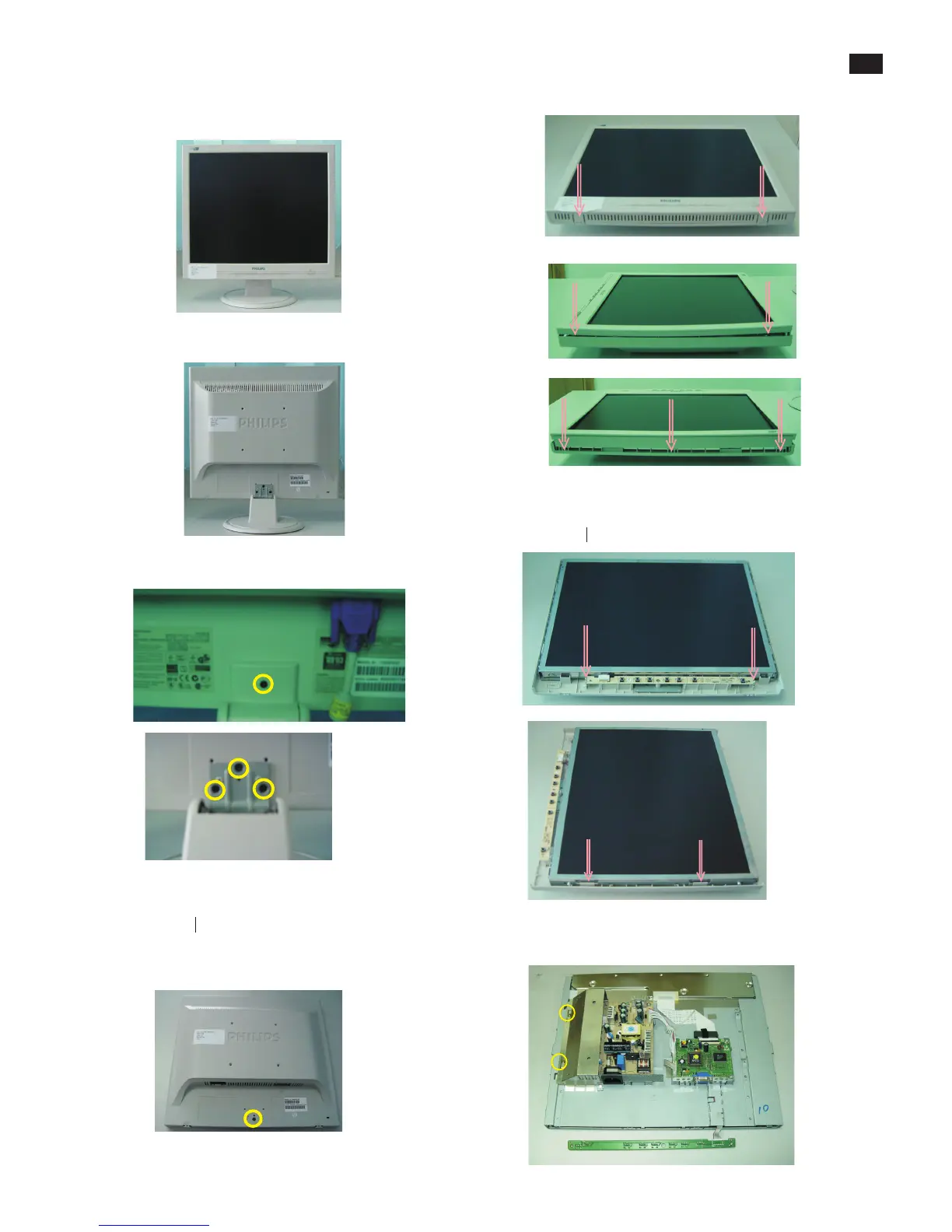

Mechanical Instructions
Front View
Back View
Step1. Remove the base
-Remove the screws as shown in Fig.3 & Fig.4
Step2. Remove the Front Bezel
-Remove the one screw as shown in Fig.5
-Use the thin " " screw driver to open the clicks as shown
in Fig.6-8
Step3.Remove the Back cover
- Remove the two clicks as shown in Fig.9 ,then remove the Control
board
-Use the thin " " type screw driver to open the clicks as shown in Fig.10
Step4. Remove the Matel frame board
- Remove the two screws as shown in Fig.11
- Remove the matel frame as shown in Fig.12
Fig.1
Fig.2
Fig.4
Fig.5
Fig.6
Fig.9
Fig.10
Fig.11
Fig.3
Fig.8
Fig.7
