Philips 150S6FB/27 - Block Diagram

20

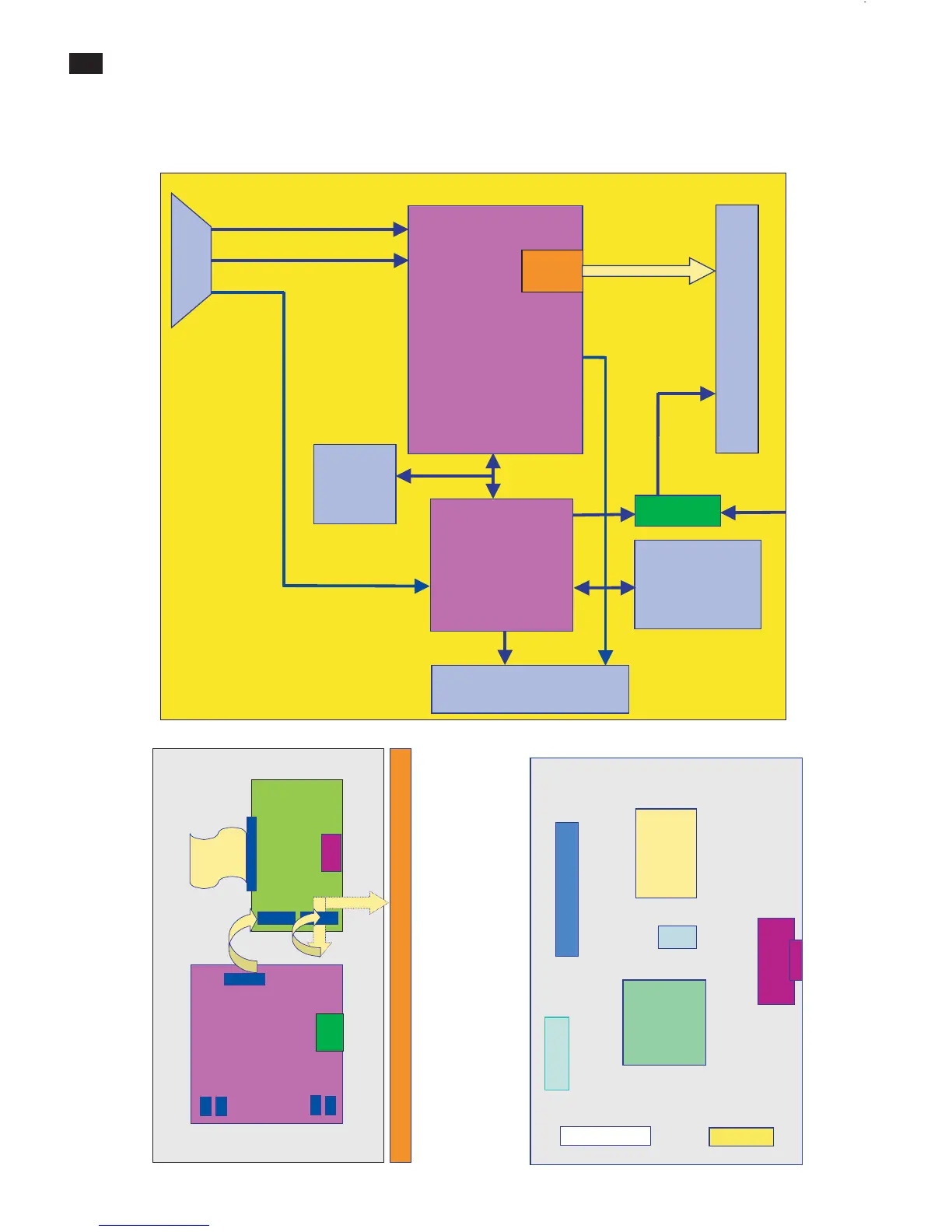

Block Diagram
SCALER
NT68521A
EEPROM
M24C16
DDCSDA DDCSCL
R/G/B
CLK and R/G/B
DATA
(LVDS interface)
MCU (64K)
NT68F633
CLK: 12MHz
IICSDA
IICSCL
HS/VS
Connector to
Control
Board
Connector to Panel
VIDEO
Input
LVDS
Tx
Panel_PWR
5V/12V
D-SUB
Connector to
Inverter
BL_CTRL
Brightness
Buy
Buy
-
-
In
In
AC
AC
-
-
DC Power supply
DC Power supply
Inverter and
Inverter and
DC
DC
-
-
DC converter
DC converter
(150mm x 135mm)
(150mm x 135mm)
Scalar(LVDS interface)
Scalar(LVDS interface)
Analog Input
Analog Input
(94mm x 74mm)
(94mm x 74mm)
AC
input
Connector
Connector
30 pin wafer
Connector Connector
30 Pin FFC Cable
Connector
11P-Connector
D_SUB
7P-Connector
CONTROL BD
Scaler IC
(NT68521A)
11-Pin
Power Input
connector
LVDS Interface Connector
MCU
NT68F633L
7-Pin Control
Output
Connector
EEPROM
D_SUB
12MHz
XTAL
System Block Diagram
System Block Diagram
Scaler
Scaler
Board Layout
Board Layout
Scaler
Scaler
Board Block Diagram
Board Block Diagram
