Philips 170B2M - Pin Assignment

• Relative humidity 20% to 80%
• System MTBF 50K hrs (including CCFL 50K hrs)
* These information are subject to change without notice.
* Resolution 1280x1024, standard size, contrast max., brightness 50%, 9300° K, full white pattern,
without audio/USB.
RETURN TO TOP OF THE PAGE
Pin Assignment

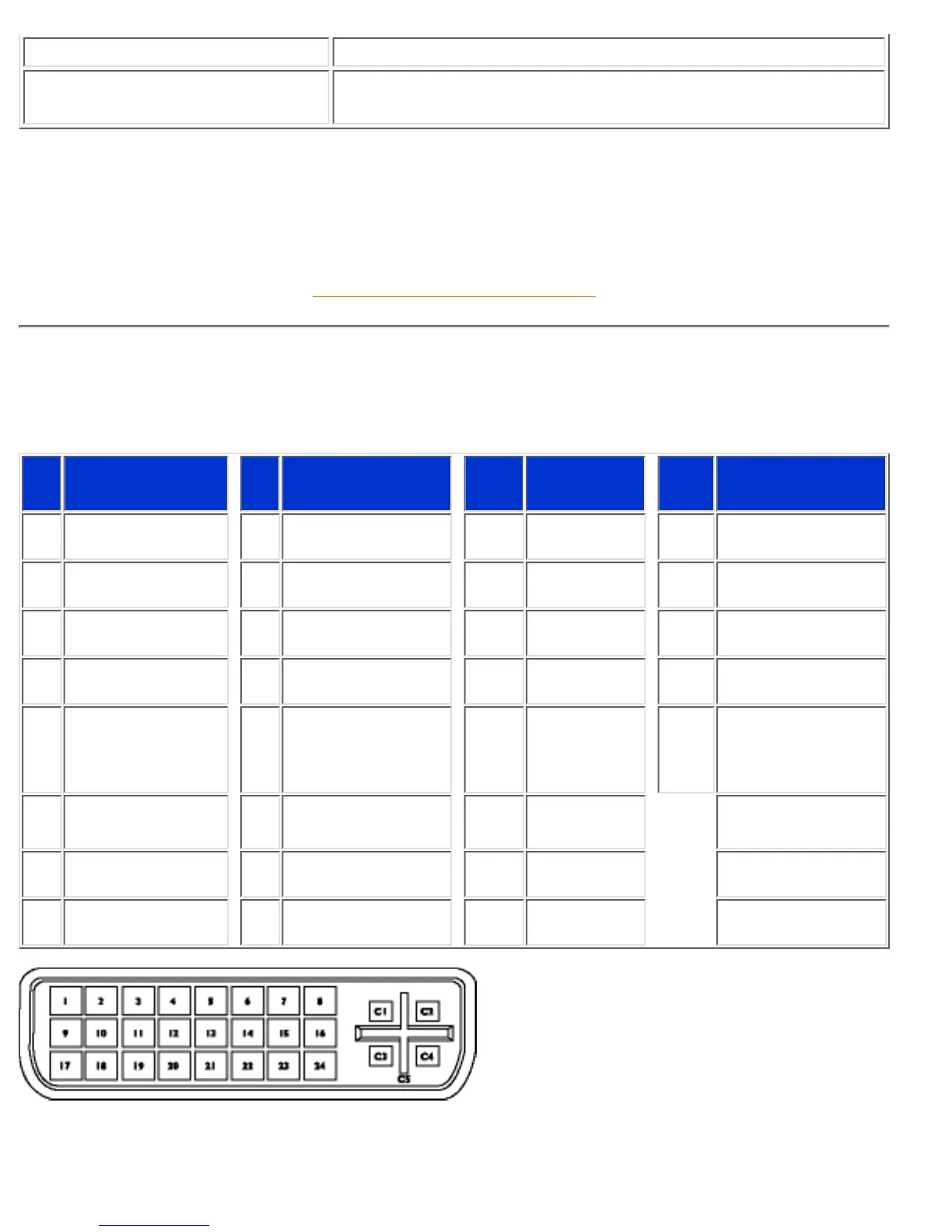

1. The digital/analog DVI-I onnector contains 29 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
Pin
No.
Signal
Assignment
Pin
No.
Signal
Assignment
Pin
No.
Signal
Assignment
Pin
No.
Signal
Assignment
1 TMDS Data 2- 9 TMDS Data 1- 17
TMDS Data
0-
C1
Analog Red Video
Out
2 TMDS Data 2+ 10 TMDS Data 1+ 18
TMDS Data
0+
C2
Analog Green
Video Out
3
TMDS Data 2/4
Shield
11
TMDS Data 1/3
Shield
19
TMDS Data
0/5 Shield
C3
Analog Blue Video
Out
4 TMDS Data 4- 12 TMDS Data 3- 20
TMDS Data
5-
C4
Analog Horizontal
Sync
5 TMDS Data 4+ 13 TMDS Data 3+ 21
TMDS Data
5+
C5
Analog Common
Ground Return
(Red, Green, Blue
Video Out)
6 DDC Clock 14 +5V Power 22
TMDS Clock
Shield
7 DDC Data 15
Ground (+5V,
Analog H/V Sync)
23
TMDS
Clock+
8
Analog Vertical
Sync
16 Hot Plug Detect 24 TMDS Clock-
