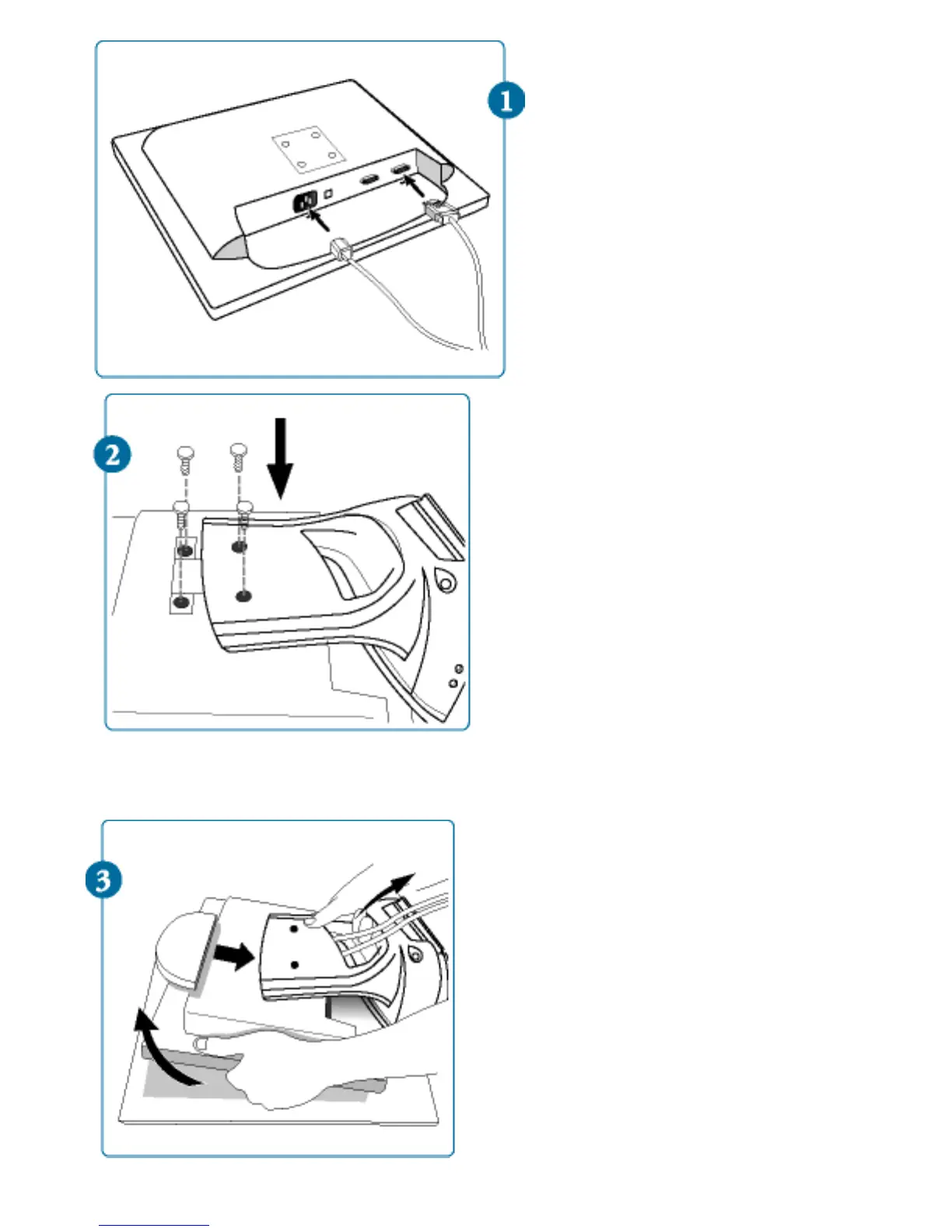

1) Put monitor face down on the
safe surface and plug in the cables
into connectors.
2) Mount the base onto the monitor
body and fix four screws securely.
3) Lift the monitor body and thread
all cables through the hole at the
bottom of the base.
