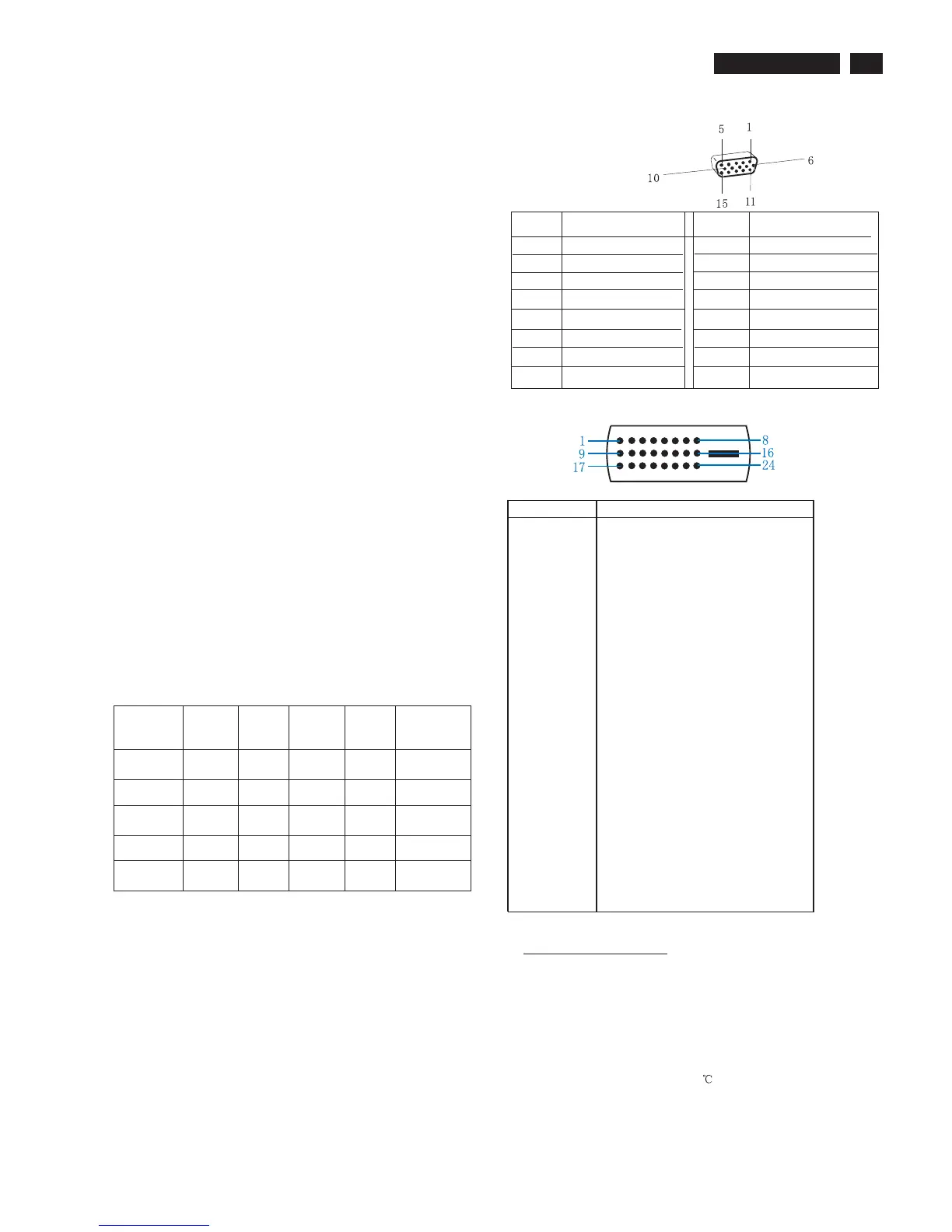

Technical Data
HUDSON 8
Pin Assignment
Input DVI-D connector pin
Red video input
Green video input
Blue video input
GND
Cable detect
Red video GND
Green video GND
Blue video GND
DDC +3.3V OR +5V
GND
GND
Serial data line (SDA)
H-sync
V-sync
Data clock line (SCL)
7
8
6
5
4
3
2
1
9
10
11
12
13
14
15
Pin No.
Pin No.
Assignment
Assignment
Pin No. Description
1
T.M.D.S. data2-
2
T.M.D.S. data2+
3
T.M.D.S. data2 shield
4
No Connect
5
No Connect
6
DDC clock
7
DDC data
8
No Connect
9
T.M.D.S. data1-
10
T.M.D.S. data1+
11
T.M.D.S. data1 shield
12
No Connect
13
No Connect
14
+5V Power
15
Ground (for +5V) - Cable detect
16
Hot plug detect
17
T.M.D.S. data0-
18
T.M.D.S. data0+
19
T.M.D.S. data0 shield
20
No Connect
21
No Connect
22
T.M.D.S clock shield
23
T.M.D.S. clock+
24
T.M.D.S. clock-
STATUS H-sync V-sync Video Power LED
On On On Active <36W Green
Stand-by Off On Blanked <1W
Amber LCD
Suspend On Off Blanked <1W
Amber LCD
Off Off Off Blanked <1W Amber LCD
DC Power off N / A <1W LCD Off
Power Management Definition:
Environmental conditions
Operating
- Temperature : 0 to 35 degree C
- Humidity : 80% max
- Altitude : 0-3658m
- Air pressure : 600-1100 mBAR
Storage
- Temperature : -20 to 60 degree C
- Humidity : 85% max ( < 40
)
- Altitude : 0-12192m
- Air pressure : 300-1100 mBAR
Note: recommend at 5 to 35°C, Humidity less than 60 %
Type NR. : LPL, LM190WX1-TLA1 (TN)
Number of Pixels. : 1440 (H) x900 (V)
Physical Size. : 427.2(H) x 277.4(V) x 15.3(D) mm(Typ.)
Pixel Pitch. : 0.095*RGB(H)mm x 0.285(V)mm
Color pixel arrangement. : RGB vertical stripes
Support Color. : 16.7M colors
Display Mode. : Normally White
Backlight. : CCFL edge light system
Active area. (WXH). : 410.4 (H) x 256.5 (V)
Viewing Angle (CR>=10). : R/L 160(Typ.), U/D 160(Typ.)
Contrast ratio. : 1000:1(Typ.) 700:1(Min.)
White luminance. : Original color 250 nits (Min),
300 nits (Typ.)
Type NR. : CMO, M190A1-L06 (TN)
Number of Pixels. : 1440 (H) x900 (V)
Physical Size. : 427.2(w)*277.4(h)*17.0(d) (Typ) mm
Pixel Pitch. : 0.285 mm x 0.285 mm
Color pixel arrangement. : RGB vertical stripes
Support Color. : 16.7M colors ( 6 bits+FRC )
Display Mode. : Normally White
Backlight. : CCFL edge light system
Active area. (WXH). : 410.4 x 256.5mm (19.05” diagonal)
Viewing Angle (CR>=10). : 75/75 (min), 85/85 (typ) for Horizontal &
70/70 (min), 80/80 (typ) for Vertical
Contrast ratio. : 850:1(Typ.) 500:1(Min.)
White luminance. : Original color 230 nits (Min), 300 nits (Typ.)
Scanning frequencies
H-Frequency. : 30K - 83 KHz
V-Frequency. : 56 - 76 Hz
Video dot rate. : < 140 MHz
Power input. : 90-264 V AC, 50/60 ± 2Hz
Power consumption. : < 36W ( Typ.)
