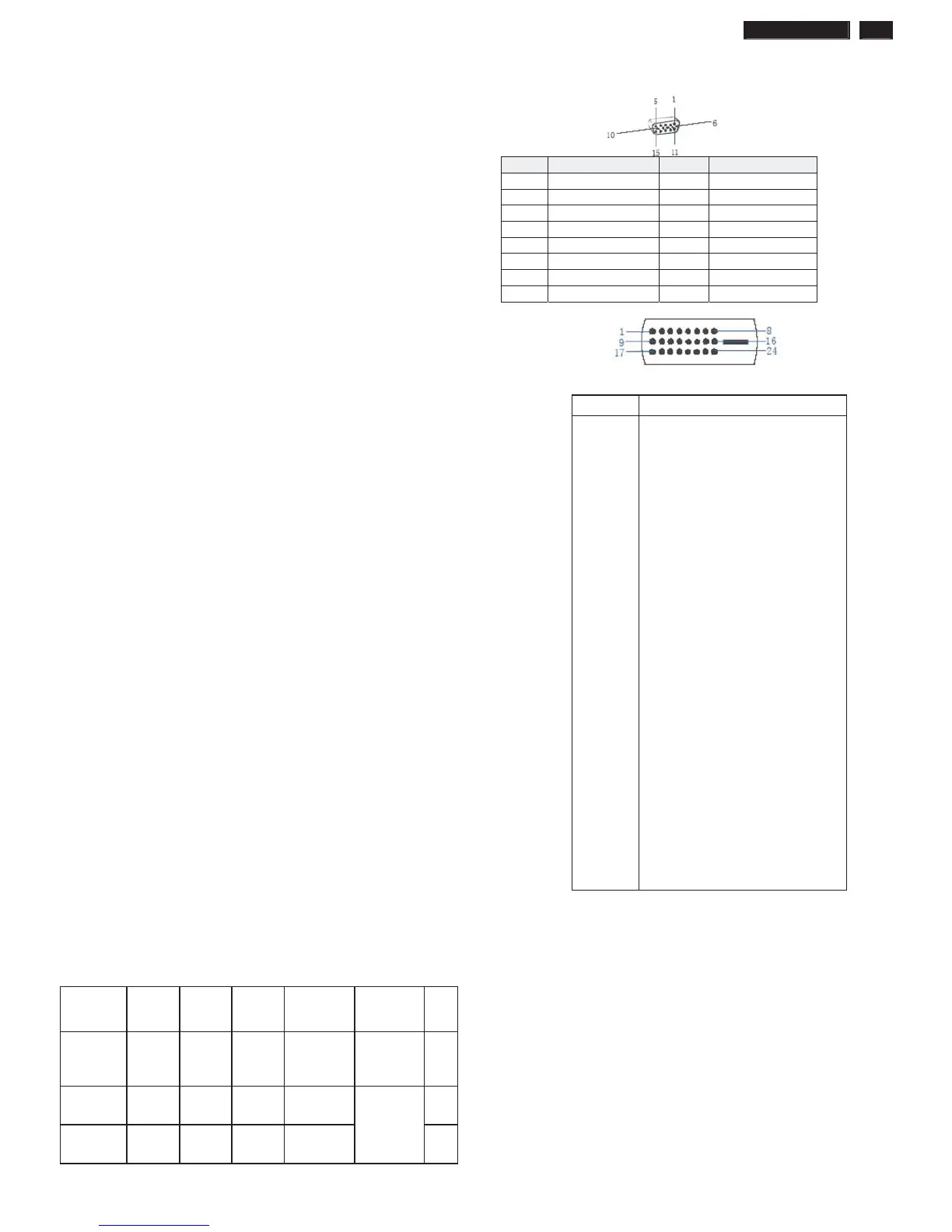

220BL2 LCD 3
Technical Data
LGD
Type NR. : LGD LM220WE5-TLC1
Resolution : 1680 x 1050 (WSXGA+)
Outside dimensions
: 493.7(H) x 320.1 (V) x 14.5(D) mm
(Typ.)
Pitch (mm) : 0.282mm x 0.282mm
Color pixel arrangement
: 1680 horizontal By 1050 vertical Pixels.
RGB stripe arrangement
Display surface
: Hard coating (3H), Anti-glare treatment
of the front polarizer
Color depth : 16.7M colors
Backlight : WLED
Active area (W x H)
: 21.995 inches(558.673mm) diagonal
(Aspect ratio 16:10)
View angle (CR>=10) : R/L 170(Typ.), U/D 160(Typ.)
Contrast ratio : >1000:1 (Typ)
White luminance : 250 cd/m2(Typ. Center 1 point)
Color gamut : >=68%
Response time : <=5 ms (Typ)
Vertical frequency range : 50~75Hz
Scanning frequencies
Hor. : 30 – 83 K Hz
Ver. : 56 - 76 Hz
Video dot rate : < 170 MHz for VGA and < 170 MHz for DVI
Power input : 90-264 V AC, 50/60 ± 3 Hz
Power consumption : On mode: < 50W (max.)
Functions:
(1) D-SUB analog R/G/B separate inputs,
H/V sync separated, Composite (H+V) TTL
level, SOG sync
(2) DVI digital Panel Link TMDS inputs,
HDCP supported
(1) D-SUB analog R/G/B separate inputs, H/V sync separated,
Composite (H+V) TTL level, SOG sync
(2) DVI digital Panel Link TMDS inputs
Ambient temperature: 0
q
C - 40
q
C
Power input connection
Power cord length : 1.8 M
Power cord type : 3 leads power cord with protective earth plug.
Power management
The monitor must comply with the Microsoft On Now specification,
and meet EPA requirements.
Mode HSYNC VSYNC Video Pwr-cons. Indication Rec.
time
<50 W Power-On On On active
(max)
White LED --
Power
Saving
Off Off blanked < 0.2W Blanking
White LED
< 3 s
DC Power
Off
ʳʳ N/A < 0.2W LED Off ʳ
PIN No. SIGNAL PIN No. SIGNAL
1 Red 9 DDC +3.3V or +5V
2 Green/ SOG 10 Logic GND
3 Blue 11 Sense (GND)
4 Sense (GND) 12 Bi-directional data
5 Cable Detect (GND) 13 H/H+V sync
6 Red GND 14 V-sync
7 Green GND 15 Data clock
8 Blue GND
ʳʳ
Susceptibility of display to external environment
Operating
- Temperature : 0 to 35 degree C
- Humidity : 80% max
- Altitude : 0-3658m
- Air pressure : 600-1100 mBAR
Storage
- Temperature : -20 to 60 degree C
- Humidity : 95% max
- Altitude : 0-12192m
- Air pressure : 300-1100 mBAR
Note: recommend at 5 to 35°C, Humidity less than 60 %
Pin No. Description
1 T.M.D.S. data2-
2 T.M.D.S. data2+
3 T.M.D.S. data2 shield
4 No Connect
5 No Connect
6 DDC clock
7 DDC data
8 No Connect
9 T.M.D.S. data1-
10 T.M.D.S. data1+
11 T.M.D.S. data1 shield
12 No Connect
13 No Connect
14 +5V Power
15 Ground (for +5V)
16 Hot plug detect
17 T.M.D.S. data0-
18 T.M.D.S. data0+
19 T.M.D.S. data0 shield
20 No Connect
21 No Connect
22 T.M.D.S clock shield
23 T.M.D.S. clock+
24 T.M.D.S. clock-
