Philips 220BL2CB/00 - Page 50

1 1
2 2
3 3
4 4
5 5
A A B B C C D D
LOUT+
ROUT+
ROUT-
LOUT-
AUDIO_GND
AUDIO_GND
AUDIO_GND
Ping Assignment 8 - LOUT- 7 - LOUT+ 6 - ROUT+ 5 - ROUT- 4-GND 3 - HP_L 2 - HP_SE 1 - HP_R
TP3 TP4
CN1
2K62095108
1 2 3 4 5 6 7 8
TP2
ZD5
NC_PESD5V0S1BA
1 2
TP5
ZD2 TZMC6V2
A K
ZD6
NC_PESD5V0S1BA
12
TP6
ZD3 TZMC6V2
A K
ZD7
NC_PESD5V0S1BA
12
CN2
2K62244104
1
1
2
2
3
3
4
4
ZD4 TZMC6V2
A K
TP7
TP8
ZD1 TZMC6V2
A K
M1
2B10254121
3 5 4 2 1
TP1

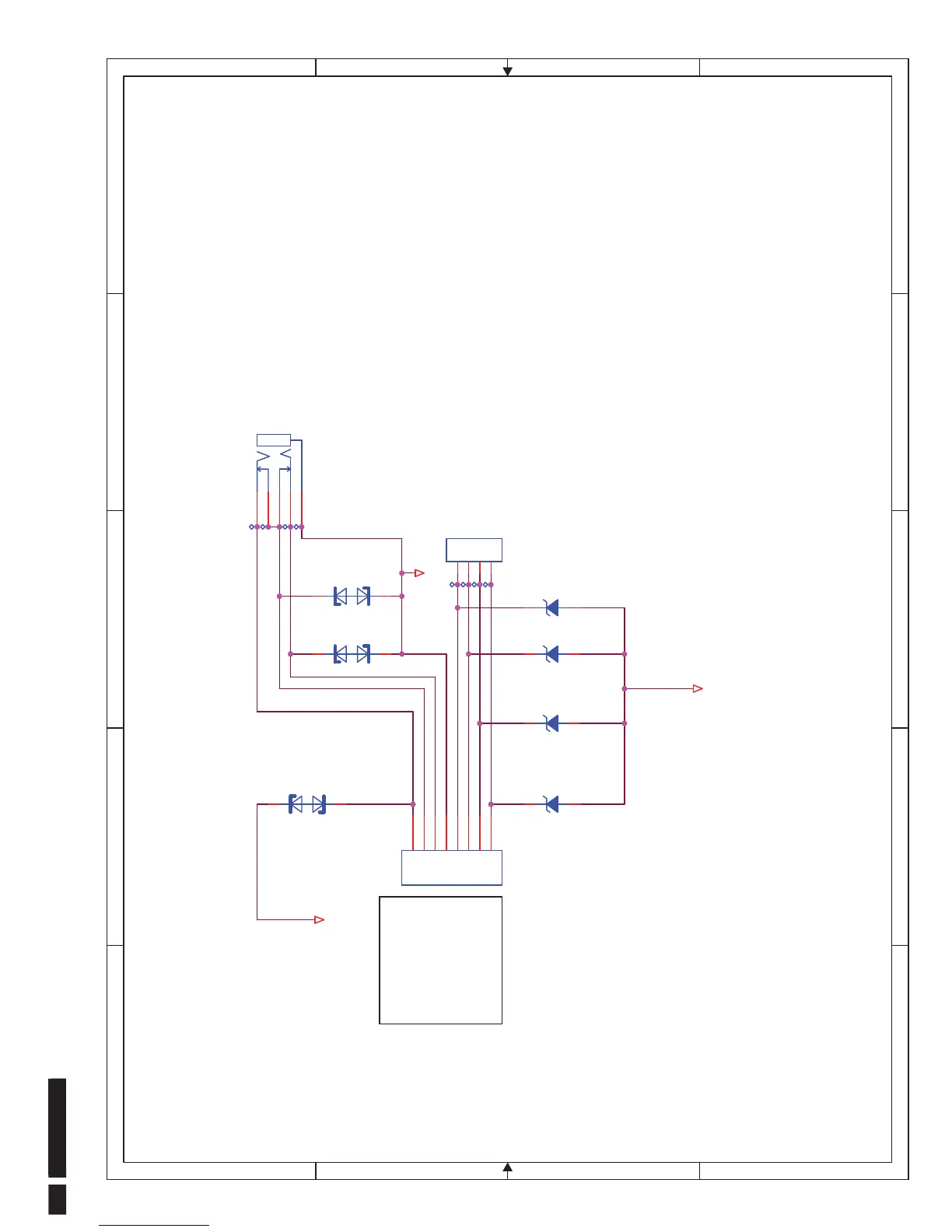

USB Diagram & C .B.A
50 220BL2 LCD
