35
English
EN

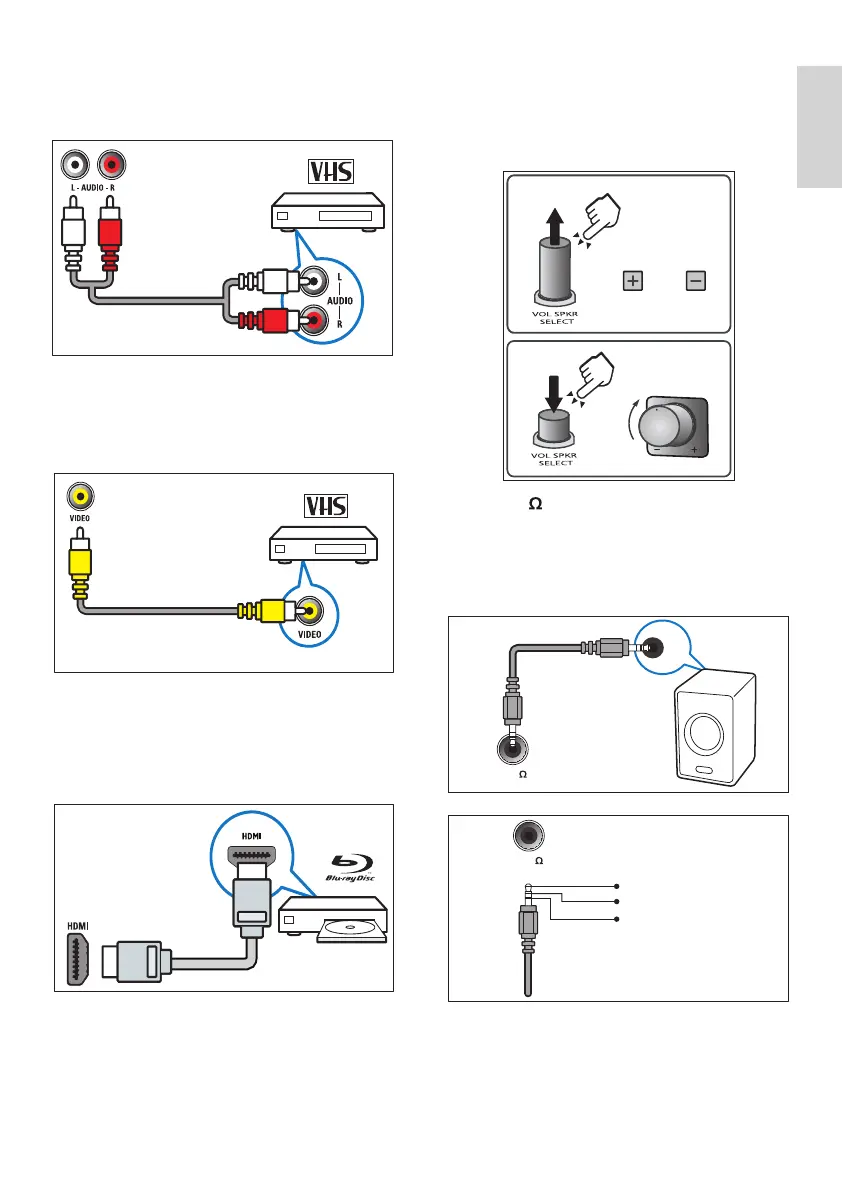

f VOL SPKR SELECT
Selects between rotary and tact to
operate the volume controller connected
with “EXT SPKR VOL CRTL”.
g 2W 8 EXT SPKR OUT
Audio output to a bathroom speaker via
a stereo jack. (Before you connect the
bathroom speaker, make sure to turn off
the TV mains power.)
2W 8
EXT. SPKR. OUT
NC
Speaker Terminal “-”
Speaker Terminal “+”
Rotary Type
VOL
Tact Type
AWG < 16
2W 8
EXT. SPKR. OUT
c AUDIO L/R
Audio input from analog devices
connected to VIDEO.
d VIDEO
Composite video input from analog
devices such as VCRs.
e HDMI
Digital audio and video input from high-
denition digital devices such as Blu-ray
players.
