32 EN
b SPDIF OUT
Digital audio output to home theaters
and other digital audio systems.
c SERIAL EXPRESS
For Serial Express communication and
use by service personnel.
SERIAL
EXPRESS
RC_IR_OUT
RX TX GND ITV_VDD (5V)
d TV ANTENNA
Signal input from an antenna, cable or
satellite.
SPDIF OUT

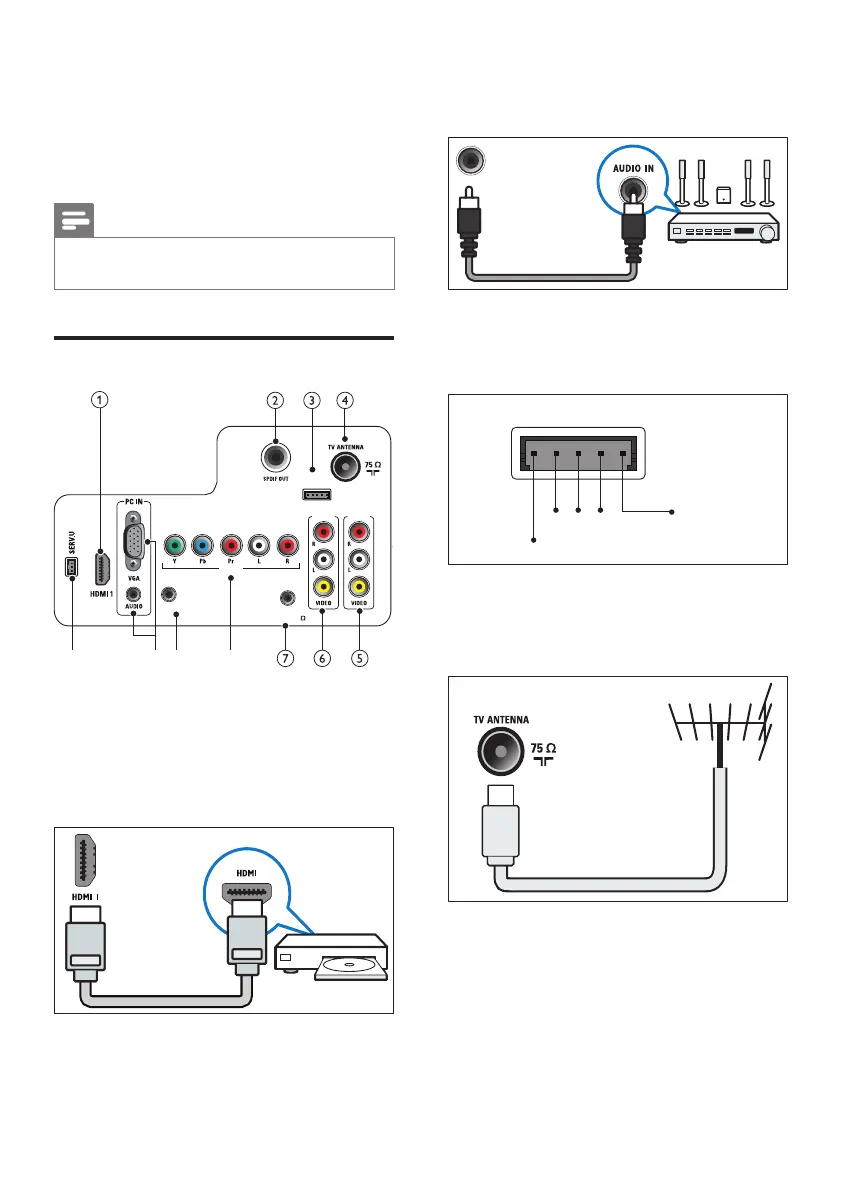

8 Connect devices
This section describes how to connect devices
with different connectors.
Note
• You can use different types of connectors to
connect a device to your TV.
Back connectors
a HDMI 1
Digital audio and video input from high-
denition digital devices such as Blu-ray
players.
Connections via DVI require an additional
audio cable.
CVI
SERIAL
EXPRESS
AV-OUT AV-IN
IR LINK
BATHROOM
SPEAKER 8
hi
jk
