Philips 32PFL3008D/78 - Wiring diagram 3000 series 42-46

Block Diagrams
EN 35TPS10.1L LA 9.
2013-Apr-26
back to
div.table
9.3 Wiring diagram 3000 series 42"-46"
19500_402_130412.eps
130412

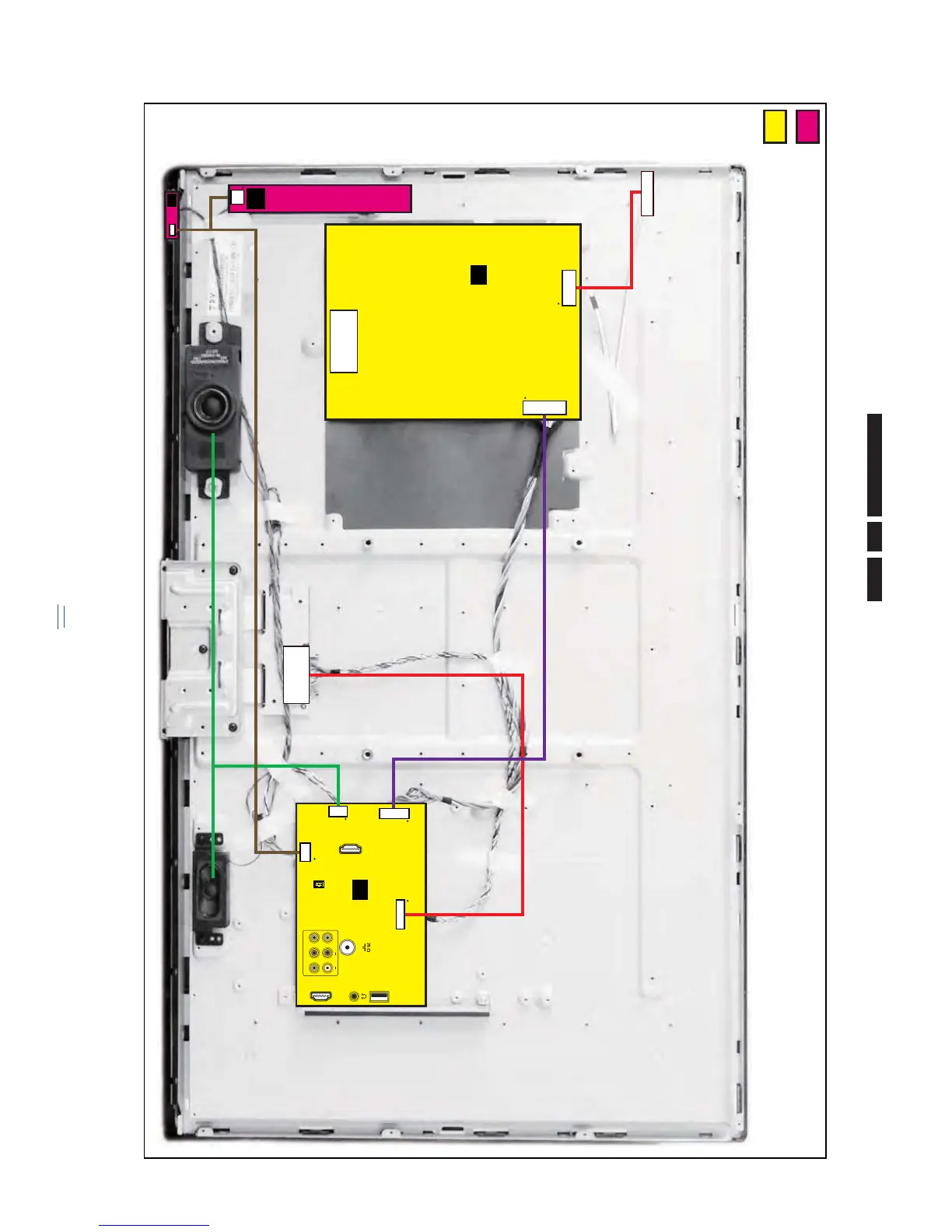

WIRING DIAGRAM 42"-46" (3000 series)
Board Level Repair
Component Level Repair Only for authorized workshops
See note in Chapter 7 about cable position numbers
KEYBOARD CONTROL
(1057)
E
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
J
LOUDSPEAKER
(1185)
LOUDSPEAKER
LOUDSPEAKER
(1185)(1185)
LOUDSPEAKER
(1185)
SSB (1053)
B
LN
CN9902
MAIN POWER SUPPLY (1054)
A
13P
42P
IR/LED BOARD (1056)
6P
3P
CN016
13P
4P
HDMI 2
ARC
USB
TV ANTENNA
YPr Pb
CVBS R
L
HDMI
1
SERV.U
AUDIO
TO PANEL
12P
CN8501
CN403
TO PANEL
CN701
CN9101
CN601
CN201
12P
CN401
