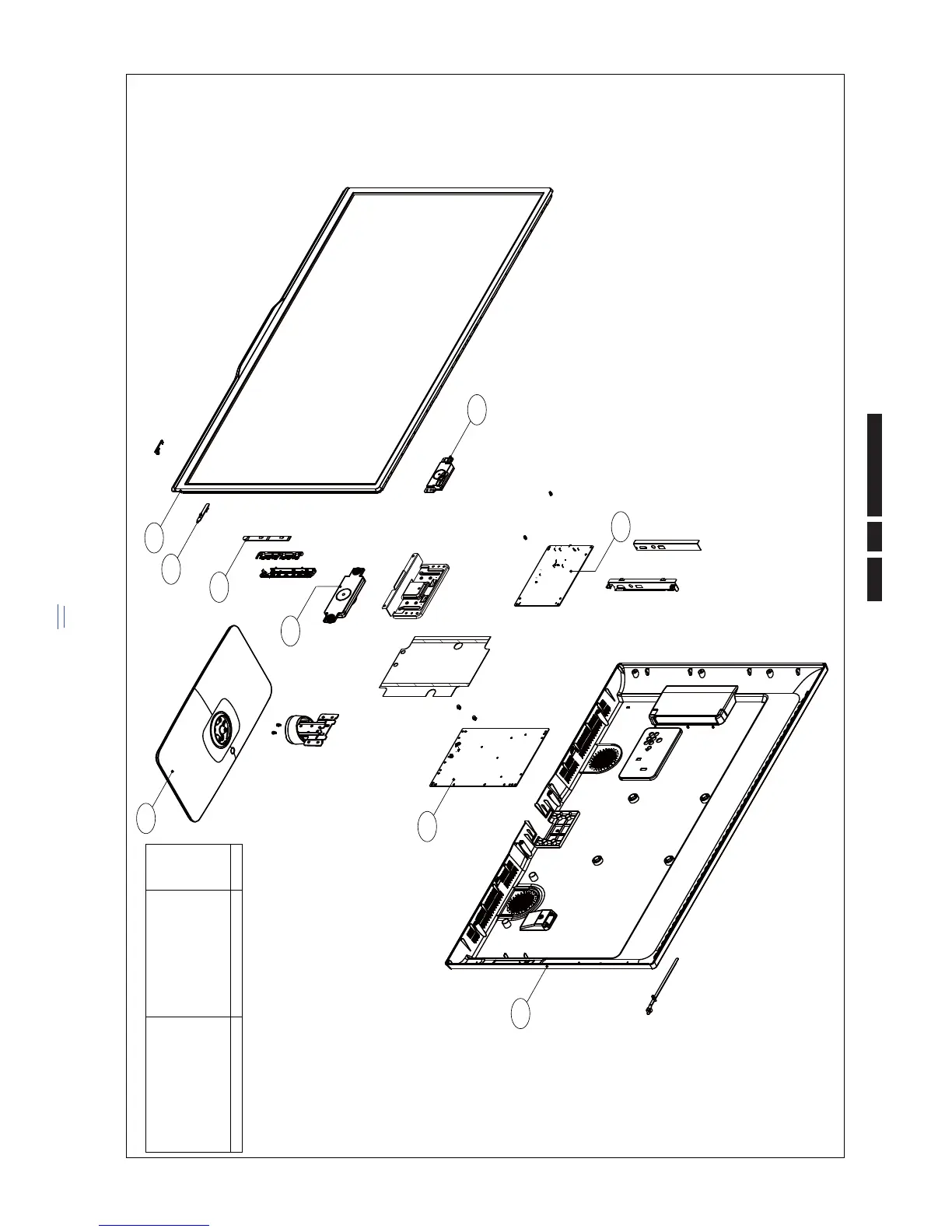

11.3 3000 series 42"-46"
19500_802_130409.eps
130409
3000 series 42"-46"
Pos No. Description Remarks
0041 Rear cover
0051 Base 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1185 Speakers
FOR ELECTRICAL PARTS/ASSEMBLIESSEE WIRING DIAGRAM CHAPTER 9
1185
1053
1185
1050
0051
0041
1054
1057
1056
