Philips 32PFL3008D/78 - Mechanical Instructions

Mechanical Instructions
EN 9TPS10.1L LA 4.
2013-Apr-26
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

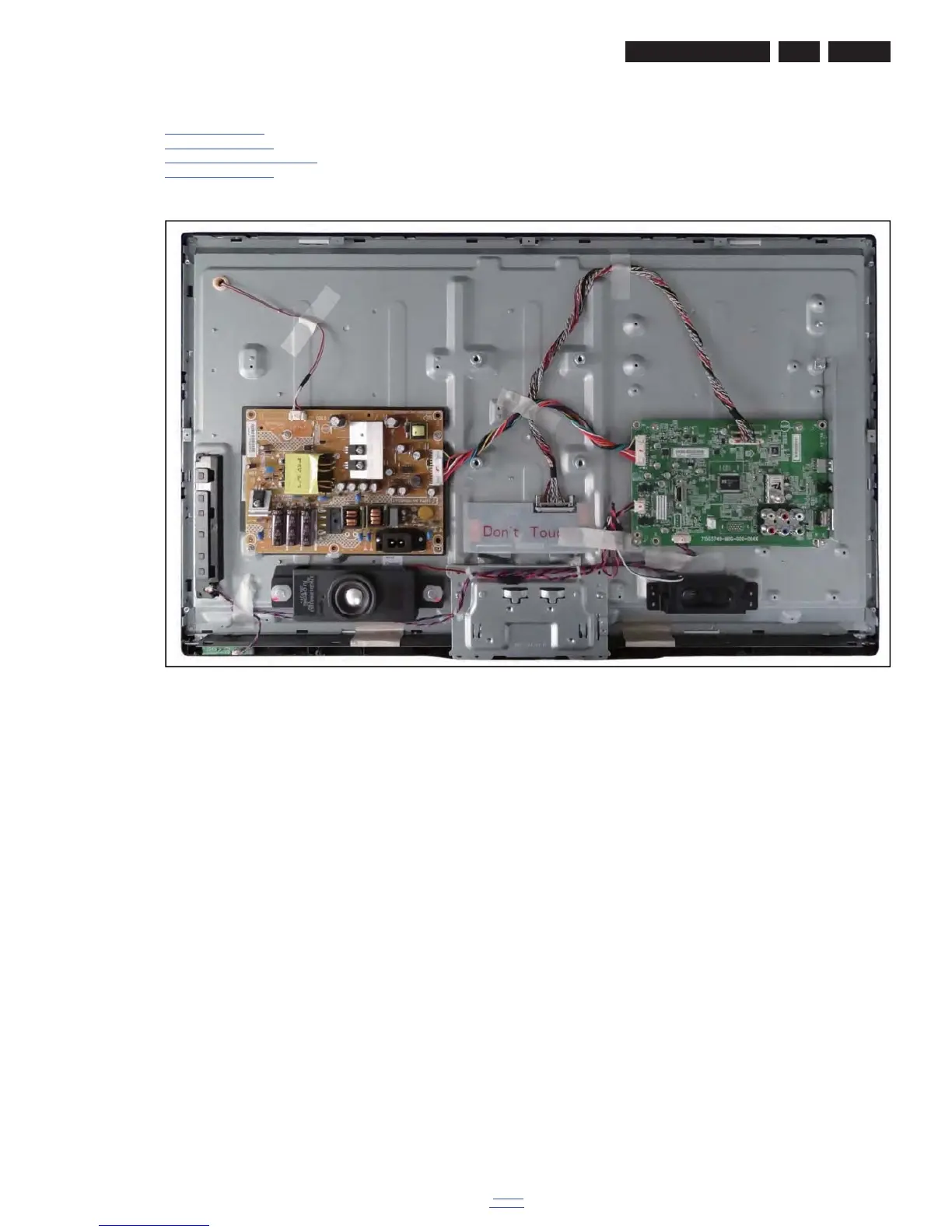

Figure 4-1 Cable dressing (32" 3000 series)
19500_100_130411.eps
130411
