Philips 32PFL3008D/78 - Block diagram 3000 series

EN 36TPS10.1L LA 9.
Block Diagrams
2013-Apr-26
back to
div.table

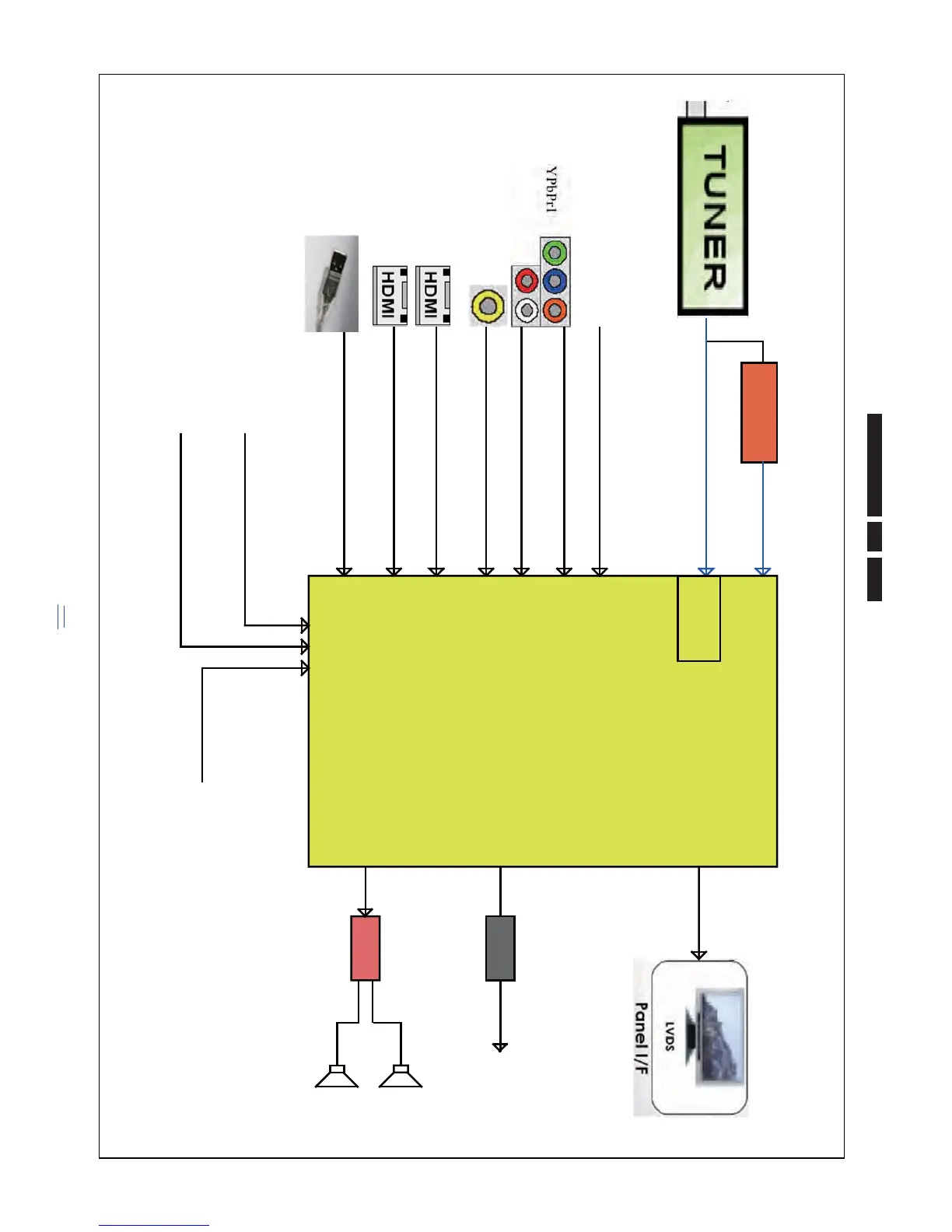

9.4 Block diagram 3000 series
19500_403_130408.eps
130408
With ARC
YPbPr
CVBS
Series TSSingle terminal silicon tuner
(LG TDST-H020F)
Analog IF+/-
LVDS
Headphone AMP
AUDIO AMP
L/R
5W SPK 5W SPK
R L
KeyPad
Remote Control
USB
L/R
ATV DEMOD
UART
MST6931XP
Headphone
APA2176A
TI 31100
DTV DEMOD MSB1400
