Philips 32PFL3008D/78 - Page 44

EN 44TPS10.1L LA 10.
Circuit Diagrams and PWB Layouts
2013-Apr-26
back to
div.table

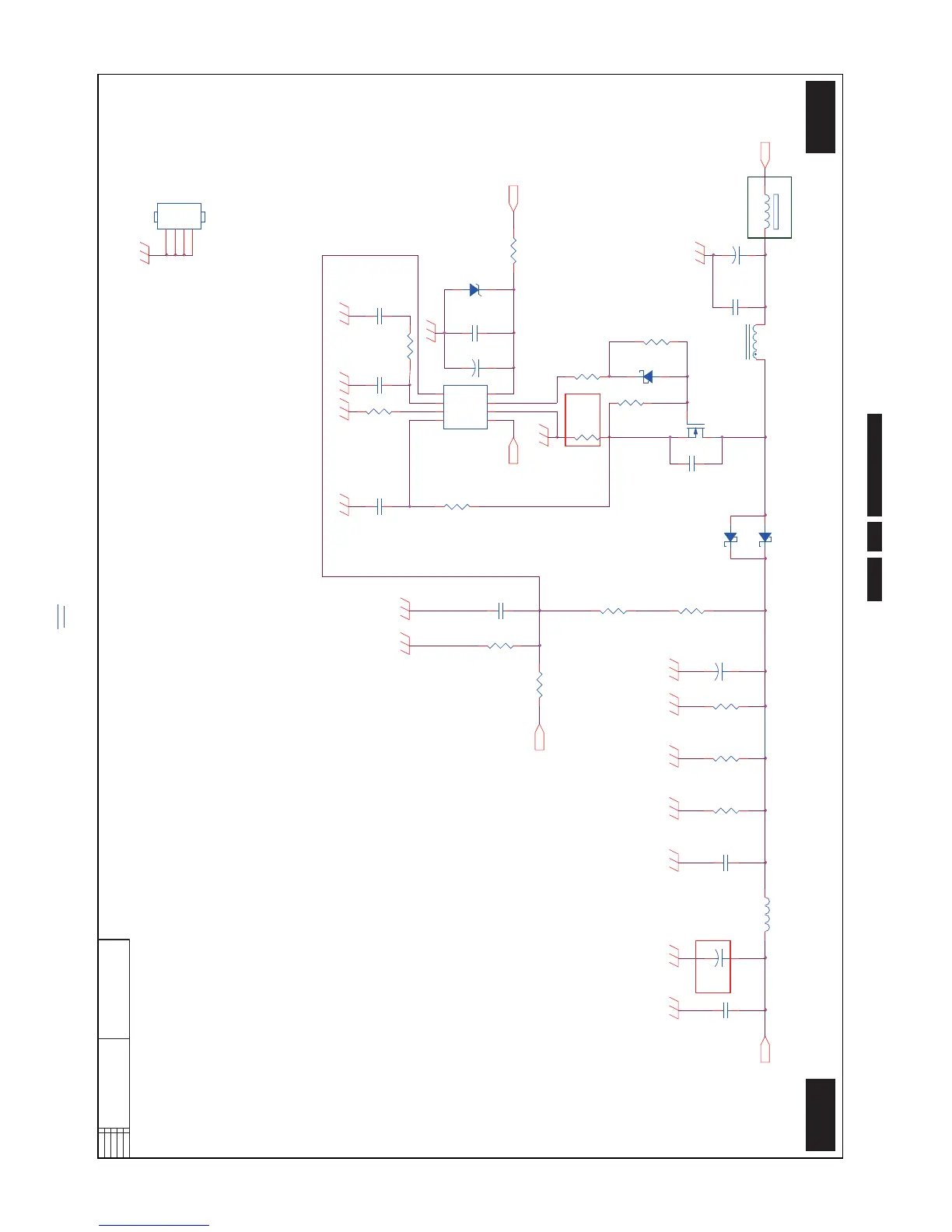

10-2-4 LED Driver D2D
19430_507_130114.eps
130114
LED Driver D2D
A04 A04
2013-01-02
A
715G5792
LED Driver D2D
IC8103 PF7900S
FB
1
GM
2
RT
3
CS
4
DIM
5
GND
6
OUT
7
VCC
8
D8118
RB160M
12
VLED+24VS
C8112 NC
+
C8101
330UF 35V
L8102 3UH
+
C8118
47UF 100V
C8114
NC/1000pF 630V
FB8101
127R
1 2
C8115
NC/1000pF 630V
Q8101
AOTF4126
R8148
100K 1/8W 1%
R8162
1K 1/8W 1%
R8157
10K 1/8W 1%
C8102
100N 50V
R8145
820K 1%
L8101
33uH
8
1
DIM_IN
C8111
100N 50V
+
C8117
220UF 100V
HS8101
HEAT SINK
1 2 3 4
R8147
750K 1%
R8176
0R05 1/4W
ZD8103
NC/BZT52-B13
1 2
R8141 120KOHM +-1% 1/8W
R8144 100K 1/8W 1%
R8163 200K 1/8W 1%
R8158
22OHM +-5% 1/8W
C8113 1N 50V
R8154 100K
R8155 100K
R8156
100K
D8121
SR510-22-NC
1 2
LED-COMP
+
C8121
22UF 50V
+12V
C8119
100N 50V
C8106
NC
R8161
10 OHM
D8120
SR510-22
1 2
C8105 1N 50V
R8175 0.03R
