Mechanical Instructions
EN 14 L11M1.1L LA4.
2011-Jun-24
back to
div. table
4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.3 Assy/Panel Removal (Thriller styling;
xxPFL3x06D/xx)
Instructions below apply to the 40PFL3606D/78, but will be
similar for other models.
4.3.1 Rear Cover

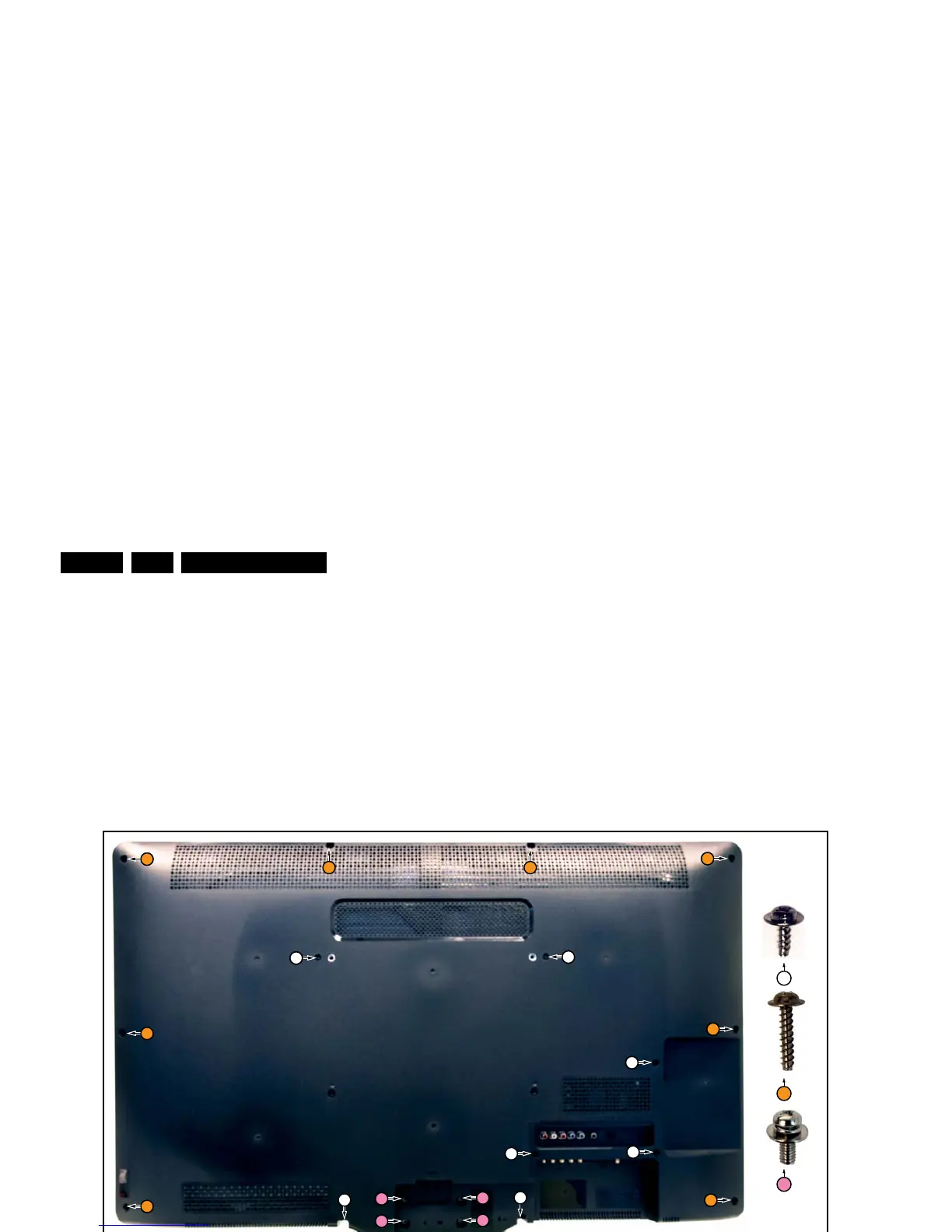

Figure 4-5 Rear cover removal (40")
Warning: Disconnect the mains power cord before removing
the rear cover.
See Figure 4-5
.
1. Remove fixation screws [2] and [3] that secure the rear
cover. It is not necessary to remove the stand first [1].
2. Lift the rear cover from the TV. Make sure that wires and
flat foils are not damaged while lifting the rear cover from
the set.
3
2
1
19130_004_110426.eps
110426
3
3
2 2
3
2
2
3
3
3
3
2
1
1
2
32
32
1
1
3
