Circuit Descriptions
EN 35L11M1.1L LA 7.
2011-Jun-24
back to
div. table
• SIDE_HDMI_HPD1 and HDMI_HPD2: Signal to initiate
reading of the TV EDID data by the source device.
• I2C: The EDID data reading and the HDCP authentication
process runs via I2C.
• CEC: Signal direct connected between inputs and uP.
• EDID_WC: Signal used to disable the write protect pin of
the EEPROM. When updating, the program will temporarily
pull this pin “LOW” before writing new data.
7.5.2 Inputs: USB
In this chassis, the main Mediatek MT5363 SoC has an on-chip
USB processor.
Refer to Figure 7-13
for the implementation.

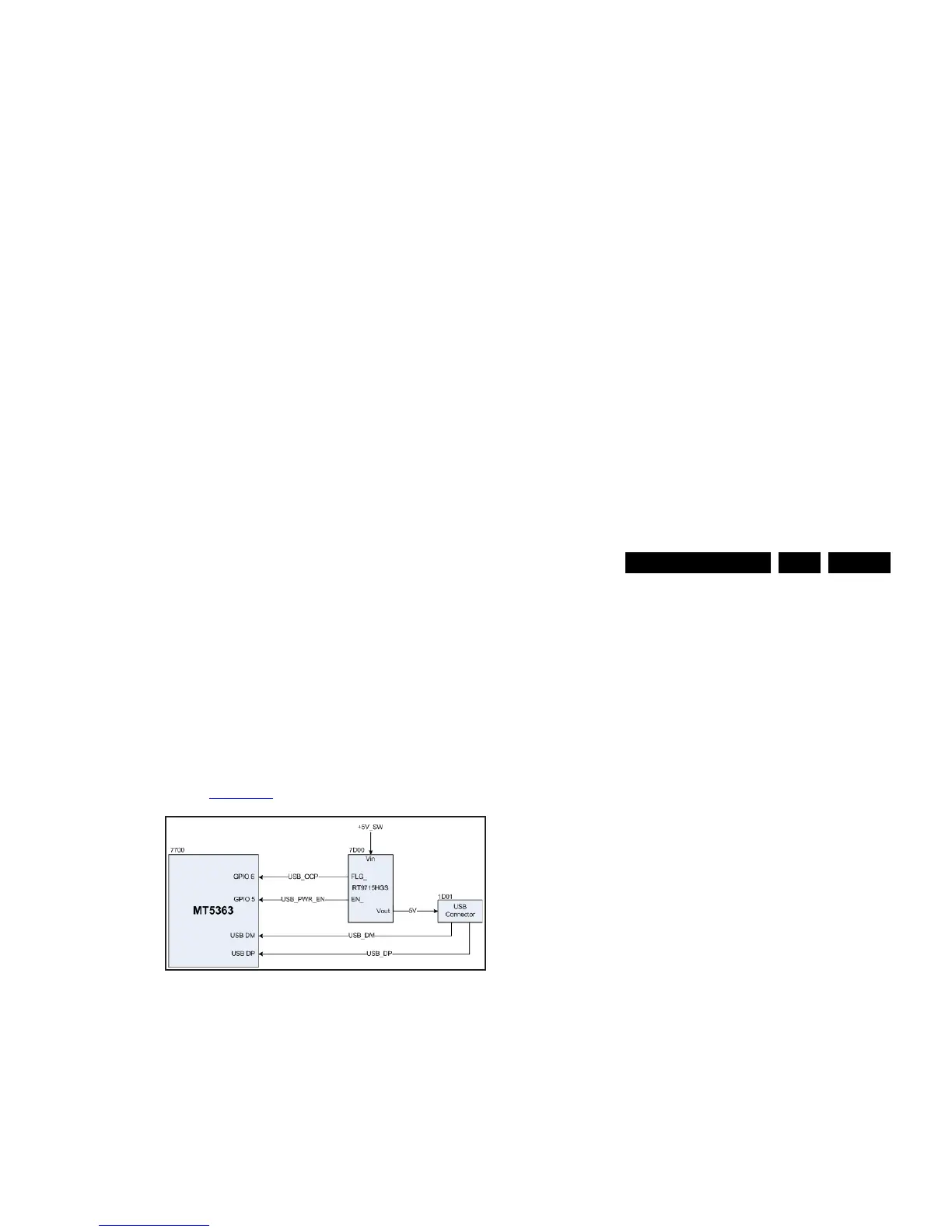

Figure 7-13 USB implementation
