Technical Specs, Diversity, and Connections
EN 4 TPM8.31A LA2.
2012-Jun-08
back to
div. table
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 -+5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
7 - HDMI2: Digital Video, Digital Audio - In
See 6 - HDMI1: Digital Video, Digital Audio - In
2.2.2 Rear Connections
8 - Cinch: Video CVBS - Out
Ye - Video CVBS 1 V
PP
/ 75 kq
9 - Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 kq
10 - Cinch: Video YPbPr - In, Audio - In
Gn - Video - Y 1 V
PP
/ 75 W jq
Bu - Video - Pb 0.7 V
PP
/ 75 jq
Rd - Video - Pr 0.7 V
PP
/ 75 jq
Wh - Audio - L 0.5 V
RMS
/ 10 k jq
Rd -Audio - R 0.5 V
RMS
/ 10 k jq
11 - Service / UART
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
12 - PC IN:VGA

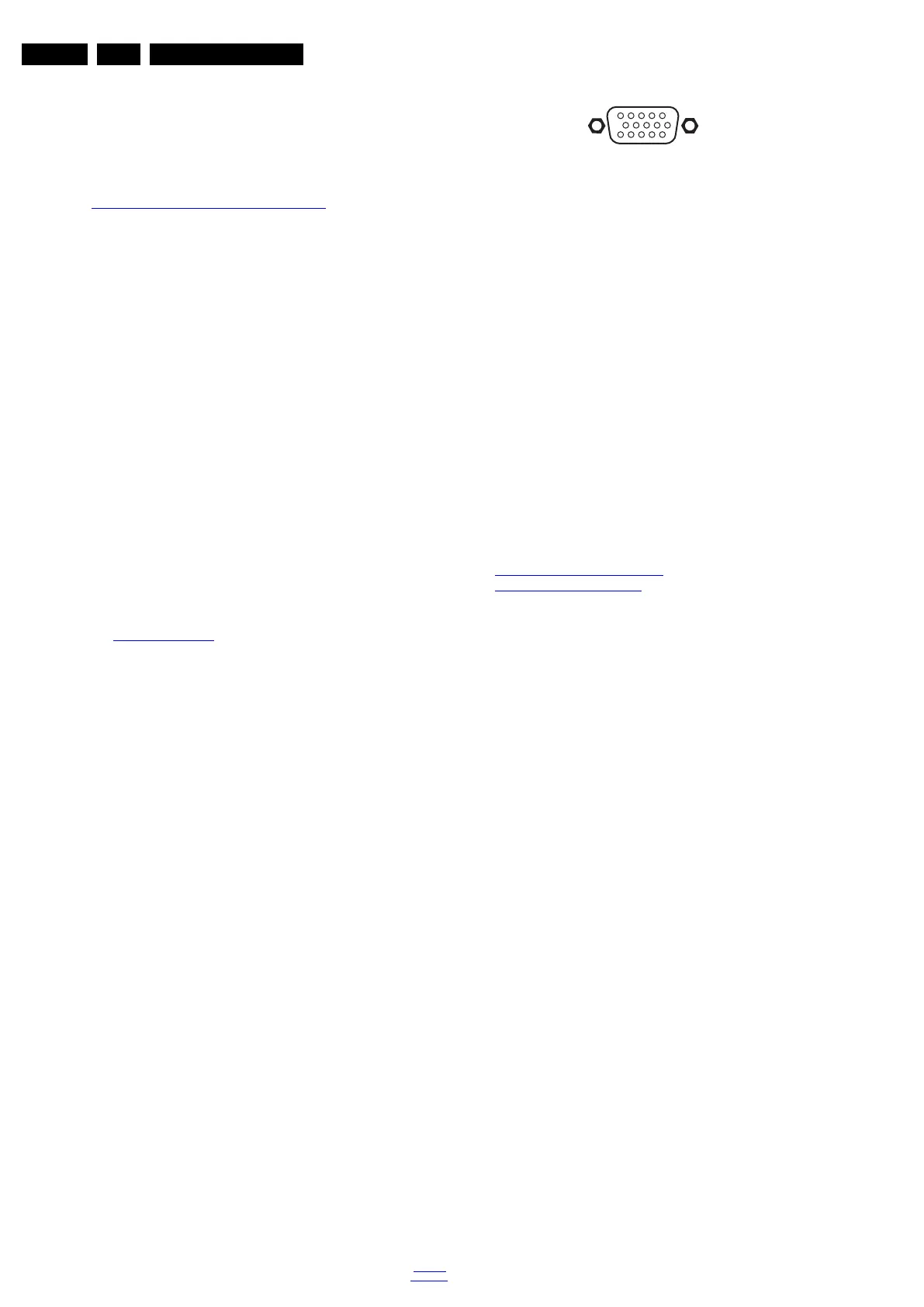

Figure 2-4 VGA connector
1 - Video Red 0.7 V
PP
/ 75 W j
2 - Video Green 0.7 V
PP
/ 75 W j
3 - Video Blue 0.7 V
PP
/ 75 W j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
13 - Audio - In: Left / Right, VGA
Gn - Audio L/R in 0.5 V
RMS
/ 10 k jq
2.3 Directions for Use
Directions for use can be downloaded from the following
websites:
http://www.philips.com/support
http://www.p4c.philips.com
2.4 Chassis Overview
Refer to 9. Block Diagrams for PWB/CBA locations.
1
6
10
11
5
15
10000_002_090121.eps
090127
