Circuit Diagrams and PWB Layouts
EN 71TPM8.31A LA 10.
2012-Jun-08
back to
div. table
10-4-2 IR/LED Board layout
19320_512_120608.eps
120530
2012-02-01
B
715G5471
IR/LED board
layout top/bottom
C201
R201
R202
R203
R1
R2
R3
R4
CN201
LED201
U201

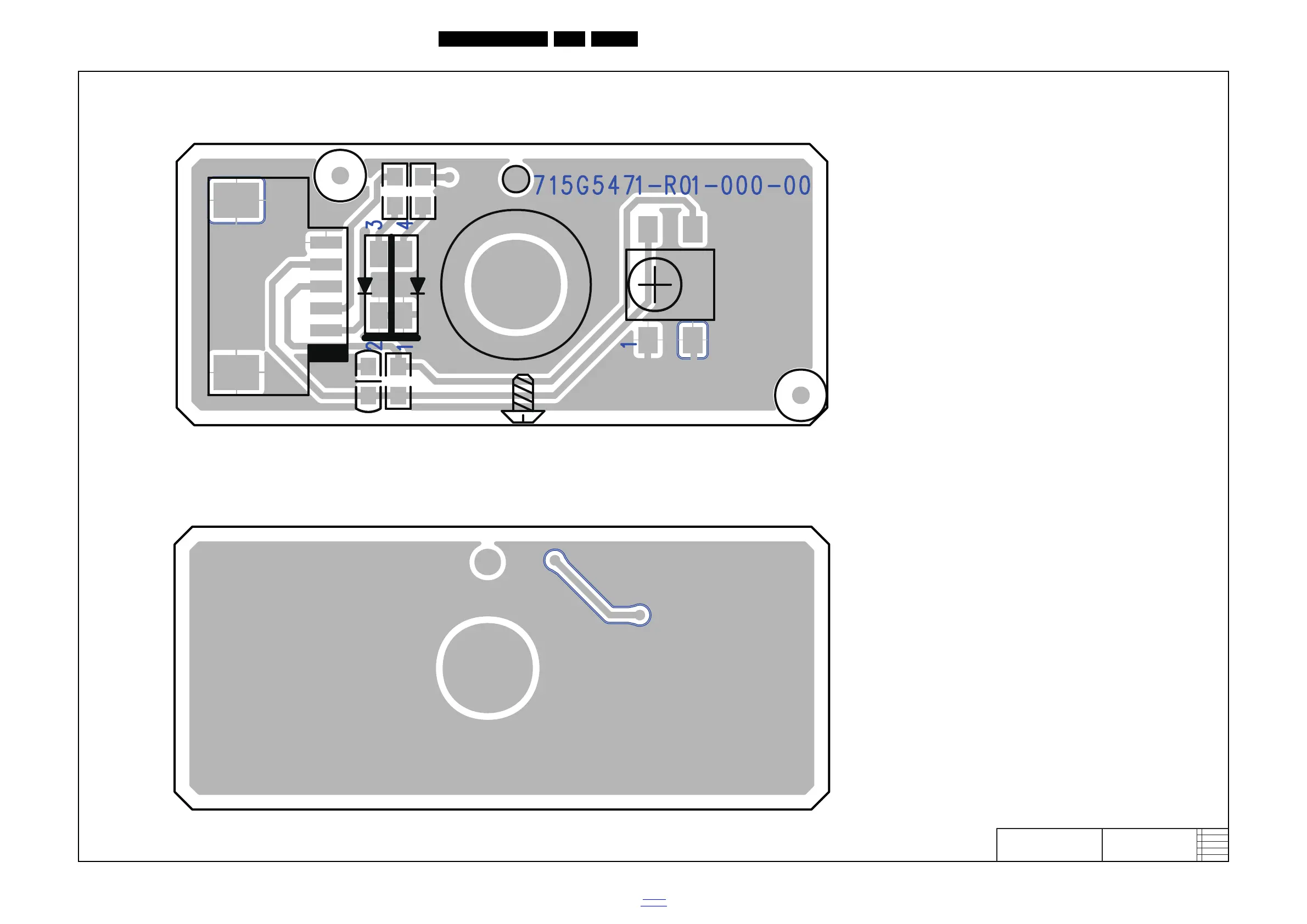

Layout IR/LED Board (Top Side)
Layout IR/LED Board (Bottom Side)
